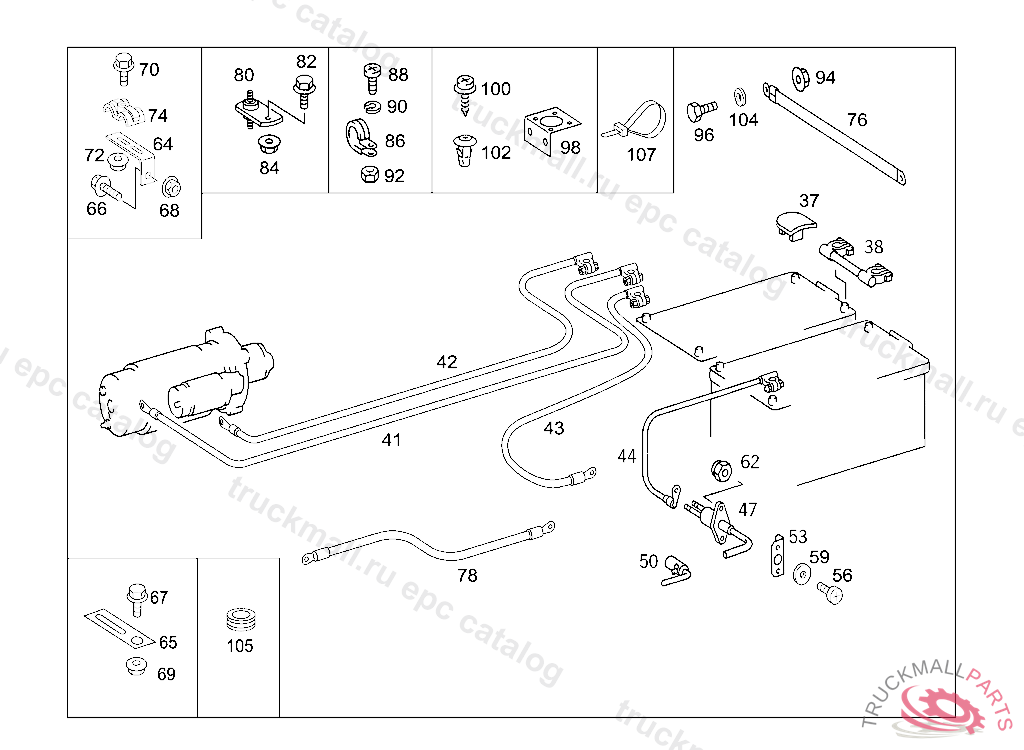

Поз.
Артикул
Описание
38
POSITIVE CABLE FROM BATTERY I TO BATTERY II
41
POSITIVE CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
42
44
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
47
SWITCH BATTERY CUT-OFF
47
SWITCH BATTERY CUT-OFF
50
KEY
56
SCREW MODULE TO HOUSING
59
WASHER , Replaced By: N009021006208
62
NUT PUMP TO BRACKET
64
BRACKET , Replaced By: A3464296040
65
BRACKET AT CROSS MEMBER
66
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
67
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
69
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
70
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
72
NUT BRACKET TO FIRE WALL
74
CLAMP ELECTRIC CABLE MOUNTING
78
78
80
CONNECTOR GROUND CABLE TO BATTERY FRAME
82
HEXAGON HEAD BOLT RELAY TO BRACKET
82
SCREW BRACKET AND CLAMP M6X20
84
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
84
NUT BRACKET TO FIRE WALL
94
NUT , Replaced By: N913023010002
96
SCREW , Replaced By: N304017010040
96
STUD. SCREW GROUND CONNECTION
98
BRACKET DIAGNOSIS PLUG SOCKET
100
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
102
TREENAIL FUSE BOX
104
WASHER GROUND CABLE
105
GROMMET BATTERY CABLE TO SIDE MEMBER,LEFT
105
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
107
LOOM TIE LINE TO BRACKET 508 MM
107
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
999
NUT
999
POSITIVE CABLE
999
COVERING BLACK JEI 28SP9969B
999
COVERING RED JEI 28SP9969R
