Поз.
Артикул
Описание
5

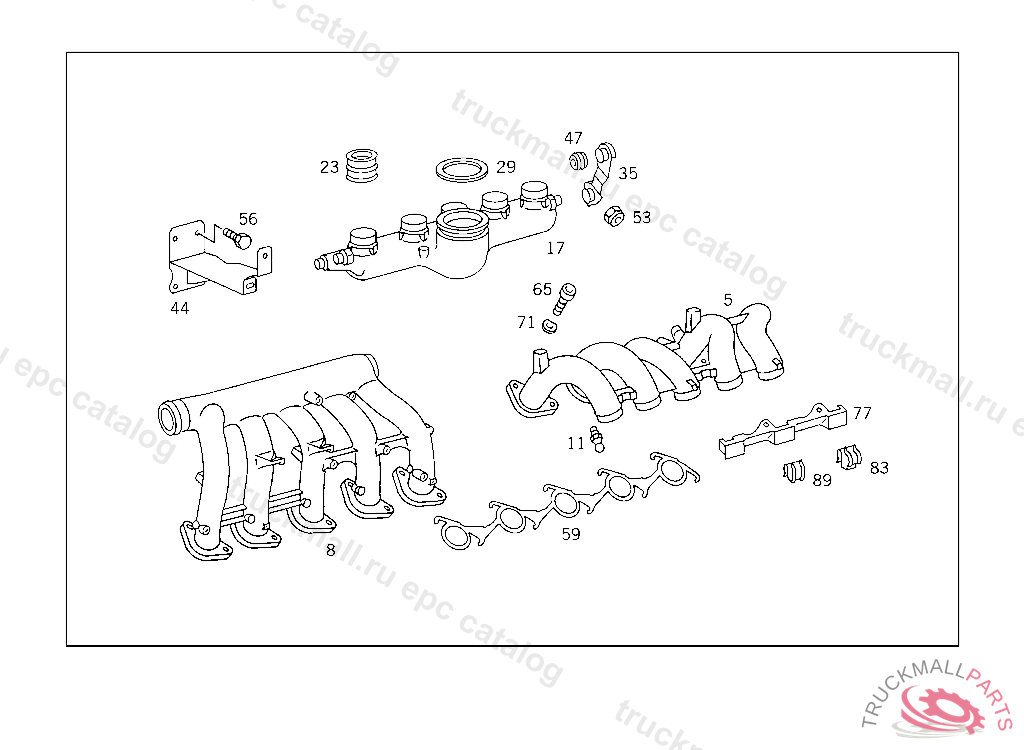

INTAKE MANIFOLD
11
BALL PIVOT
17
HOUSING AIR DUCT
23
BOOT AIR CLEANER BOWL TO INTAKE PIPE
35
BRACKET AIR DUCT TO OIL FILTER
44
BRACKET AIR DUCT
56
SCREW COVER PLATE TO COVER PLATE M 6 X 10
56
SCREW , Replaced By: N304017006034
56
SCREW , Replaced By: N304017006016
56
SCREW PUMP TO BRACKET
59
GASKET INTAKE MANIFOLD TO CYLINDER HEAD, TO BE ADAPTED DURING ASSEMBLY
59
GASKET , Replaced By: A6021410580
59
GASKET , Replaced By: A6021410880
59
GASKET , Replaced By: A6031410880
65
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
71
SPRING WASHER , Replaced By: N000137008212
71
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
