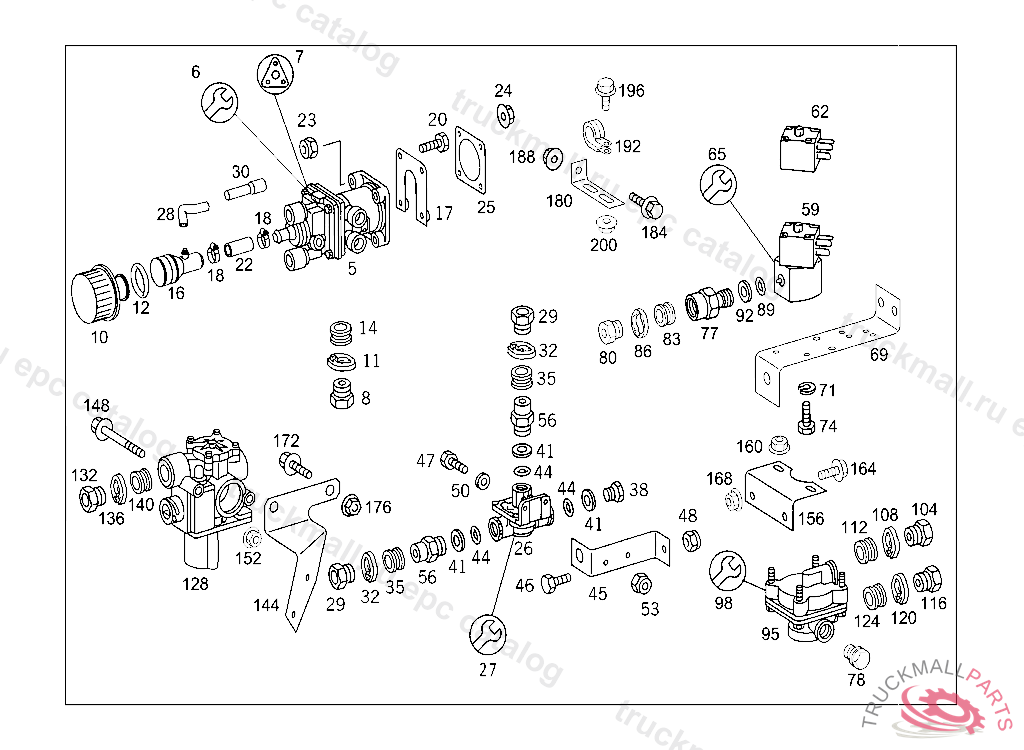

Поз.
Артикул
Описание
5
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
5
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
6
REPAIR KIT SMALL SCOPE TO 695 431 74 04
6
REPAIR KIT LARGE SCOPE TO 695 431 71 04
7
GASKET KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
8
SCREW. UNION SCREW LINE CONNECTION
10
MUFFLER VALVE BLEEDING
11
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
12
SEALING CORD SUCTION LINE TO OIL PUMP
14
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
16
T-FITTING BETWEEN THE LINES
18
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
22
HOSE PRESSURE REGULATOR,CONNECTION: "3"
24
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
25
GASKET BRAKE SHOE WITH LINING
26
VALVE (QUICK BREATHER VALVE) VARGA
26
VALVE (QUICK BREATHER VALVE) WABCO
26
VALVE , Replaced By: A6934297144
26
VALVE (QUICK BREATHER VALVE) VARGA
26
VALVE QUICK-RELEASE VALVE KNORR
27
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
28
HOSE HAND BRAKE VALVE
29
SCREW. UNION SCREW LINE CONNECTION
29
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
30
HOSE HAND BRAKE VALVE
32
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
35
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
38
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
38
SCREW PLUG
41
THRUST RING CHECK VALVE TO AIR RESERVOIR
41
THRUST RING LOCKING VALVE
44
O-RING CHECK VALVE TO AIR RESERVOIR
44
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
45
BRACKET QUICK-RELEASE VALVE
45
46
SCREW BRACKET TO BUMPER,LEFT M 10X25
47
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
47
SCREW BRACKET TO INTAKE MANIFOLD
47
SCREW , Replaced By: N910143008010
48
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
WASHER TRAILER PLUG SOCKET TO BRACKET
53
NUT HORN TO BRACKET M8
56
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
59
VALVE , Replaced By: A3869977336, +001A3454297736, +001A3509977472
62
SOLENOIDTO 386 997 73 36
65
REPAIR KITTO 388 997 88 36
69
BRACKET DISTRIBUTOR
71
LOCK WASHER T-FITTING TO BRACKET
74
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
77
FITTING LINE CONNECTION
78
SCREW PLUG AIR RESERVOIR
80
SCREW. UNION SCREW , Replaced By: A0009973734
83
SEAL RING , Replaced By: A0009940747
86
LOCK , Replaced By: A0009945448
89
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
92
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
95
VALVE (RELAY VALVE)
95
VALVE (RELAY VALVE) KNORR
98
REPAIR KIT. VALVE REPAIR KIT TO 695 429 71 44
98
VALVE. PART NAME MISSING REPAIR KIT TO A 386 429 70 44
104
SCREW. UNION SCREW , Replaced By: A0009973734
104
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
108
LOCK , Replaced By: A0009945448
112
SEAL RING , Replaced By: A0009940747
116
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
116
SCREW. UNION SCREW LINE CONNECTION
120
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
124
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
128
VALVE PRESSURE CONTROL VALVE ABS
132
SCREW. UNION SCREW LINE CONNECTION
132
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
136
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
140
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
144
144
148
SCREW , Replaced By: N910143008010
152
NUT HORN TO BRACKET M8
156
BRACKET (RELAY VALVE)
160
NUT HORN TO BRACKET M8
164
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
168
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
172
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
176
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
180
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
184
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
188
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
192
CLAMP LINES TO BRACKET
196
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
200
NUT BRACKET TO FIRE WALL
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
