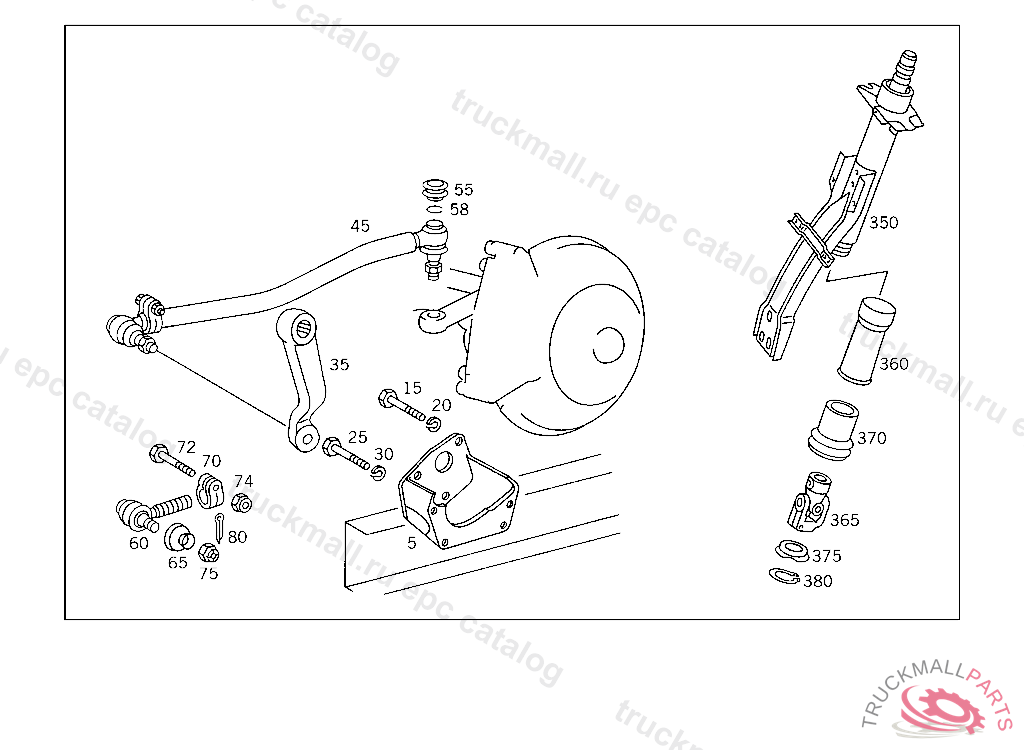

Поз.
Артикул
Описание
5
STEERING SUPPORT
15
SCREW , Replaced By: A0089908001
15
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
20
LOCK WASHER FITTING TO BRACKET
25
SCREW , Replaced By: N308676018001
30
LOCK WASHER BELL HOUSING TO TRANSMISSION
35
PITMAN ARM
45
DRAG LINKTRW
45
DRAG LINKNAKATA
55
BOOT FIXED PART OF JOINT TO 688 460 05 05,75 05,74 05,76 05
55
BOOT FIXED PART OF JOINT TO 688 460 03 05,77 05,79 05,78 05
58
RINGTO 000 463 20 96
60
DRAG LINK ENDTO 688 460 03 05,77 05,79 05
60
DRAG LINK ENDTO 688 460 05 05,75 05,74 05,76 05
65
BOOTTO 000 460 63 48
65
BOOTTO 000 460 62 48
70
CLAMP JOINT TO DRAG LINK TO 688 460 03 05,77 05, 78 05
70
CLAMPING PIECE JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
70
CLAMP JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
72
SCREW CLAMP TO DRAG LINK TO 000 463 05 17
72
SCREW TIE ROD, FROM AXLE 1 2480131 511630
74
NUT , Replaced By: N910113010003
75
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
80
COTTER PINROCKINGER TYP 260 G140
350
STEERING SHAFT , Replaced By: A6884608609, +001A3844627230
360
STEER. COLUMN JACKET TUBE STEERING SHAFT
365
UNIVERSAL JOINT UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY
365
UNIVERSAL JOINT UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY
365
UNIVERSAL JOINT UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY
370
BOOT UNIVERSAL JOINT COVERING
375
BRACKET UNIVERSAL JOINT COVERING
380
LOCK RING UNIVERSAL JOINT COVERING
999
JOINT R.H. THREAD LEMFOERDER
999
CLAMP , Replaced By: A0009953244
999
NUT STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
999
SCREW REDUCTION VALVE TO BRACKET
999
EXPANSION PLUG
999
GROMMET FOR PASSAGE OF LINE
999
BOOT UNIVERSAL JOINT COVERING, MECHANIC STEERING-762.0
999
SCREW STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
999
BOOTTO 345 330 70 03,352 330 07 03
999
UNIVERSAL JOINT STEERING SHAFT TO STEERING, MECHANIC STEERING-762.0
999
BRACKET OIL TANK, NOT USED
999
DRAG LINK , NOT USED
999
BRACKET OIL TANK, NOT USED
999
BRACKET DELIVERY AND SUCTION LINES TO CAB, NOT USED
999
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP, NOT USED
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW CLAMPING PIECE TO BRACKET M 6X40
999
SCREW , Replaced By: A0079900801
999
SCREW-IN FITTING AT PRESSURE REGULATOR
999
SEAL RING 2/2-WAY VALVE,CONNECTION: "20"
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N913004008001
