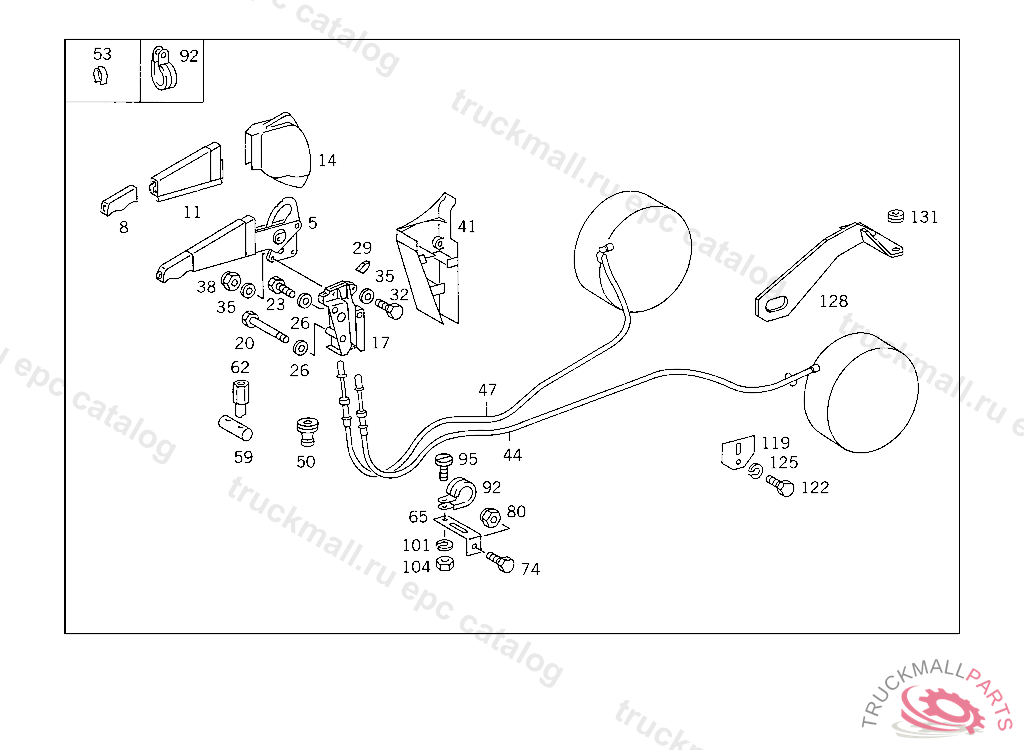

Поз.
Артикул
Описание
5
BRAKE LEVER , NO.8650I.......I.......I I II
8
HANDLE , NO.8650I.......I.......I I II .......INO.9985I.......I I II
11
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
14
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
17
CONSOLE
17
CONSOLE
20
SCREW CLUTCH TO FLYWHEEL
23
SCREW , Replaced By: N304017010002
26
WASHER CONSOLE TO CAB
29
STOP BUFFER. DAMPING RING
32
SCREW RADIATOR TO BUFFER
35
WASHER GROUND CABLE
38
NUT , Replaced By: N910113010000
41
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
44
44
BRAKE CABLE FRONT LEFT
44
BRAKE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.B 969878, Replaced By: A6884207685
44
BRAKE CABLE FRONT LEFT
47
47
BRAKE CABLE FRONT RIGHT
47
BRAKE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.B 969878, Replaced By: A6884207785
47
BRAKE CABLE FRONT RIGHT
50
GROMMET
53
SPRING BRAKE CABLE
59
PIN BRAKE CABLE TO BRAKE LEVER
62
NUT BRAKE CABLE TO BRAKE LEVER
65
BRACKET , Replaced By: A3184280240
74
SCREW STEERING SHAFT BEARING TO CAB M 8X20
80
NUT , Replaced By: N913004008001
92
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
95
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
101
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
104
NUT CLAMP TO BRACKET
119
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
122
SCREW BUMPER
125
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
128
BRACKET
131
GROMMET LINE THRU LEFT SIDE MEMBER
