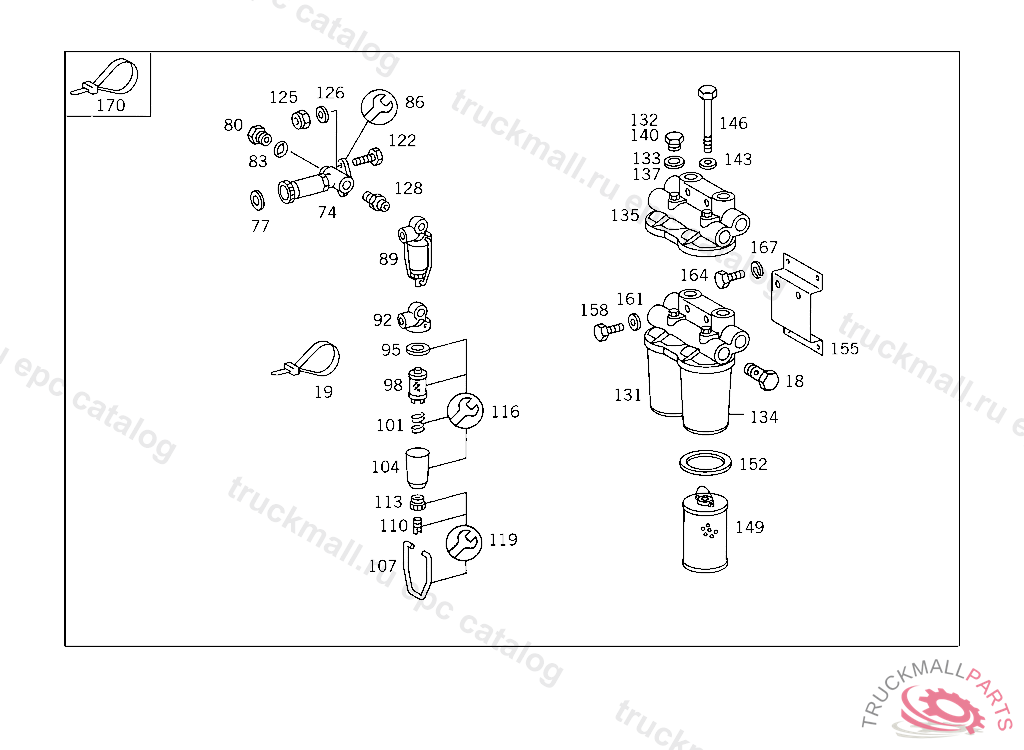

Поз.
Артикул
Описание
18
HOLLOW SCREW
18
VALVE , Replaced By: N915036010100
74
PUMP (MANUAL AUXILIARY PUMP)
77
SEAL RING
80
TRANSFER NIPPLE. FITTING
83
SEAL RING
86
REPAIR KIT VALVE
89
FUEL FILTER (MANUAL AUXILIARY PUMP)
92
CAP ,D 031294
95
SEAL RING
98
STRAINER ,D 031294
101
SPRING
104
FILTER BOWL
107
CLAMPING BRACKET FILTER HOUSING TO PUMP
110
STUD
113
NUT
116
HOUSING REPAIR KIT
119
CLAMPING BRACKET REPAIR KIT,D 031294
122
SCREW MANUAL PUMP TO BRACKET,D 031246
125
NUT , Replaced By: N913004006001
126
WASHER , Replaced By: N009021006208
128
FITTING FUEL FILTER
131
FILTER FUEL FILTER "BOSCH",D 031294
131
FILTER FUEL FILTER "HENGST",RB031294
131
FILTER , Replaced By: A0010926701
131
FILTER FUEL FILTER,932401
131
FILTER , Replaced By: A0010927001
132
SCREW PLUG
133
SEAL RING FUEL LINE TO FEED PUMP
134
FILTER BOWLTO 001 092 19 01
135
FILTER HEAD"HENGST"
137
SEAL RING
140
SCREW PLUG FUEL TANK BREATHING M 14X1.5
143
SEAL RING SCREW PLUG
146
SCREW FILTER BOWL TO FILTER HEAD M 8X90,841477 ONLY FOR USE WITH BOSCH DOUBLE FILTER
146
SCREW , Replaced By: N304014008007
149
FILTER ELEMENT , Replaced By: A3524700092
152
SEAL RING ,D 031246
155
BRACKET FUEL FILTER,D 031246
158
SCREW RADIATOR M 10X45
161
WASHER GROUND CABLE
164
SCREW SWITCH TO BRACKET 8X16
167
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
170
LOOM TIE LINE MOUNTING
170
LOOM TIE , Replaced By: A0019978490
170
LOOM TIE , Replaced By: A3459977390
170
LOOM TIE , Replaced By: A0019978390
170
LOOM TIE ELECTRIC CABLE MOUNTING
999
FILTER HEADTO 001 092 67 01,D 031246
999
REPAIR KIT , Replaced By: A0000911241
