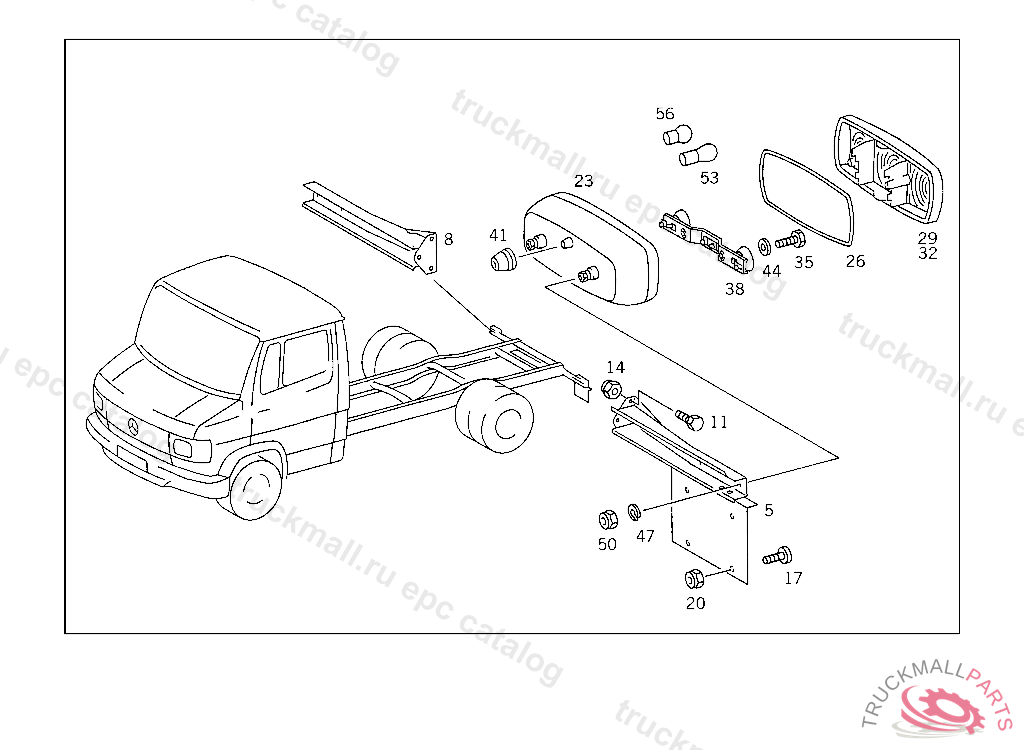

Поз.
Артикул
Описание
5
BRACKET LEFT,FOR TAIL LAMP
8
BRACKET TAIL LAMP
11
SCREW BRACKET TO BUMPER,LEFT M 10X25
14
NUT , Replaced By: N910113010000
17
SCREW BUFFER AND MOUNTING TO RAIL M 8X18
20
NUT , Replaced By: N913004008001
23
TAIL LAMP LEFT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
23
TAIL LAMP RIGHT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
26
GASKETR & S,4 300928
29
LENS WITH SCREWS
32
LENS , Replaced By: A0015445990
35
STUD TAIL LAMP TO BRACKET
38
BRACKET
41
GROMMET
44
WASHER ,4 300928
44
WASHER ,4 300928
47
LOCK WASHER TAIL LAMP TO BRACKET
50
NUT , Replaced By: N304032008006
53
BULB12 V/10 W
53
BULB TAIL LAMP
56
BULB12 V
