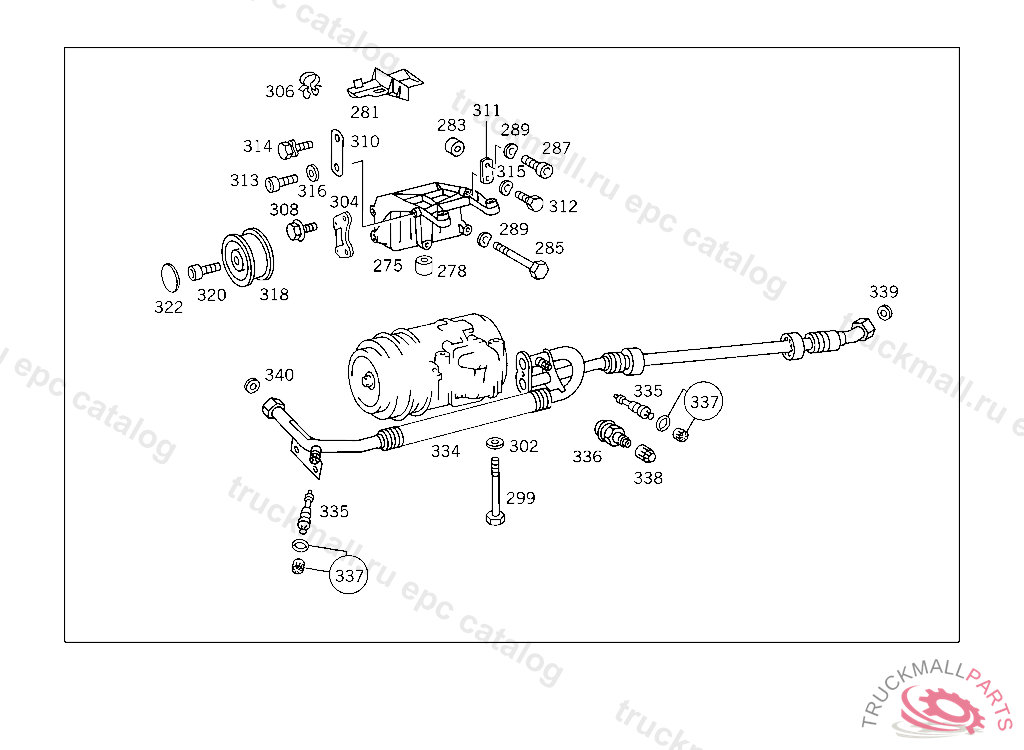

Поз.
Артикул
Описание
275
SUPPORT REFRIGERANT COMPRESSOR
278
SLEEVE
281
SCREENING
281
SCREENING , Replaced By: A6011310139
283
SPACER TUBE , Replaced By: A1801550053
283
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
285
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
285
SCREW 3/2-WAY VALVE TO BRACKET
285
SCREW , Replaced By: N304014008009
285
SCREW , Replaced By: N304014008001
287
SCREW , Replaced By: N007984008041
287
SCREWM 8X60
289
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
289
SPRING WASHER , Replaced By: N000137008212
299
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
302
WASHER EXHAUST MUFFLER TO STRAP
302
WASHER , Replaced By: N000125008443
304
BRACKET BRACKET TO TIMING CASE COVER
306
CLAMP , Replaced By: A0009956044
306
CLAMP BOWDEN CABLE TO CAB
308
COMBINATION BOLT , Replaced By: N304017006016
308
COMBINATION BOLT
310
BRACKET REFRIGERANT COMPRESSOR TO SUPPORT
311
BRACKET REFRIGERANT COMPRESSOR TO SUPPORT
312
SCREW PIPE CLAMP
312
SCREW , Replaced By: N304017008021
313
SCREW , Replaced By: N000912008200
313
SCREW , Replaced By: N000912008219
313
SCREW SPRING STOP
314
SCREW PIPE CLAMP
314
COMBINATION BOLT , Replaced By: N304017008021, +001N000137008204
315
SPRING WASHER , Replaced By: N000137008212
315
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
316
WASHER
318
BELT TIGHTENER PULLEY. BELT TIGHTENER REFRIGERANT COMPRESSOR
320
SCREW SHEAVE PULLEY TO BRACKET M8X40
320
SCREW , Replaced By: N006912008014
322
COVER TIGHTENER PULLEY SA 22400
334
SUCTION LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 603.931 10/50 001483 603.931 12/52 000539, Replaced By: A6021305757
334
SUCTION LINE REFRIGERANT LINE
334
SUCTION LINE REFRIGERANT LINE, 940 10/50,20/60 243407
335
VALVE INSERT , NOT USED
336
VALVE , NOT USED
337
CAP (PARTS KIT),CAP
338
CAP , NOT USED
339
O-RING HOSE TO EXPANSION VALVE 17X2
339
SEAL RING , Replaced By: A1249970345
339
SEAL RING , Replaced By: A1409970945
340
SEAL RING , Replaced By: A1249970545
340
SEAL RING , Replaced By: A1409970845
340
SEAL RING HOSE TO CONDENSER 14 MM
