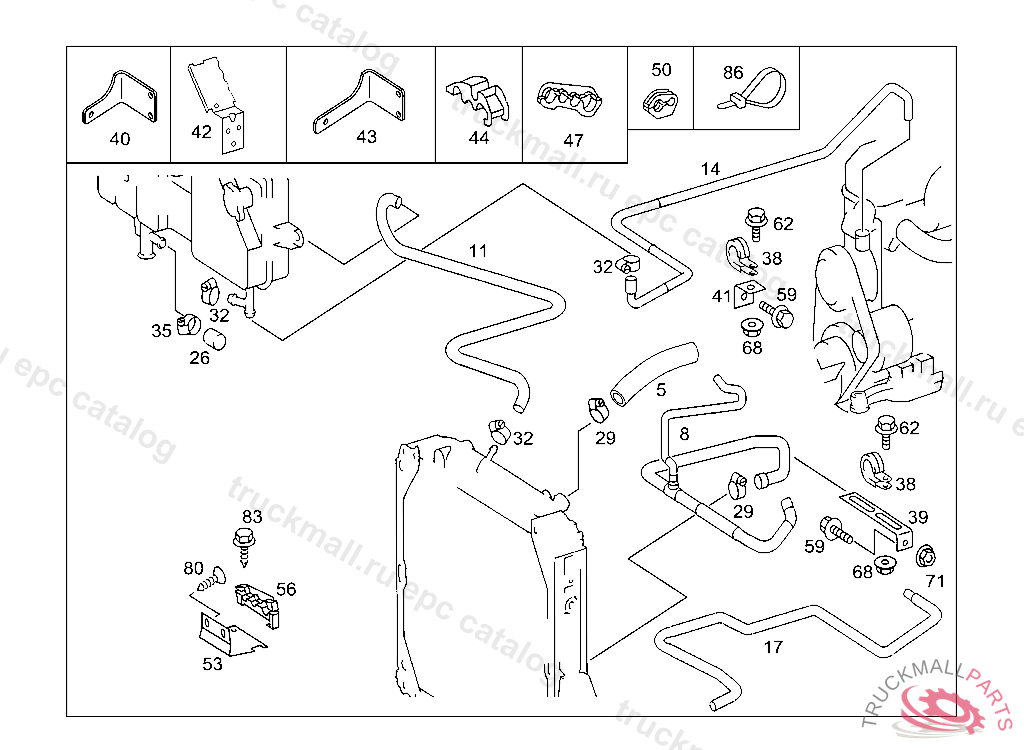

Поз.
Артикул
Описание
5
8
11
14
17
29
CLAMP , Replaced By: N000000000671
32
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
32
CLAMP HOSE TO FITTING AND TO OIL TANK
32
CLAMP ENGINE RETURN LINE 12-18X9 MM
35
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
35
CLAMP , Replaced By: N000000000667
38
CLAMP HOSE FASTENING,D 124754
38
CLAMP SUCTION LINE TO CROSS MEMBER
38
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
39
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
42
44
BRACKET COOLING WATER HOSE TO OIL FILLER PIPE BRACKET,5 509582
47
BRACKET COOLING WATER HOSES
50
BRACKET COOLING WATER HOSES
53
BRACKET HOSE TO FIRE WALL
56
BRACKET HOSE TO FIRE WALL
59
SCREW BRACKET TO CAB REAR PANEL M 8X20
62
SCREW CLAMP TO BRACKET
62
SCREW BRACKET AND CLAMP M6X20
68
NUT , Replaced By: N913023006001
71
NUT HORN TO BRACKET M8
80
SCREW BRACKET TO FIRE WALL
80
SHEET METAL SCREW BRACKET TO FIRE WALL
83
83
TAPPING SCREW. SCREW BRACKET TO FIRE WALL 6.3X25
86
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
86
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
