Главная
›
Mercedes
›
TRUCK
›
1718 AK
›
693.181
›
52 CHASSIS SHEET METAL
›
090 ENGINE OIL REFILLING
Mercedes N009021006103 - SCHEIBE DIN 9021-6,4

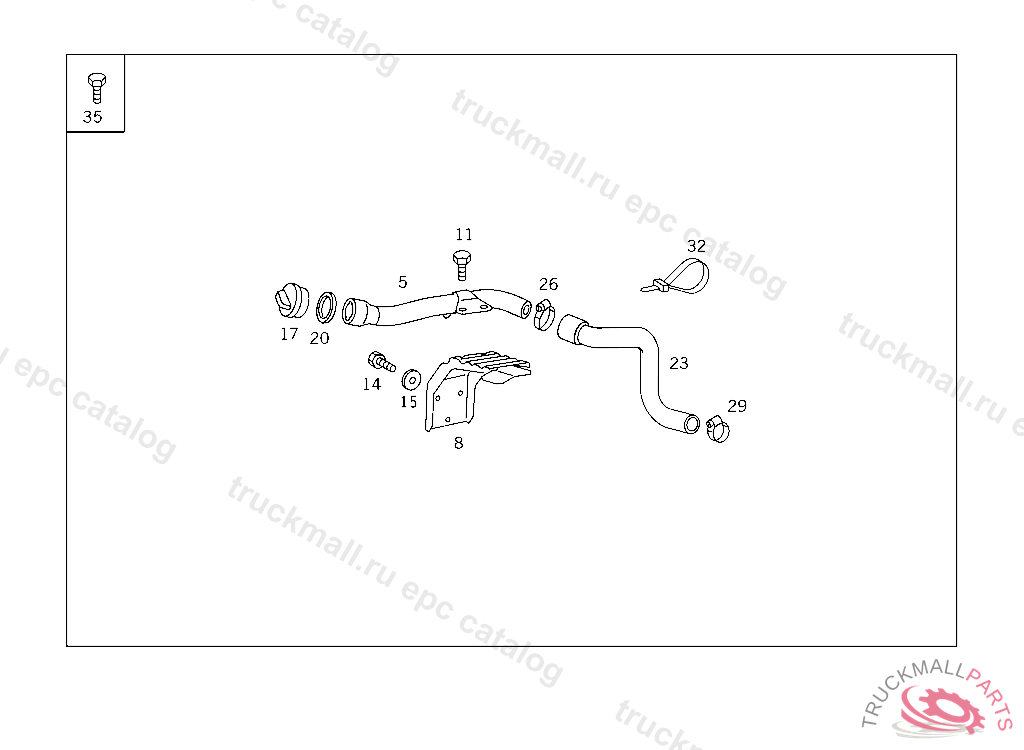

1718 AK 693.181
52 CHASSIS SHEET METAL - 090 ENGINE OIL REFILLING
Поз.
Артикул
Описание
5
A3740107864
OIL FILLER NECK
8
A3740107240
BRACKET (OIL FILLER PIPE)
11
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
11
N910105006006
SCREW BRACKET AND CLAMP M6X20
14
N910105006004
SCREW , Replaced By: N914146006102
14
A6739900132
SCREW BRACKET TO WATER RADIATOR
15
N009021006103
WASHER , Replaced By: N009021006208
17
A3440180168
COVER OIL FILLER NECK
20
A3440187080
GASKET COVER TO FITTING
20
A0000180180
GASKET , Replaced By: A1020180080
29
N916017025000
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
32
A3459977490
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
35
N000933006221
SCREW CLAMP TO BRACKET
