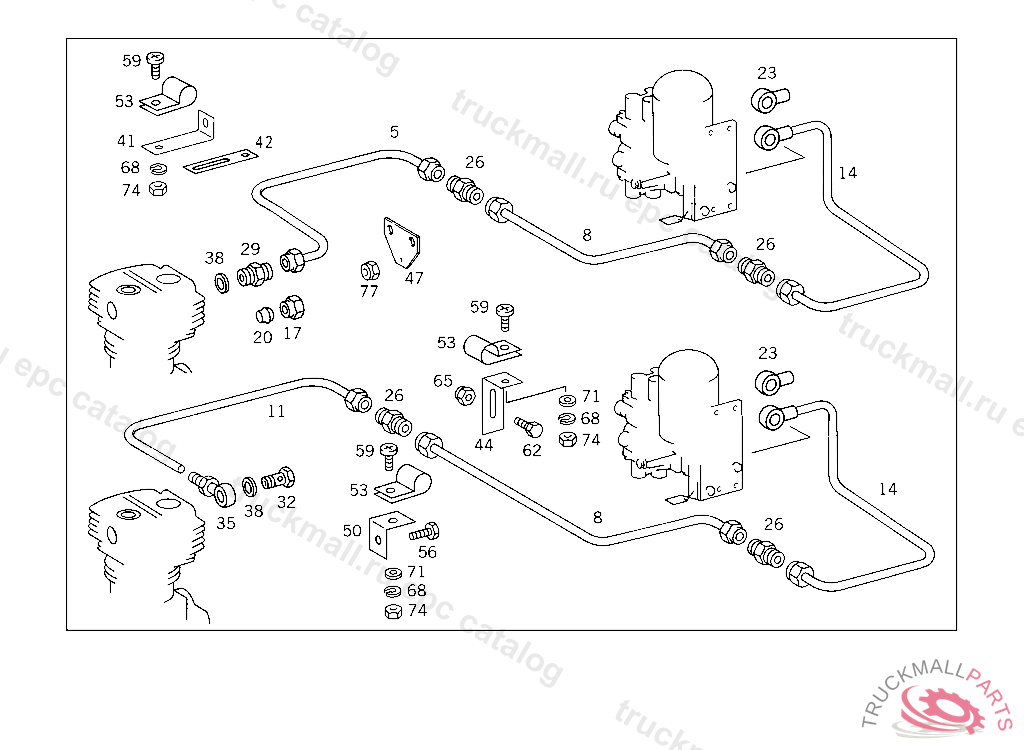

Поз.
Артикул
Описание
8
LINE FROM FITTING TO FITTING,D 149015
8
LINE FROM FITTING TO FITTING,D 149016
8
LINE , Replaced By: A6954202428
11
LINE AIR-COMPRESSOR-TO-FITTING COMPRESSED AIR LINE IN FRAME
11
LINE , Replaced By: A6954202528, +001A6654297735
11
LINE ,D 204289
14
LINE FROM FITTING TO WATER SEPARATOR
17
UNION NUT LINE CONNECTION
20
GLAND LINE CONNECTION
23
CONNECTOR
26
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
32
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
35
BANJO UNION AT AIR COMPRESSOR "2",D 204289
35
BANJO UNION
38
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
44
BRACKET TO ENGINE
44
BRACKET LEFT SIDE MEMBER,D 030553
47
BRACKET COMPRESSED AIR LINE TO ENGINE CROSS MEMBER
50
BRACKET , Replaced By: A3812950440
53
CLAMP , Replaced By: A6739950001
56
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
59
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
62
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
65
NUT ENGINE MOUNTING M8
68
LOCK WASHER CABLE TO FUSE BOX
71
WASHER PLUG SOCKET TO BRACKET
74
NUT BRACKET TO FIRE WALL
77
NUT BRACKET TO SIDE MEMBER,XB209706
999
BRAKE HOSE
999
LINE FROM FITTING TO WATER SEPARATOR,D 154571
