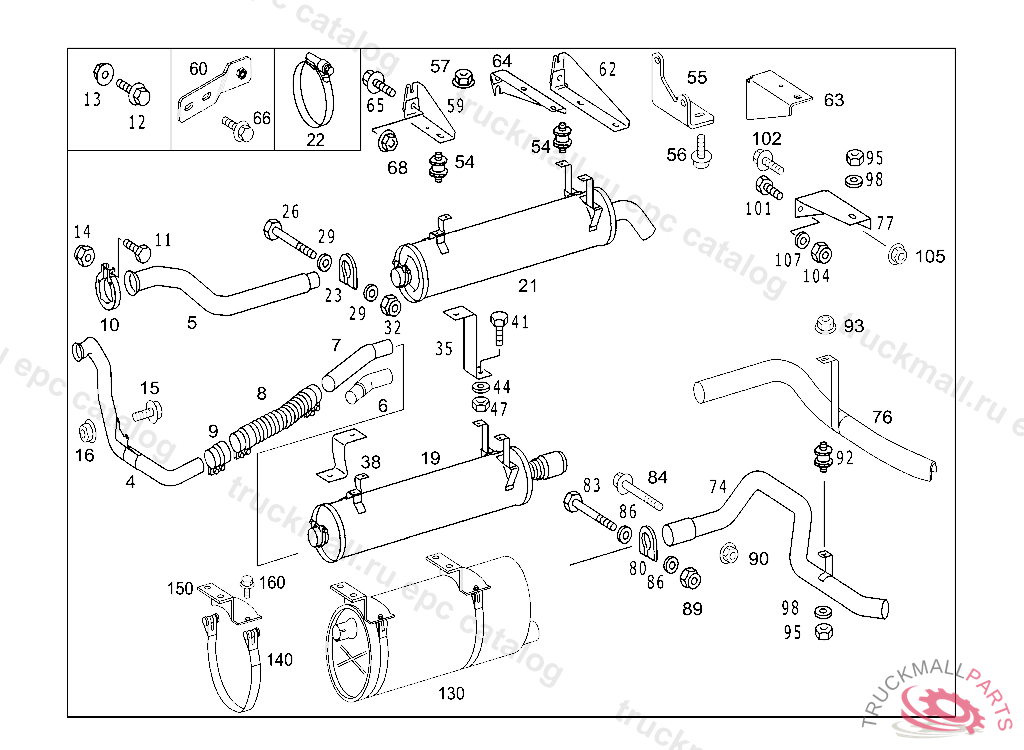

Поз.
Артикул
Описание
4
4
4
5
6
7
7
8
FLEXIBLE METAL TUBE3,0" X 334MM
8
FLEXIBLE METAL TUBE CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST, Replaced By: A9704900565
9
CLAMP
10
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
12
SCREW BRACKET TO CAB REAR PANEL M 8X20
12
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
12
SCREW , Replaced By: N910143008000
12
HEXAGON HEAD BOLTM8X130,TO A 674 492 00 40
13
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
13
NUT HORN TO BRACKET M8
15
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
15
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
16
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
16
NUT , Replaced By: N913023010002
19
19
21
21
22
CLAMP FRONT EXHAUST PIPE TO MUFFLER
23
CLAMP REAR EXHAUST PIPE TO MUFFLER
23
CLAMP EXHAUST PIPE TO MUFFLER
26
SCREW SHIFT LEVER
29
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
32
NUT , Replaced By: A1201420072
35
38
41
SCREW BRACKET TO SIDE MEMBER
44
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
44
WASHER GROUND CABLE
47
NUT , Replaced By: N913023010002
47
NUT BRACKET TO RETARDER
54
RUBBER BUFFER FUEL FILTER TO BRACKET
54
RUBBER BUFFER EXHAUST MUFFLER
55
56
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
57
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
57
NUT , Replaced By: N913023010002
59
BRACKET EXHAUST MUFFLER,FRONT
59
59
BRACKET RIGHT SIDE MEMBER
60
62
BRACKET EXHAUST MUFFLER,REAR
63
BRACKET BRACKET TO LEFT SIDE MEMBER
64
64
65
SCREW BRACKET TO SIDE MEMBER M10X35
66
SCREW STOP TO BATTERY CASE
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
NUT BRACKET TO SIDE MEMBER,XB209706
74
76
76
77
80
CLAMP REAR EXHAUST PIPE TO MUFFLER
83
SCREW SHIFT LEVER
84
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
86
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
89
NUT , Replaced By: A1201420072
90
NUT HORN TO BRACKET M8
92
RUBBER BUFFER EXHAUST MUFFLER
93
NUT , Replaced By: N913023010002
95
NUT BRACKET TO RETARDER
98
WASHER GROUND CABLE
101
SCREW ANGLE TO CROSS MEMBER M 10X30
104
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
107
WASHER GROUND CABLE
130
140
150
BRACKET REAR TO A 695 490 04 01
160
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
