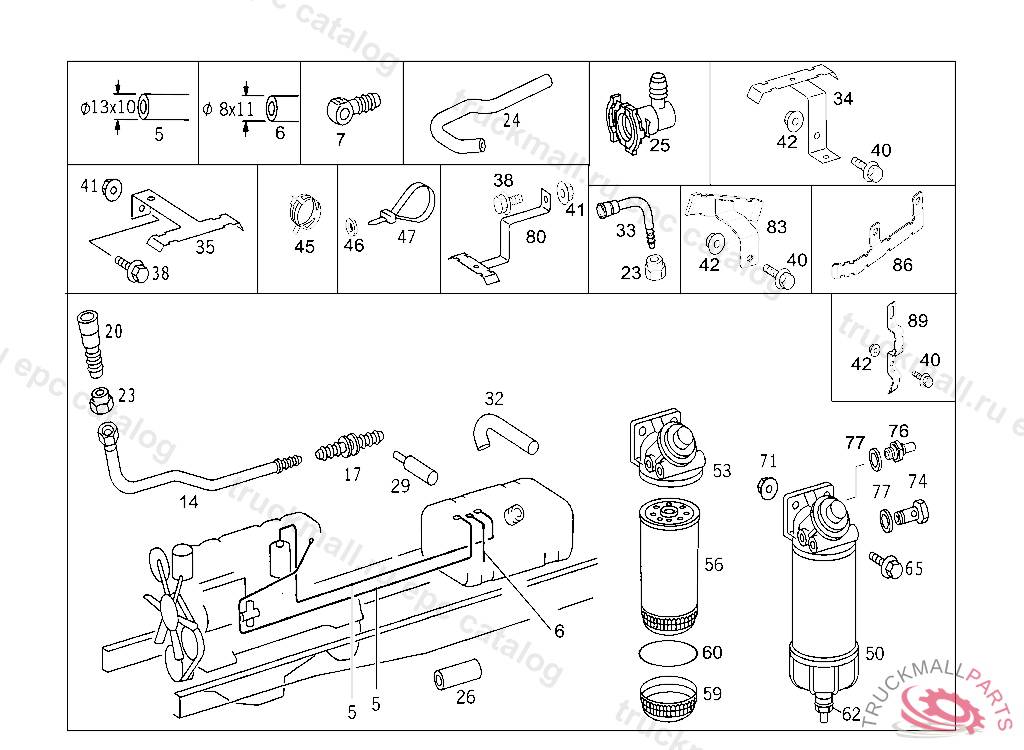

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
6
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
7
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
14
LINE AT SENDER UNIT,D 372681
17
CONNECTOR AT AIR COMPRESSOR, NOT USED
20
CONNECTOR LINE CONNECTION
23
UNION NUT RETURN LINE
24
25
FITTING
26
HOSE GREEN
26
INSULATING HOSE , ORDER BY THE METER
26
HOSE WITHE
26
INSULATING HOSE , ORDER BY THE METER
26
HOSE VIOLET
26
INSULATING HOSE CHECK VALVE,CONNECTION "2"
29
HOSE FUEL LINE TO RETURN CONNECTION
32
HOSE FUEL LINE TO RETURN CONNECTION
32
HOSE
33
CONNECTOR LINE CONNECTION, 90 DEGREE PIPE BEND,026097
34
35
BRACKET FUEL FILTER MOUNTING
35
BRACKET AT RIGHT SIDE MEMBER
38
SCREW POWER CYLINDER TO BEARING BRACKET
38
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
38
SCREW SHIFT LEVER TO BRACKET M8X30
38
SCREW BRACKET TO CAB REAR PANEL M 8X20
40
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
40
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
40
SCREW , Replaced By: N910143008002
41
NUT HORN TO BRACKET M8
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
42
NUT BRACKET TO SIDE MEMBER M12X1.5
42
NUT HORN TO BRACKET M8
45
CLAMP FROM FILTER TO ENGINE DIAM. 22 MM
46
WASHER BRACKET TO LEFT SIDE MEMBER
47
LOOM TIE LINE MOUNTING
47
LOOM TIE ELECTRIC CABLE MOUNTING
47
LOOM TIE AIR INTAKE HOSE TO CLAMP
47
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
47
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
50
FUEL FILTER , Replaced By: A6954700090
50
FUEL FILTER
50
FUEL FILTERMANN
50
53
53
FILTER HEAD
56
FILTER ELEMENT
56
56
FILTER ELEMENTTORACOR
56
FILTER ELEMENTTOMANN
59
FILTER BOWL. TRAY
59
PART NAME MISSINGTOA 958 470 04 90 (MANN)
60
SEALING RINGTO A 958 477 01 16
62
FITTING. FILTER
65
SCREW BRACKET TO RETARDER
65
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
71
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
71
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
74
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
74
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
76
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
77
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
80
BRACKET AT RIGHT SIDE MEMBER
80
BRACKET BRACKET TO RIGHT SIDE MEMBER
83
86
89
