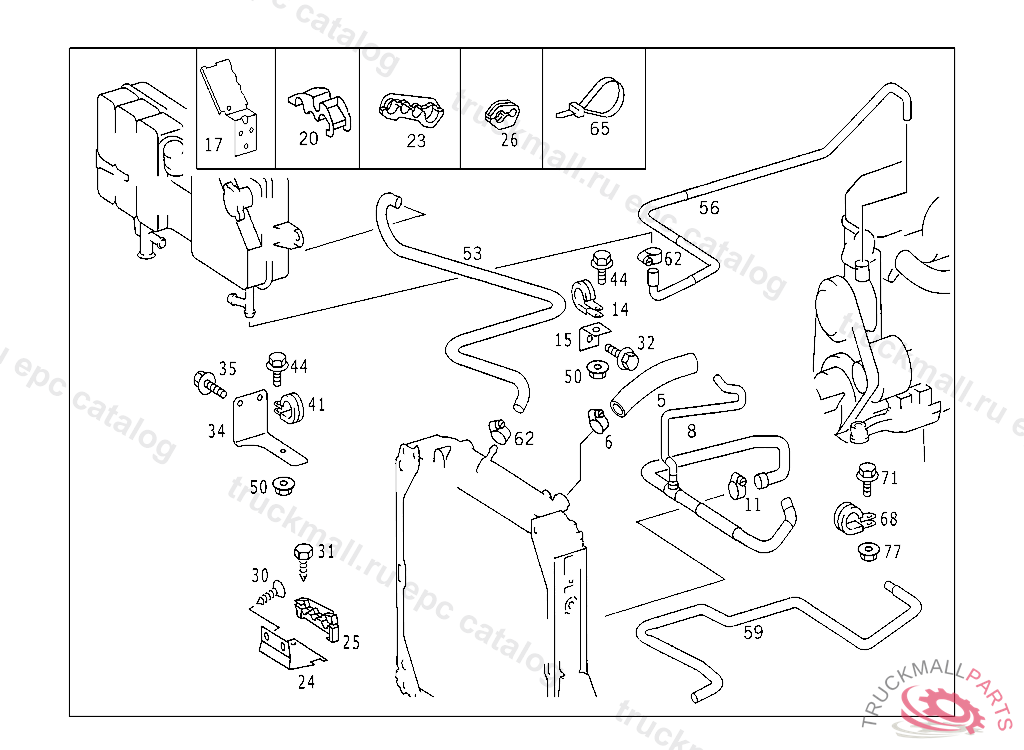

Поз.
Артикул
Описание
5
6
CLAMP , Replaced By: N000000000671
8
11
CLAMP
14
CLAMP COMPRESSED AIR LINE MOUNTING 38/20
15
BRACKET AT TRANSMISSION
17
20
BRACKET COOLING WATER HOSE TO OIL FILLER PIPE BRACKET,5 509582
23
BRACKET COOLING WATER HOSES
24
BRACKET HOSE TO FIRE WALL
25
BRACKET HOSE TO FIRE WALL
26
BRACKET COOLING WATER HOSES
30
SCREW BRACKET TO FIRE WALL
31
TAPPING SCREW. SCREW BRACKET TO FIRE WALL 6.3X25
32
SCREW BRACKET TO CAB REAR PANEL M 8X20
32
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
34
35
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
41
CLAMP COMPRESSED AIR LINE TO ENGINE CROSS MEMBER,D 216117
44
SCREW BRACKET AND CLAMP M6X20
50
NUT , Replaced By: N913023006001
50
NUT BRACKET TO FIRE WALL
53
56
59
62
CLAMP ENGINE RETURN LINE 12-18X9 MM
62
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
62
CLAMP HOSE TO FITTING AND TO OIL TANK
65
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
65
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
68
CLAMP COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
71
SCREW BRACKET AND CLAMP M6X20
77
NUT , Replaced By: N913023006001
