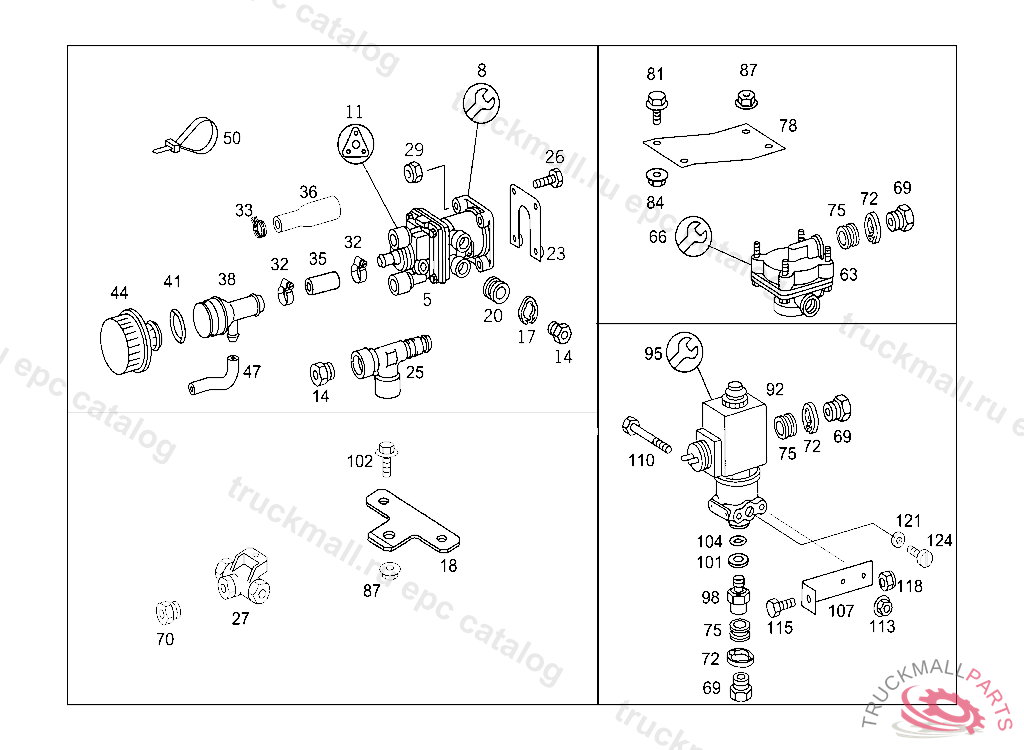

Поз.
Артикул
Описание
5
BRAKE VALVE SERVICE BRAKE WABCO,D 227053
5
BRAKE VALVE SERVICE BRAKE KNORR,D 227053
8
REPAIR KIT SMALL SCOPE TO 695 431 74 04
8
REPAIR KIT LARGE SCOPE TO 695 431 71 04
11
GASKET KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
14
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
14
SCREW. UNION SCREW LINE CONNECTION
17
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
18
20
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
23
FLANGE SERVICE BRAKE VALVE,D 227053
26
SCREW SERVICE BRAKE VALVE,D 227053
26
HEXALOBULAR BOLT
27
29
NUT HORN TO BRACKET M8
32
33
CLAMP FROM FILTER TO ENGINE DIAM. 22 MM
35
HOSE HAND BRAKE VALVE
36
HOSE
38
T-FITTING BETWEEN THE LINES
41
SEALING CORD SUCTION LINE TO OIL PUMP
44
MUFFLER VALVE BLEEDING
47
HOSE FROM L.P.G. REGULATOR TO T-FITTING
50
LOOM TIE ELECTRIC CABLE MOUNTING
63
VALVE (RELAY VALVE)
63
VALVE (RELAY VALVE) KNORR
66
REPAIR KITTO 386 429 70 44
66
REPAIR KIT. VALVE REPAIR KIT TO 695 429 71 44
69
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
69
SCREW. UNION SCREW LINE CONNECTION
69
SCREW. UNION SCREW , Replaced By: A0009973734
70
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
72
LOCK , Replaced By: A0009945448
72
SEAL RING ,D 350887
75
SEAL RING , Replaced By: A0009940747
75
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
78
81
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
84
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
87
NUT HORN TO BRACKET M8
92
VALVE 3/2-WAY VALVE
92
VALVE (SOLENOID VALVE) WABCO
92
3-2-WAY PNEUMATIC VALVE EXHAUST BRAKE WABCO,L 477192B 477192
95
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
98
FITTING LINE CONNECTION
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
102
SCREW , Replaced By: N910143008002
104
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
107
BRACKET 3/2-WAY VALVE
110
SCREW VALVE TO BRACKET M 8X60
113
NUT HORN TO BRACKET M8
115
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
118
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
121
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
124
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
