Mercedes N007603016102 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

2726/6X4/48 693.328

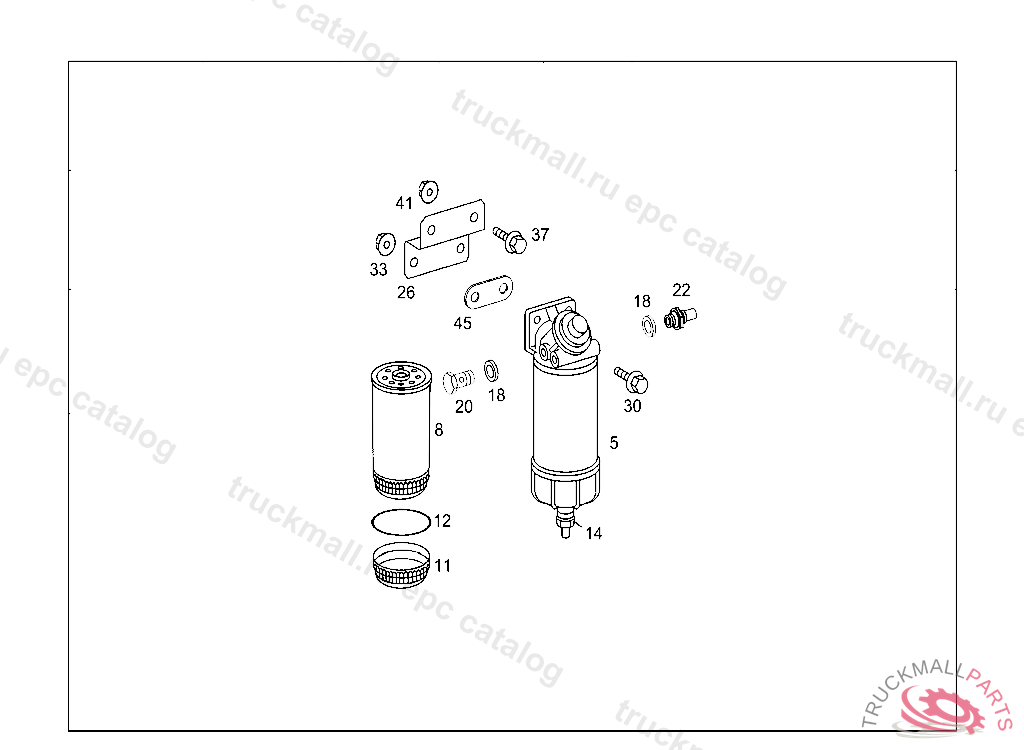

47 FUEL SYSTEM - 090 FUEL LINES,FUEL FILTER,AND BRACKET

Поз.
Артикул
Описание
5
A9584700090
5
A9584700390
FUEL FILTERMANN
8
A9584770015
8
A9584770115
FILTER ELEMENTTOMANN
11
A9584770216
11
A9584770116
PART NAME MISSINGTOA 958 470 04 90 (MANN)
12
A0229974545
SEALING RINGTO A 958 477 01 16
14
A3760927201
FITTING. FILTER
18
N007603016102
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
20
N915036012101
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
22
A9799970172
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
26
A6934767036
BRACKET FUEL FILTER MOUNTING
30
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
30
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
33
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
37
N910105012010
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
41
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
