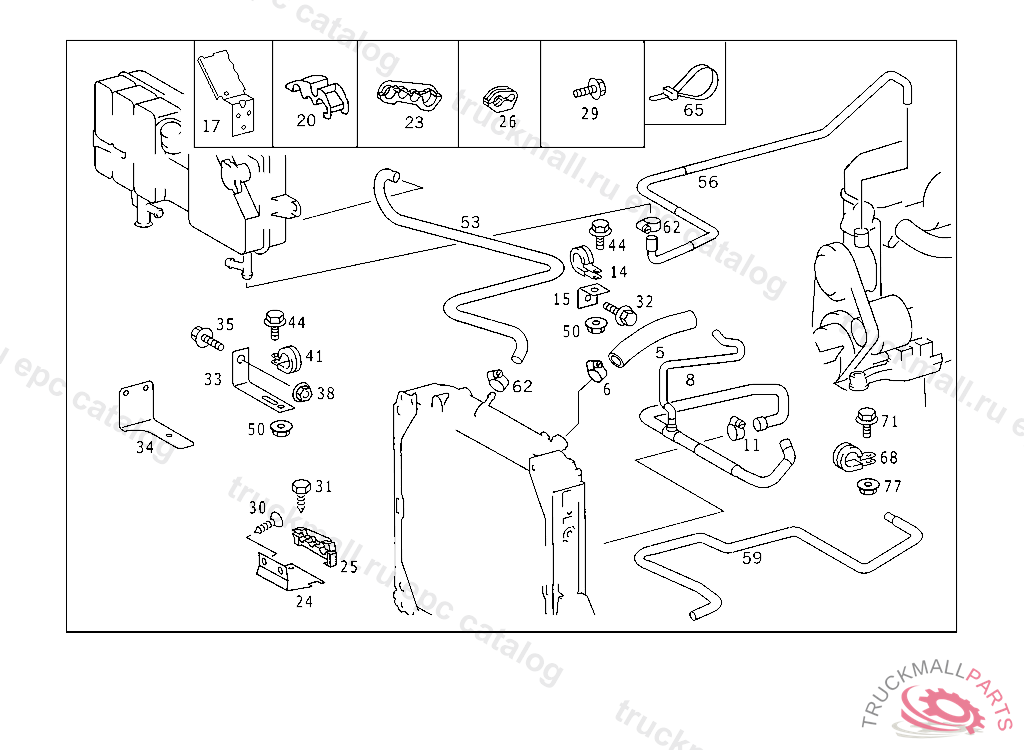

Поз.
Артикул
Описание
5
5
6
CLAMP , Replaced By: N000000000671
8
11
CLAMP
14
CLAMP COMPRESSED AIR LINE MOUNTING 38/20
14
CLAMP , Replaced By: A3829950701
15
BRACKET AT TRANSMISSION
17
20
BRACKET COOLING WATER HOSE TO OIL FILLER PIPE BRACKET,5 509582
23
BRACKET COOLING WATER HOSES
24
BRACKET HOSE TO FIRE WALL
25
BRACKET HOSE TO FIRE WALL
26
BRACKET COOLING WATER HOSES
29
SCREW CLAMP TO BRACKET
30
SHEET METAL SCREW BRACKET TO FIRE WALL
30
SCREW BRACKET TO FIRE WALL
31
TAPPING SCREW. SCREW BRACKET TO FIRE WALL 6.3X25
31
32
SCREW , Replaced By: A4609900601
32
SCREW COLD START SYSTEM TO BRACKET
32
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
32
SCREW BRACKET TO CAB REAR PANEL M 8X20
33
BRACKET LEFT SIDE MEMBER,D 030553
34
35
SCREW BRACKET TO CAB REAR PANEL M 8X20
35
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
35
SCREW , Replaced By: A4609900601
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
NUT HORN TO BRACKET M8
41
CLAMP COMPRESSED AIR LINE TO ENGINE CROSS MEMBER,D 216117
44
SCREW BRACKET AND CLAMP M6X20
44
SCREW CLAMP TO BRACKET
50
NUT
50
NUT , Replaced By: N913023006001
50
NUT BRACKET TO FIRE WALL
53
56
59
62
CLAMP ENGINE RETURN LINE 12-18X9 MM
62
CLAMP HOSE TO FITTING AND TO OIL TANK
62
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
62
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
65
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
65
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
68
CLAMP HOSE TO BRACKET 25/20,5 206397
71
SCREW BRACKET AND CLAMP M6X20
71
SCREW MODULE TO HOUSING
77
NUT
77
NUT , Replaced By: N913023006001
999
WASHER PLUG SOCKET TO BRACKET
