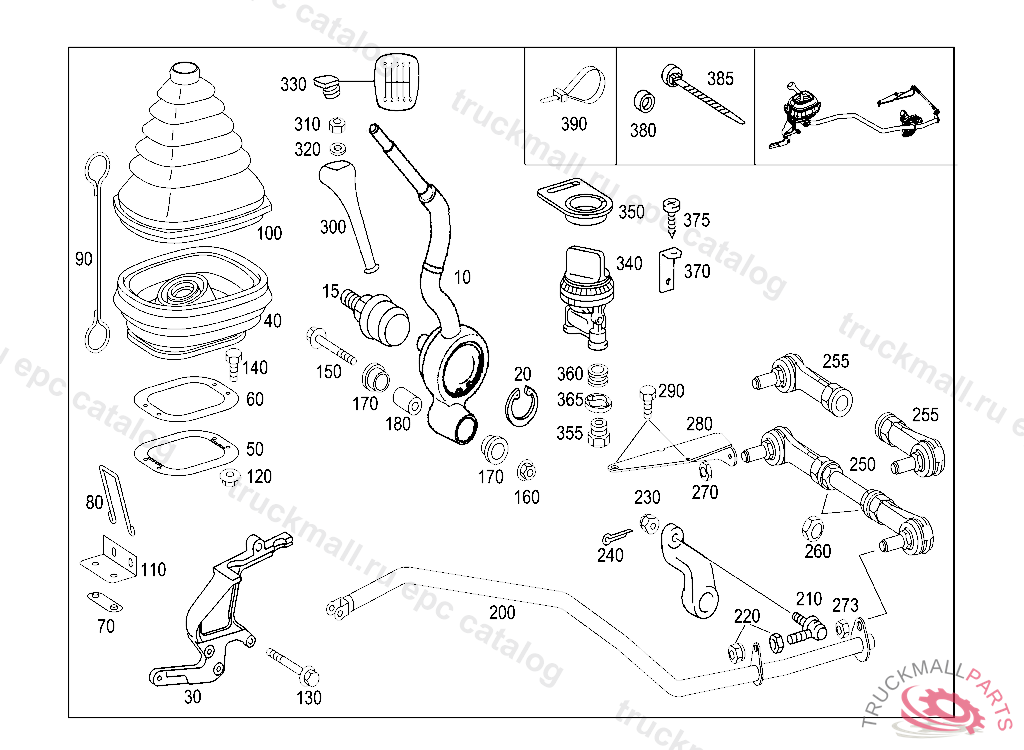

Поз.
Артикул
Описание
10
15
JOINT BEARING
20
20
RETAINING RING
30
40
40
50
60
SLIDE BOOT,107283(WHC: NMB)
70
BRACKET PLATE WITH THREADED HOLES
80
90
90
100
110
120
NUT BRACKET TO FIRE WALL
130
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
140
SCREW , Replaced By: N910143008000
150
SCREW AT FRAME
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
BUSHING
180
SPACER TUBE SHIFT LEVER TO FRONT SHIFTING TUBE
200
210
ARTICULATION PIECE
210
JOINT
220
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
230
NUT , Replaced By: N910113010003
240
COTTER PIN
250
255
ARTICULATION PIECE
255
ARTICULATION PIECE R.H. THREAD
260
NUT L.H. THREAD
260
NUT BRACKET TO FRAME
270
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
273
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
280
290
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
300
KNOB (SHIFT LEVER HANDLE), NO.8650I.......I I I II .......INO.9985I I I II I
310
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
320
WASHER EXHAUST PIPE TO BRACKET
330
COVER SHIFT LEVER KNOB,K 189883
340
VALVE P.T.O.
350
SHIM THREE-WAY VALVE,047699 NO.8650I.......I I I II .......INO.9985I I I II I
355
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
360
SEAL RING SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
365
LOCK SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
370
BRACKET ,D 091466
375
SHEET METAL SCREW
380
WASHER BRACKET TO LEFT SIDE MEMBER
385
LOOM TIE LINE MOUNTING
390
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
390
LOOM TIE ELECTRIC CABLE MOUNTING
