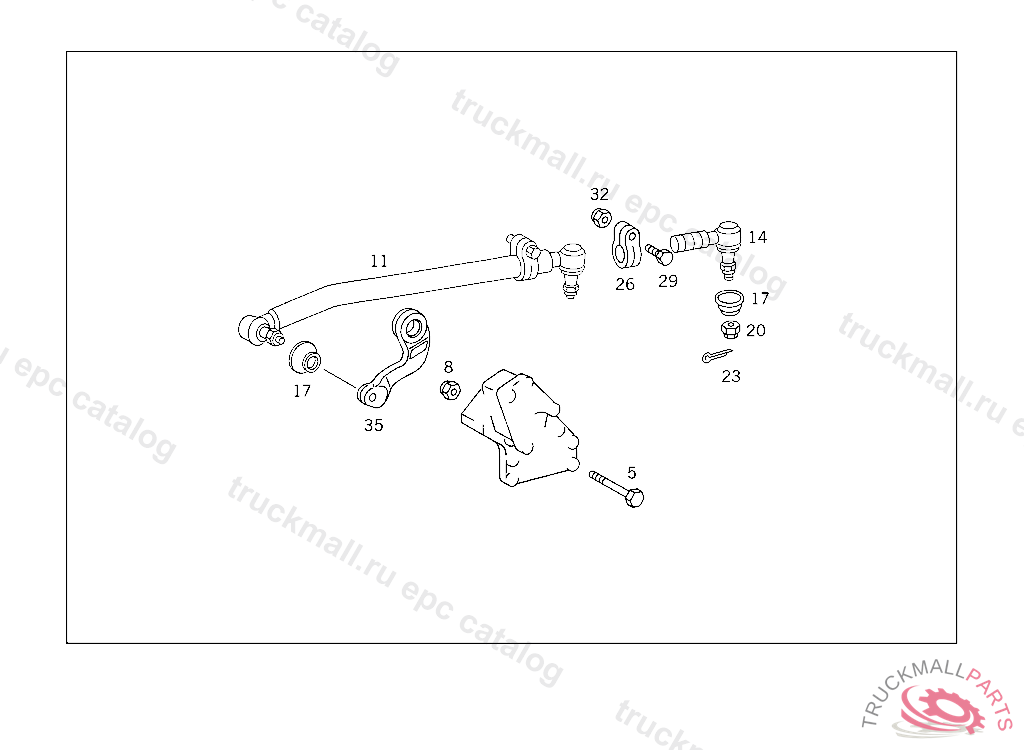

Поз.
Артикул
Описание
5
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
5
SCREW , Replaced By: A9429900201
8
NUT TRAILER COUPLING TO REAR CROSS MEMBER
11
DRAG LINK ACTUATING ROD ON PITMAN ARM AND AXLE
11
DRAG LINK ACTUATING ROD ON PITMAN ARM AND AXLE
14
JOINT SCREWED PART OF JOINT TO 693 460 71 05
14
DRAG LINK END SCREWED PART OF JOINT TO 693 460 70 05
17
DUST CAP SCREWED PART OF JOINT TO 693 460 71 05
20
NUT , Replaced By: N000979024003
23
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
26
CLAMP JOINT TO TIE ROD TO 693 460 70 05
26
CLAMP JOINT TO DRAG LINK TO 682 460 75 05
29
SCREW CLAMP TO 693 460 70 05,71 05
32
NUT BRACKET TO LEFT SIDE MEMBER
35
PITMAN ARM
