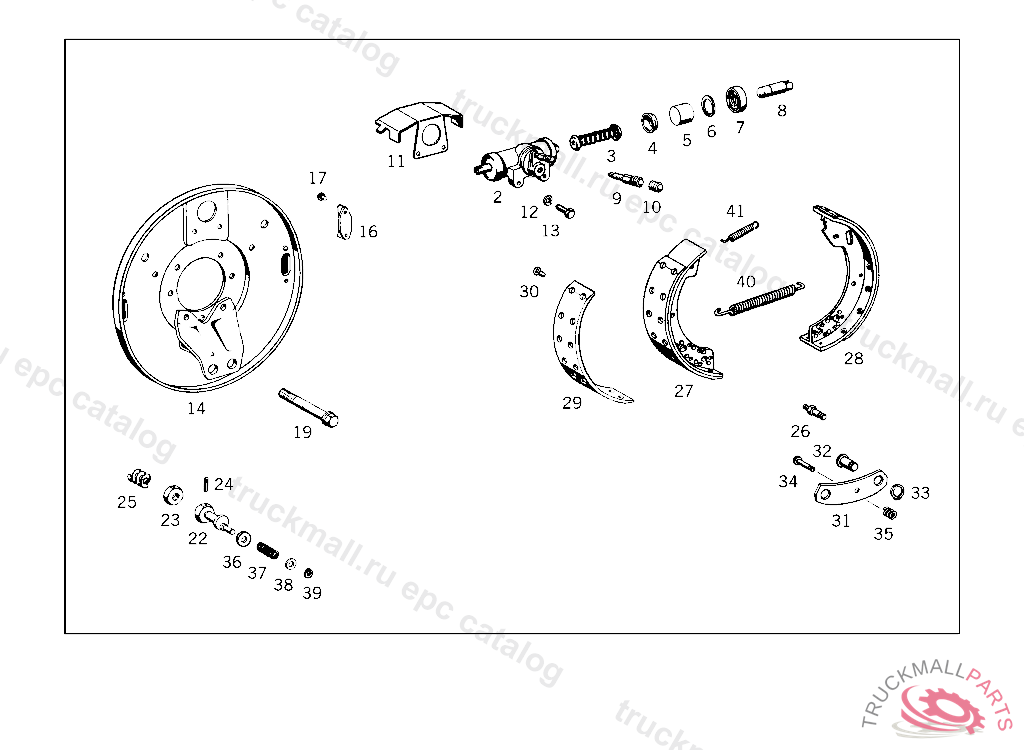

Поз.
Артикул
Описание
2
WHEEL BRAKE CYLINDER
3
SPRING RETAINER WITH SPRING RETAINER, 013933
4
CUP
5
PISTON , 024799
5
PISTON , 024798, Replaced By: A0004213883, +002A0004230888
6
LOCK
7
PROTECTIVE CAP
8
THRUST PIN , 013933-024798, Replaced By: A0004230888, +002A0004213883
8
THRUST PIN
9
BLEEDER VALVE
10
PROTECTIVE CAP , Replaced By: A0004217187
10
PROTECTIVE CAP ,5 962906
10
PROTECTIVE CAP , Replaced By: A0004217187
10
PROTECTIVE CAP , Replaced By: A0004210887
11
PROTECTIVE PLATE
12
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
13
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
14
BRAKE ANCHOR PLATE
14
BRAKE ANCHOR PLATE
16
INSPECTION HOLE COVER
17
RIVET
19
SCREW BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE, FROM CHASSIS 008664-011352 AND FROM CHASSIS 013846
22
ADJUSTER , FROM FRONT AXLE 046630
23
NUT
24
CLAMPING SLEEVE4X32 MM,TO 000 553 23 01,WEBER,4 250875
25
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
25
SPRING
26
PIN , ON SPECIAL REQUEST, H.D. FRONT AXLE
26
PIN
27
BRAKE SHOE , Replaced By: A3224200319, +002A3234210510
28
BRAKE SHOE LESS LINING, UP TO CHASSIS 003239 EXCEPT FOR SEE FOOTNOTE 45
28
BRAKE SHOE LESS LINING
28
BRAKE SHOE , Replaced By: A3224200319, +002A3234210510
29
BRAKE LINING ASBESTOS-FREE 12.60 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING12.6 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING ASBESTOS-FREE 12.60 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING12.6 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING11.6 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING11.6 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING ASBESTOS-FREE 10.60 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING10.6 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING10.6 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING ASBESTOS-FREE 8.30 MM, 013363
29
BRAKE LINING8.3 MM, 013363
29
BRAKE LINING ASBESTOS-FREE 8.30 MM, 013362
29
BRAKE LINING8.3 MM, 013362
29
BRAKE LINING ASBESTOS-FREE 7.30 MM, 013363
29
BRAKE LINING7.3 MM, 013363
29
BRAKE LINING ASBESTOS-FREE 7.30 MM, 013362
29
BRAKE LINING7.3 MM, 013362
29
BRAKE LINING ASBESTOS-FREE 6.60 MM, 013363
29
BRAKE LINING6.6 MM, 013363
29
BRAKE LINING ASBESTOS-FREE 6.60 MM, 013362
29
BRAKE LINING6.6 MM, 013362
30
RIVET
30
RIVET
31
BRACKET
32
PIVOT PIN SHACKLE TO BRAKE SHOE
32
PIVOT PIN , 037393, Replaced By: A3124211318, +001N900055022301
33
LOCK RING , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
33
LOCK RING , 001926 600301
34
REPAIR KIT BRAKE SHOE SHACKLE SPACER PIN, 006652
34
REPAIR KIT , Replaced By: A3384200182
34
PIN , Replaced By: A3385860442
34
PIN , 006651, Replaced By: A3385860442
35
SPRING , Replaced By: A3385860442
36
SPRING
36
WASHER
37
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
38
WASHER HORN TO ENGINE CROSS MEMBER
39
LOCK PLATE RELEASE LEVER TO SHAFT
40
SPRING
41
SPRING SHORT
999
SCREW PLUG , Replaced By: A0004315433
999
RESERVOIR , Replaced By: A0004311602
999
SCREWED NIPPLE. FITTING , Replaced By: A0084230084
999
SCREW PLUG CONNECTION "1","2",4 478330
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BRACKET. LOCK , Replaced By: A6525040038
999
BRAKE HOSE FRONT AXLE, FROM IDENT NO.: 001078 ALSO INSTALLED ON 000486,000532,000698,000721,000732,000737,000764,000794,000795,000798,000816,000823,000827,000828, 000833,000840,000847,000853,000865,000870,000884,000891,000901,000909,000944,000984,001032,001078, 001155,001156,001219,001363,001385,001427.
999
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
999
PIN
999
DIAPHRAGMTO 344 429 73 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST WASHER FOR DIAPHRAGM
999
VALVE CONEBOSCH
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
COVERTO 000 429 48 30
999
COVERWABCO
999
BRAKE LINE COUPLING WITH SHUT-OFF VALVE
999
AIR CLEANER
999
DISTRIBUTOR REAR AXLE,4 478330
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
REPAIR KITKNORR
999
STRAINERTO 002 430 31 01
999
CONNECTOR , FROM IDENT NO. 001338 EXCEPT FOR 0013438 0000014 2827078 000001-8 001702
999
CLAMP FLUID RESERVOIR
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
TEST CONNECTION
999
RESERVOIR , FROM IDENT NO. 001338-613554 EXCEPT FOR 001343
999
PRESSURE REGULATOR
999
CLAMPTO 000 431 58 02
999
VALVE DISC
999
PROTECTIVE CAP BRAKE BOOSTER
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
VALVE (OVERFLOW VALVE)
999
VALVE , 022603, Replaced By: A0004312707
999
ANTI-FREEZE DEVICE
999
VALVE. PRESSURE REGULATOR ,FB486597
999
FILLER CAP , Replaced By: A0004315533
999
CUPBOSCH
999
FILLER CAP , Replaced By: A0004315133
999
FILLER CAPTO 000 431 16 02
999
STRAINER , Replaced By: A0004314334
999
VALVE , Replaced By: A0004319106
999
STRAINER
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
PROTECTIVE CAP , Replaced By: A0009979486
999
CUP , 010506, Replaced By: A0059974746
999
FILLER CAP , Replaced By: A0004315433
999
FILLER CAP BUTTRESS THREAD
999
FILLER CAPTO 000 431 87 02
999
PROTECTIVE CAP
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
VALVE , FROM CHASSIS 023244 AND FOOTNOTE 51
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
RESERVOIR
999
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0004320807, +001N900397000201
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
SPRING CAPSULETO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
SWITCH , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
REPAIR KITTO 002 430 61 01
999
REPAIR KITTO 002 430 41 01
999
REPAIR KITTEVES
999
REPAIR KIT
999
REPAIR KIT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
SPRINGTO 000 429 16 30
999
CLAMP BRACKET TO AIR COMPRESSOR
999
PIPE CONNECTION NUT. FITTING ,613554
999
GROMMET
999
GROMMET
999
GROMMET CAB ROOF
999
SEAL RING
999
SEAL RING
999
PLUG
999
VALVE ,600892, Replaced By: A0004296244
999
SEAL RINGTO 000 429 16 30
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KITWABCO
999
REPAIR KIT , FROM 626
999
RESERVOIR COMPRESSED AIR 60 L.
999
SEAL RING42X21.5 MM
999
HOSE
999
SEAL RING
999
SEAL RINGTO 000 429 16 30
999
SEAL RINGBOSCH
999
CLAMP FUEL LINE TO BRACKET
999
WASHER ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
ADJUSTER
999
BEARING BRACKET , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRAKE LEVER WITH SHAFT, 005081
999
SPACER WASHER
999
SPACER WASHER2.0 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LEVER LEFT, ON LEFT DOUBLE LEVER SHAFT
999
HANDLE
999
BRACKET , 003794
999
REPAIR KIT , Replaced By: A3144200067
999
RIVET
999
CLAMP , Replaced By: A1109950401
999
HOSE
999
YOKE INTERMEDIATE SHAFT
999
REPAIR KIT , Replaced By: A3124271196, +001A3164230451, +001A3124231552, +002A3124231187, +001A3124261550, +002A3224260183, +001N070852035000, +001N070952035101
999
REPAIR KIT
999
REPAIR KIT , Replaced By: A3144200092
999
BUSHING
999
BUSHING , Replaced By: A3179920101
999
PIN , 020105
999
PIN
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
END PIECE , Replaced By: A3224200347, +001A3529910707
999
LINE , Replaced By: A3224209728
999
LINE , Replaced By: A3224209928
999
END PIECE
999
LINE , 010505, Replaced By: A3404201529
999
PAWL
