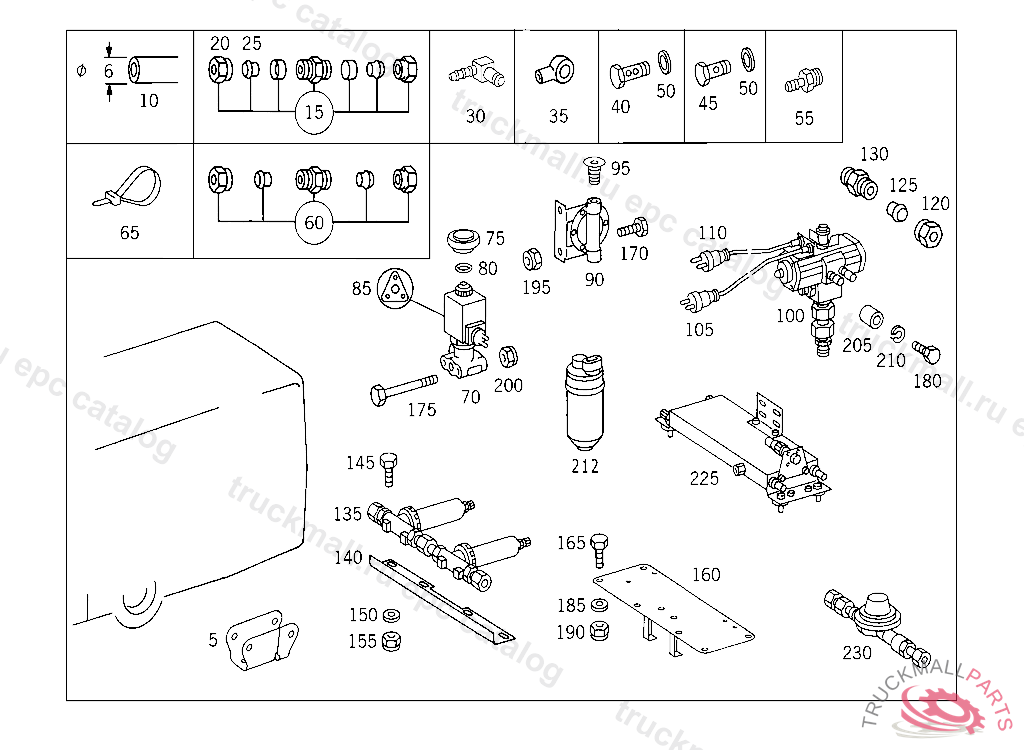

Поз.
Артикул
Описание
5
BRACKET ENGINE SUSPENSION,VIBRATION DAMPER END
10
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
10
PLASTIC PIPE RISING PIPE 4X6 MM
15
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
20
UNION NUT
25
GLAND , Replaced By: A0019901667
30
ELBOW FITTING
35
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
40
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
45
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
50
SEAL RING SRREW PLUG
55
FITTING LINE CONNECTION TO FIRE WALL,5 726664
60
TS DOUBLE FITTING SOLENOID VALVE
65
LOOM TIE LINE MOUNTING
70
VALVE , Replaced By: A0049975736
70
VALVE (3/2-WAY SOLENOID VALVE) EKS
70
VALVE (3/2-WAY SOLENOID VALVE) WABCO
70
VALVE (3/2-WAY SOLENOID VALVE) KNORR
75
PROTECTIVE CAPWABCO
80
SEAL RINGWABCO
85
GASKET KITKNORR
90
VALVE (3/2-WAY SOLENOID VALVE)
95
NOZZLE COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER
100
VALVE COOLING AIR
105
SWITCH
110
SWITCH
120
UNION NUT
125
GLAND , Replaced By: A0019901267
130
FITTING HIGH PRESSURE LINE TO STEERING
135
SEPARATOR (WATER SEPARATOR)
140
BRACKET WATER SEPARATOR
145
SCREW CURRENT LIMITER M4 X 25,5 4475325 584018
150
WASHER BRACKET TO SUPPORT
150
WASHER , Replaced By: N000125004319
155
NUT , Replaced By: N913002004001
155
NUT ATTACHMENT, MARKER LIGHT
160
PLATE VALVE MOUNTING,074199
165
SCREW CLAMP TO BRACKET AND TO PIPE
170
SCREW , Replaced By: N304017006018
170
SCREW COVER PLATE TO COVER PLATE M 6 X 12
175
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
180
SCREW REAR EXHAUST PIPE TO MUFFLER
185
WASHER EXHAUST MUFFLER TO STRAP
185
WASHER , Replaced By: N000125008443
190
NUT , Replaced By: N913004008001
195
NUT PUMP TO BRACKET
195
NUT , Replaced By: N913004006001
200
NUT , Replaced By: N913004008001
205
SPACER TUBE SOLENOID VALVE TO BRACKET
210
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
212
AUXILIARY PUMP FUEL PUMP
225
PUMP (METERING PUMP)
230
VALVE (PRESSURE CONTROL VALVE)
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
NOZZLE
999
CONNECTOR HEATER PLUG
999
CLAMPING RING
999
CAP FUEL PUMP
999
CONSOLE EXHAUST MUFFLER
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE TO SUPPORT
999
EXHAUST MUFFLER
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST PIPE
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET
999
BRACKET
