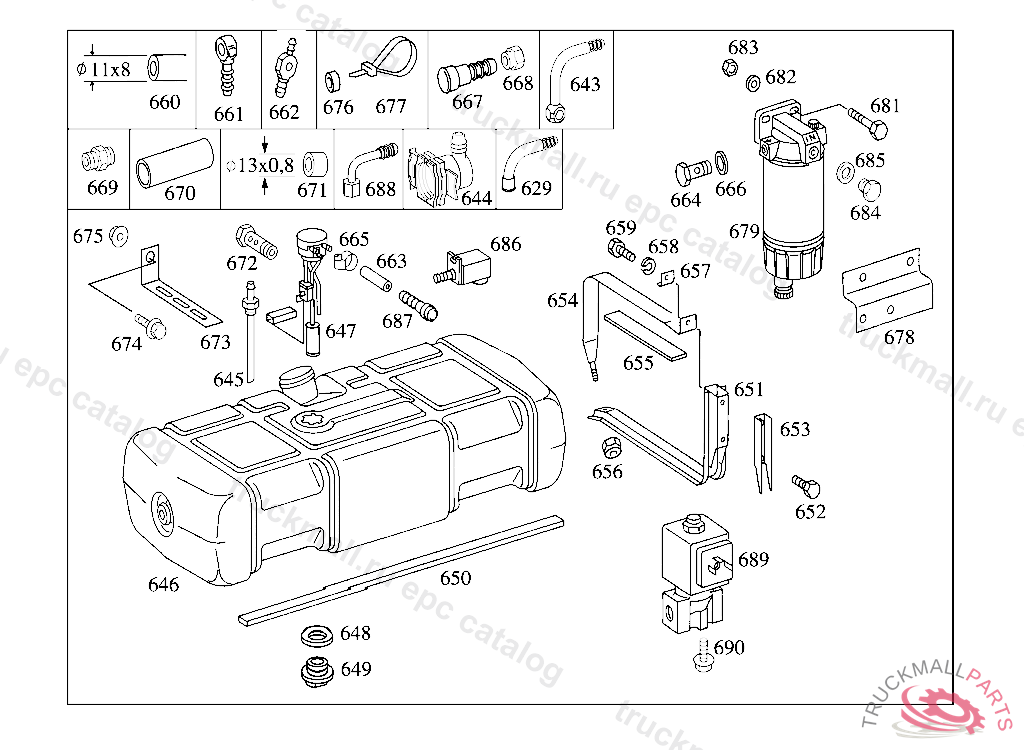

Поз.
Артикул
Описание
629
ELBOW FITTING FUEL LINES TO FITTING CONEXAO ESPIGAO - "L"
629
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
643
HOSE
643
HOSE FUEL LINES TO FITTING ESPIGAO COM OLHAL - "L"
644
FITTING
645
LINE
646
FUEL TANK LESS SENDER UNIT
646
FUEL TANK100 L
647
FUEL GAUGE DASH UNIT
647
SENDER UNIT
647
SENDER UNIT
648
SEAL RING FUEL STRAINER SCREEN
649
FITTING
649
FITTINGTO A 695 470 00 01
649
FITTING
649
FITTING FINE THREADM 35X1,5 MMTO A6884700103
650
REINFORCEMENT
651
SUPPORT FUEL TANK,FRONT AND REAR
652
SCREW BRACKET TO FRAME
652
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
653
BRACKET
654
STRAP FUEL TANK TO SUPPORT
655
PAD SUPPORT TO SIDE MEMBER
656
NUT BRACKET TO RETARDER
656
NUT , Replaced By: N913023010002
657
PLATE STRAP TO CONSOLE
658
LOCK WASHER BRACKET TO SUPPORTING ARM
659
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
659
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
660
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
661
BANJO UNION
662
HOSE
662
BANJO UNION
662
BANJO UNION10/14
663
HOSE FEED LINE AND RETURN LINE
664
HOLLOW SCREW
665
CLAMP HOSE TO FITTING AND TO OIL TANK
665
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
665
CLAMP , Replaced By: N000000000667
665
CLAMP , Replaced By: N916017011001
666
SEAL RING FUEL LINE TO FEED PUMP
666
SEAL RING INJECTION PUMP
667
CONNECTOR LINE CONNECTION
668
NUT. UNION NUT RETURN
668
UNION NUT RETURN LINE
669
CONNECTION FITTING , Replaced By: A0049971772
669
FITTING AT VALVE
670
INSULATING HOSE CHECK VALVE,CONNECTION "2"
670
HOSE GREEN
670
HOSE WITHE
670
INSULATING HOSE , ORDER BY THE METER
670
HOSE VIOLET
671
HOSE WITHE
672
HOLLOW SCREW FUEL LINE TO FUEL TANK
673
BRACKET BATTERY CABLE
674
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
675
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
676
WASHER BRACKET TO LEFT SIDE MEMBER
676
WASHER , Replaced By: A3609902340
676
WASHER , Replaced By: A3609902340
677
LOOM TIE LINE MOUNTING
677
LOOM TIE CABLE TO ALTERNATOR
677
LOOM TIE ELECTRIC CABLE MOUNTING
677
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
677
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
677
LOOM TIE AIR INTAKE HOSE TO CLAMP
677
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
677
LOOM TIE LINE TO BRACKET 508 MM
678
BRACKET WATER SEPARATOR
679
SEPARATOR WATER SEPARATOR PARKER HANNIFIN
681
SCREW CROSS MEMBER TO SIDE MEMBERS
682
WASHER GROUND CABLE
683
NUT BRACKET TO SIDE MEMBER,XB209706
684
SCREW PLUG
685
SEAL RING INJECTION PUMP
686
VALVE (VENT VALVE)
687
SEAL CONE
688
ELBOW FITTING AT VALVE
689
VALVE (SOLENOID VALVE)
690
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
999
PART NAME MISSING
999
PART NAME MISSING PIPE ELBOW
999
PART NAME MISSING
999
PART NAME MISSING
999
HOSE
999
HOSE TO AIR CLEANER
999
HOSE RELAY VALVE,SHUT-OFF VALVE, NOT USED
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP OIL DIPSTICK TO RADIATOR
999
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
999
NUT RETARDER HOUSING TO TRANSMISSION CASE
999
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
NUT HORN TO BRACKET M8
999
NUT BRACKET TO FIRE WALL
999
NUT , Replaced By: N910113010003
999
SCREW STEERING TO FRAME M18X1,5X90,D 473986
999
HEXAGON HEAD BOLT. SCREW STEERING TO FRAME M18X1,5X180,D 473986
999
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
999
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
999
SCREW BRACKET TO SIDE MEMBER M10X35
999
SCREWM8X120,D 250888 NOT USED
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
999
SCREW , Replaced By: N910143008010
999
SCREW , Replaced By: N910143008000
999
SCREW BRACKET AND CLAMP M6X20
999
RIVET SUPPORT TO SIDE MEMBER 14X30
999
RIVET12X36 MM
999
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
999
SCREW PLUG 4/2-WAY VALVE
999
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SEAL RING
999
SEAL RING PNEUMATIC VALVE
999
LOCK PLATE
999
WASHER BRACKET TO FENDER BRACKET
999
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
NUT TO A6884608605
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
WASHER TRANSMISSION TO INTERMEDIATE RING
999
COTTER PIN DRAG LINK TO STEERING ARM
999
COTTER PIN
999
SCREW. HEXALOBULAR BOLT BRACKET TO RIGHT FRONT FENDER M8X30
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SEALING RING
999
SEALING RING AT PRESSURE REGULATOR
999
HEXAGON HEAD BOLT. SCREW BEARING BRACKET TO AXLE M 18X180
999
CLAMP , Replaced By: A0059970690
999
CLAMP , Replaced By: A0059972990
999
CLAMP25-40X13 MM
999
BRACKET PIPE ELBOW TO CHARGING AIR INTERCOOLER
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
FILLER NECK FITTING
999
RUBBER SECTION ,D 339846D 437847
999
RUBBER MAT ,D 339846
999
SUPPORT FUEL TANK MOUNTING,D 339846
999
BEARING BRACKET TO SHACKLE
999
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
999
MUFFLER FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
CABLE HARNESS MANUAL CONTROL
999
REAR EXHAUST PIPE REAR
999
BRACKET AT MUFFLER
999
GUSSET PLATE BOTTOM RIGHT
999
GUSSET PLATE BOTTOM LEFT
999
GUSSET PLATE TOP RIGHT
999
GUSSET PLATE TOP LEFT
999
GUSSET PLATE RIGHT BOTTOM
999
GUSSET PLATE LEFT BOTTOM
999
CROSS MEMBER (REAR CROSS MEMBER)
999
HOSE
999
GROMMET BATTERY CABLE PASSAGE
999
FITTING CLUTCH HOSE M14X1 MM
999
FITTING CLUTCH SLAVE CYLINDER M 12X1TO 688 290 03 13
999
WASHER CAB TO FRONT CONSOLE
999
TYPE DESIGNATION , Replaced By: A6938170315
999
BRACKET LEFT, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER, Replaced By: A9795410140
999
HOSE
999
INTAKE CASE
999
HOSE FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
HOSE TO AIR CLEANER
999
BUMPER
999
COVERING
999
BRACKET BUMPER BRACKETS
999
BRACKET BRACKET TO MOUNTING PLATE
999
AIR INTAKE PIPE ,B 862668
999
STRUT
999
HOSE
999
HOSE FROM CONNECTING PIPE TO EXPANSION TANK
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
BRACKET
999
BRACKET
999
RADIATOR WATER
999
SUPPORT LEFT
999
SUPPORT RIGHT
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
SUPPORT
999
BRACKET EXHAUST MUFFLER SUPPORT TO SIDE MEMBER TO A 688 490 08 01,D 462817
999
STRAP FUEL TANK MOUNTING
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
HOSE SUCTION LINE CONNECTION
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 1616 MM
999
SHIM CAB SUSPENSION
999
WASHER CAB TO FRONT CONSOLE
999
COVER CAB SUSPENSION
999
CROSS MEMBERNO. 1
999
LEVER
999
LEVER , Replaced By: A6883010120, +001N006799009002
999
AIR CLEANER"MANN",B 797839
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
BEARING BRACKET TO SHACKLE
999
SPACER TUBE CAB TO FRONT CONSOLE
999
STOP CAB TO FRONT CONSOLE
999
RUBBER BUFFER CAB TO FRONT CONSOLE
999
BRACKET
999
VALVE REMOTE GEARSHIFT MECHANISM
999
LOCK
