Поз.
Артикул
Описание

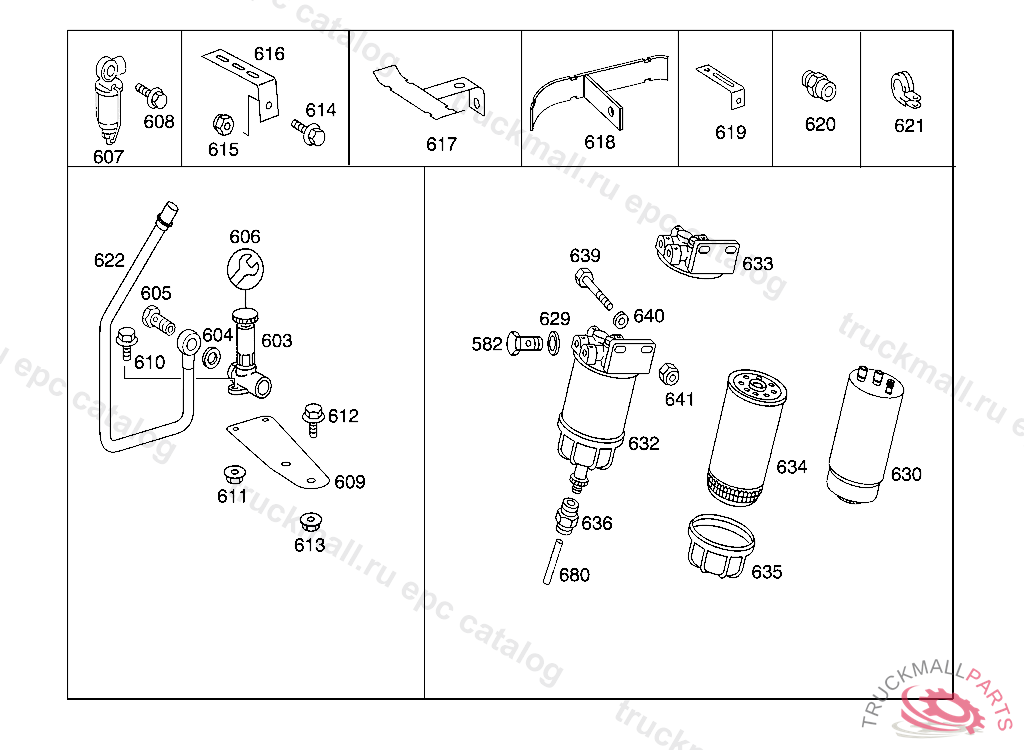

582
HOLLOW SCREW OIL LINE TO TRANSMISSION
582
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
582
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
582
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
582
HOLLOW SCREW
582
HOLLOW SCREW
582
HOLLOW SCREW
582
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
603
PUMP (MANUAL AUXILIARY PUMP)
604
SEAL RING
604
SEAL RING
604
SEAL RING
605
TRANSFER NIPPLE. FITTING
605
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
606
REPAIR KIT VALVE
607
FUEL FILTER (MANUAL AUXILIARY PUMP)
608
SCREW BRACKET AND CLAMP M6X20
609
BRACKET (MANUAL AUXILIARY PUMP)
610
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
610
SCREW BRACKET AND CLAMP M6X20
611
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
611
NUT BRACKET TO FIRE WALL
612
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
613
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
614
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
614
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
615
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
615
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
615
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
616
BRACKET BATTERY CABLE
616
BRACKET BATTERY CABLE
617
BRACKET TO MOUNT FUEL LINES
617
BRACKET TO MOUNT FUEL LINES
618
BRACKET
619
BRACKET POS. CABLE,XB209706
620
FITTING FUEL FILTER
621
CLAMP FUEL LINES TO BRACKET
622
HOSE OIL DELIVERY LINE TO MANUAL PUMP TUBO METALICO COM OLHAL
629
ELBOW FITTING FUEL LINES TO FITTING CONEXAO ESPIGAO - "L"
629
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
630
FUEL FILTER SHIELDED
632
FUEL FILTER FUEL FILTER TO SIDE MEMBER
632
FUEL FILTER FUEL FILTER TO SIDE MEMBER
632
FUEL FILTER FUEL FILTER TO SIDE MEMBER
632
FILTER WATER SEPARATOR
632
FILTER FUEL,D 180260
632
FILTER WATER SEPARATOR
633
FILTER HEAD
633
FILTER HEAD
633
FILTER HEAD
634
FILTER ELEMENTTORACOR
634
FILTER ELEMENTTORACOR
634
FILTER ELEMENTTOMANN
634
FILTER
634
FILTER
634
FILTER ,D 180260
634
FILTER
635
BOTTOM PLATETOA 979 470 02 90
635
PART NAME MISSINGTOA 958 470 04 90 (MANN)
635
FILTER BOWL. TRAY
635
PART NAME MISSINGTOA 958 470 04 90 (MANN)
635
FILTER BOWL. TRAY
636
FITTING. FILTER
636
FITTING. FILTER
636
FITTING. FILTER
636
FITTING. FILTER
639
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
639
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
639
SCREW CROSS MEMBER TO SIDE MEMBERS
639
SCREW CROSS MEMBER TO SIDE MEMBERS
639
SCREW OVERLOAD PROTECTOR TO BRACKET
640
WASHER TRANSMISSION TO INTERMEDIATE RING
640
WASHER TRANSMISSION TO INTERMEDIATE RING
640
WASHER6,4
641
NUT BRACKET TO SIDE MEMBER,XB209706
641
NUT BRACKET TO SIDE MEMBER,XB209706
641
NUT PUMP TO BRACKET
680
HOSE WATER DRAIN
999
PART NAME MISSING
999
PART NAME MISSING PIPE ELBOW
999
PART NAME MISSING
999
PART NAME MISSING
999
HOSE
999
HOSE TO AIR CLEANER
999
HOSE RELAY VALVE,SHUT-OFF VALVE, NOT USED
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP OIL DIPSTICK TO RADIATOR
999
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
999
NUT RETARDER HOUSING TO TRANSMISSION CASE
999
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
NUT HORN TO BRACKET M8
999
NUT , Replaced By: N910113010003
999
SCREW STEERING TO FRAME M18X1,5X90,D 473986
999
HEXAGON HEAD BOLT. SCREW STEERING TO FRAME M18X1,5X180,D 473986
999
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
999
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
999
SCREW BRACKET TO SIDE MEMBER M10X35
999
SCREWM8X120,D 250888 NOT USED
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
999
SCREW , Replaced By: N910143008010
999
SCREW , Replaced By: N910143008000
999
RIVET SUPPORT TO SIDE MEMBER 14X30
999
RIVET12X36 MM
999
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
999
SCREW PLUG 4/2-WAY VALVE
999
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SEAL RING INJECTION PUMP
999
SEAL RING PNEUMATIC VALVE
999
LOCK PLATE
999
WASHER BRACKET TO FENDER BRACKET
999
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
NUT TO A6884608605
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
COTTER PIN DRAG LINK TO STEERING ARM
999
COTTER PIN
999
SCREW. HEXALOBULAR BOLT BRACKET TO RIGHT FRONT FENDER M8X30
999
SEALING RING
999
SEALING RING AT PRESSURE REGULATOR
999
HEXAGON HEAD BOLT. SCREW BEARING BRACKET TO AXLE M 18X180
999
CLAMP , Replaced By: A0059970690
999
CLAMP , Replaced By: A0059972990
999
CLAMP25-40X13 MM
999
BRACKET PIPE ELBOW TO CHARGING AIR INTERCOOLER
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
FILLER NECK FITTING
999
RUBBER SECTION ,D 339846D 437847
999
RUBBER MAT ,D 339846
999
SUPPORT FUEL TANK MOUNTING,D 339846
999
BEARING BRACKET TO SHACKLE
999
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
999
MUFFLER FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
CABLE HARNESS MANUAL CONTROL
999
REAR EXHAUST PIPE REAR
999
BRACKET AT MUFFLER
999
GUSSET PLATE BOTTOM RIGHT
999
GUSSET PLATE BOTTOM LEFT
999
GUSSET PLATE TOP RIGHT
999
GUSSET PLATE TOP LEFT
999
GUSSET PLATE RIGHT BOTTOM
999
GUSSET PLATE LEFT BOTTOM
999
CROSS MEMBER (REAR CROSS MEMBER)
999
HOSE
999
GROMMET BATTERY CABLE PASSAGE
999
FITTING CLUTCH HOSE M14X1 MM
999
FITTING CLUTCH SLAVE CYLINDER M 12X1TO 688 290 03 13
999
WASHER CAB TO FRONT CONSOLE
999
TYPE DESIGNATION , Replaced By: A6938170315
999
BRACKET LEFT, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER, Replaced By: A9795410140
999
HOSE
999
INTAKE CASE
999
HOSE FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
HOSE TO AIR CLEANER
999
BUMPER
999
COVERING
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
HOSE SUCTION LINE CONNECTION
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
STRAP FUEL TANK MOUNTING
999
BRACKET EXHAUST MUFFLER SUPPORT TO SIDE MEMBER TO A 688 490 08 01,D 462817
999
SUPPORT
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
SUPPORT RIGHT
999
SUPPORT LEFT
999
RADIATOR WATER
999
BRACKET
999
BRACKET
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
HOSE FROM CONNECTING PIPE TO EXPANSION TANK
999
HOSE
999
STRUT
999
AIR INTAKE PIPE ,B 862668
999
BRACKET BRACKET TO MOUNTING PLATE
999
BRACKET BUMPER BRACKETS
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 1616 MM
999
SHIM CAB SUSPENSION
999
WASHER CAB TO FRONT CONSOLE
999
COVER CAB SUSPENSION
999
CROSS MEMBERNO. 1
999
LEVER
999
LEVER , Replaced By: A6883010120, +001N006799009002
999
AIR CLEANER"MANN",B 797839
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
BEARING BRACKET TO SHACKLE
999
SPACER TUBE CAB TO FRONT CONSOLE
999
STOP CAB TO FRONT CONSOLE
999
RUBBER BUFFER CAB TO FRONT CONSOLE
999
BRACKET
999
VALVE REMOTE GEARSHIFT MECHANISM
999
LOCK
999
WASHER
999
HOLLOW SHAFT
999
LINE FROM HOSE TO TANK, Replaced By: A6644200136
999
PIPE REMOTE GEARSHIFT MECHANISM
999
OIL COOLER (OIL COOLER)
999
BANJO UNION
