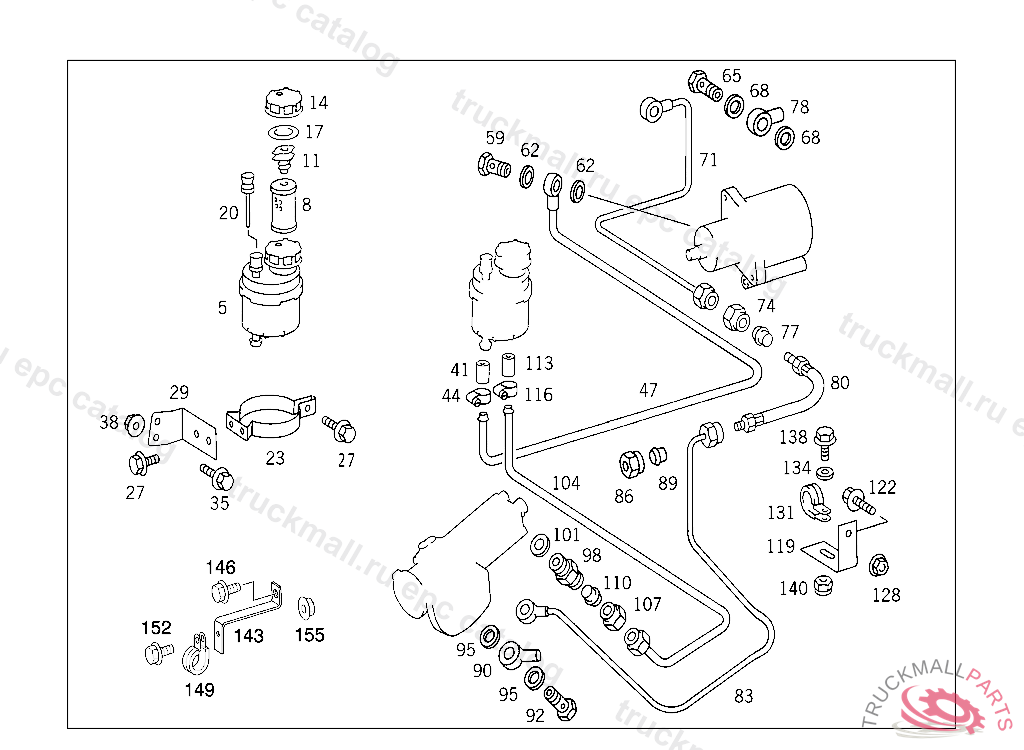

Поз.
Артикул
Описание
5
TANK POWER STEERING
8
FILTER ELEMENT ,D 441028D 523393
11
BRACKET
14
FILLER CAP
17
SEAL RING
20
OIL DIPSTICK ,D 523393
23
STRAP OIL TANK
27
SCREWM 10X20
29
BRACKET OIL TANK
35
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
38
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
44
CLAMP , Replaced By: N000000000667
59
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
62
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
68
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
74
UNION NUT LINE CONNECTION, Replaced By: N000000006239
77
GLAND , Replaced By: A0019901967
80
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
80
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
80
HOSE DELIVERY LINE TO PUMP
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
GLAND , Replaced By: A0019901967
90
BANJO UNION
92
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
92
HOLLOW SCREW
95
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
101
SEAL RING SOLENOID VALVE A 18X24
113
HOSE HIGH PRESSURE
116
CLAMP HOSE TO FITTING AND TO OIL TANK
138
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
