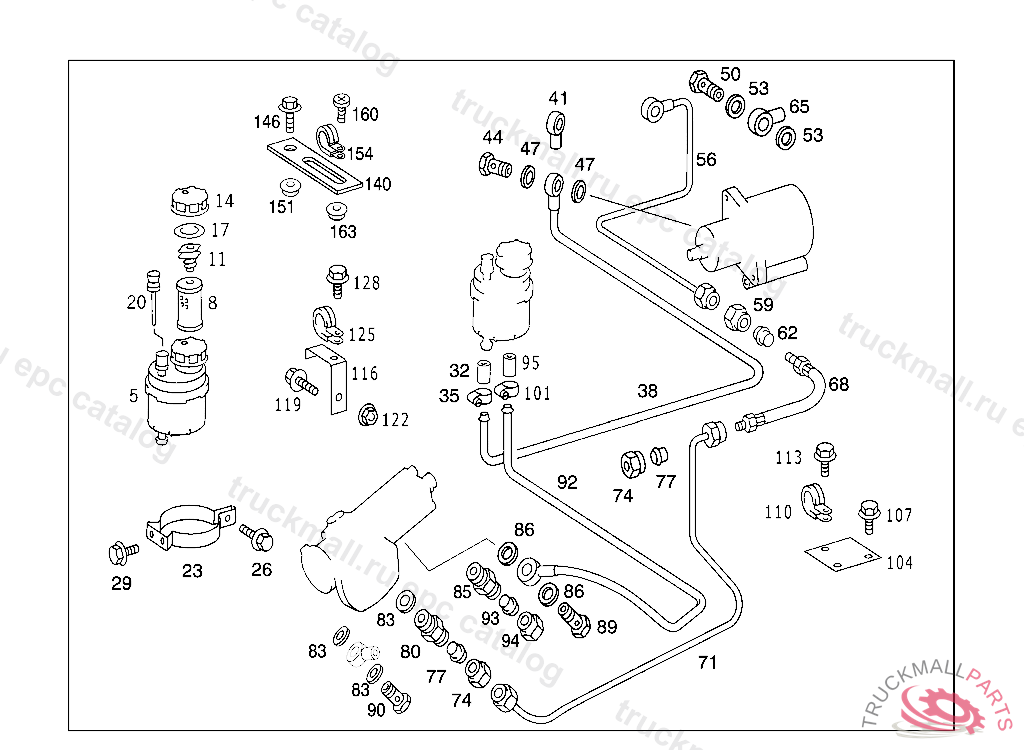

Поз.
Артикул
Описание
5
TANK POWER STEERING
8
FILTER ELEMENT ,D 441028D 523393
11
BRACKET
14
FILLER CAP
17
SEAL RING
20
OIL DIPSTICK ,D 523393
23
STRAP OIL TANK
26
SCREWM 10X20
29
SCREWM 10X20
32
HOSE , Replaced By: A3849977482
35
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
38
44
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
47
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
53
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
59
UNION NUT LINE CONNECTION, Replaced By: N000000006239
62
GLAND , Replaced By: A0019901967
68
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
68
HOSE DELIVERY LINE TO PUMP
68
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
UNION NUT LINE CONNECTION, Replaced By: N000000006239
77
GLAND , Replaced By: A0019901967
80
FITTING CONTROL DEVICE CONNECTION: P2
83
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
86
SEAL RING SOLENOID VALVE A 18X24
89
HOLLOW SCREW
90
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
92
95
HOSE HIGH PRESSURE
101
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
107
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
154
CLAMP BATTERY POS. CABLE TO BRACKET
160
SCREW BRACKET AND CLAMP M6X20
163
NUT BRACKET TO FIRE WALL
