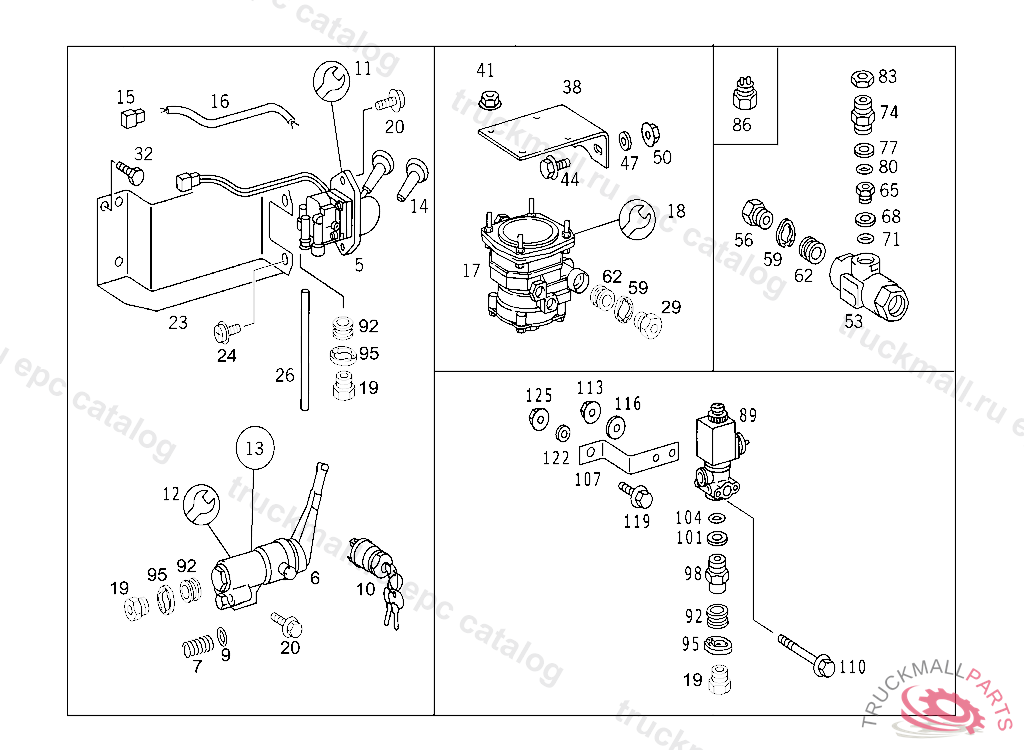

Поз.
Артикул
Описание
5
BRAKE VALVE (PARKING BRAKE VALVE) KNORR
5
BRAKE VALVE (PARKING BRAKE VALVE)
5
BRAKE VALVE (PARKING BRAKE VALVE) WABCO
5
BRAKE VALVE (PARKING BRAKE VALVE)
6
VALVE (PARKING BRAKE VALVE) WABCO
7
SPRING
9
SEAL RING
10
SWITCH TO 695 430 71 81
11
RS PARKING BRAKE VALVETO 693 431 71 05
11
VALVE REPAIR KIT TO 695 431 70 05
11
REPAIR KITTO 693 431 7205
11
REPAIR KITTO 693 431 71 05, Replaced By: A0004302509
11
REPAIR KIT PARKING BRAKE VALVE TO 695 431 75 05
12
REPAIR KIT REPAIR KIT TO 695 430 71 81
13
PROTECTIVE PLATE PARTS KIT TO 695 430 71 81
14
HANDLE PARTS KIT TO 695 431 75 05
14
HANDLE PARTS KIT TO 693 431 72 05
14
HANDLETO 693 431 71 05
15
PLUGTO 693 431 71 05
16
ELECTRIC CABLE PARTS KIT TO A 693 431 72 05
17
VALVE (TRAILER CONTROL VALVE) KNORR
18
REPAIR KITTO A 000 431 82 13
19
SCREW. UNION SCREW , Replaced By: A0009973734
20
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
20
SCREW PLUG SOCKET TO FRAME
23
BRACKET HAND BRAKE VALVE
24
HEXALOBULAR BOLT. SCREW SUPPORT WITH HANDBRAKE VALVE ON SEAT FRAME M 8X16
26
HOSE HAND BRAKE VALVE
26
HOSE PARKING BRAKE VALVE,CONNECTION: "3"
26
HOSE TRAILER BRAKE VALVE,CONNECTION:
29
SCREW. UNION SCREW LINE CONNECTION
32
HEXALOBULAR BOLT. SCREW SUPPORT WITH HANDBRAKE VALVE ON SEAT FRAME M 8X16
32
BOLT , Replaced By: N000000001589
38
BRACKET TRAILER CONTROL VALVE
38
BRACKET TRAILER CONTROL VALVE
41
NUT HORN TO BRACKET M8
44
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
47
WASHER
50
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
53
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
53
VALVE , Replaced By: A0044291544
53
VALVE (LOCKING VALVE)
56
SCREW. UNION SCREW LINE CONNECTION
59
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
62
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
65
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
68
THRUST RING CHECK VALVE TO AIR RESERVOIR
68
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
71
O-RING CHECK VALVE TO AIR RESERVOIR
74
FITTING LOCKING VALVE
77
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
SWITCH LOCKING VALVE,CONNECTIONS: "12"
86
SWITCH , Replaced By: A6935457709
89
VALVE , Replaced By: A0049975736
89
VALVE CONSTANT THROTTLE
92
SEAL RING , Replaced By: A0009940747
95
LOCK , Replaced By: A0009945448
98
FITTING LINE CONNECTION
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
104
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
107
BRACKET BRACKET TO LEFT SIDE MEMBER
110
SCREWM6X60
113
NUT BRACKET TO FIRE WALL
116
WASHER , Replaced By: N009021006208
119
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
122
WASHER GROUND CABLE
125
NUT BRACKET TO SIDE MEMBER M12X1.5
999
VALVE
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
SCREW SWITCH TO BRACKET 8X16
999
SCREW , Replaced By: A4609900601
