Поз.
Артикул
Описание

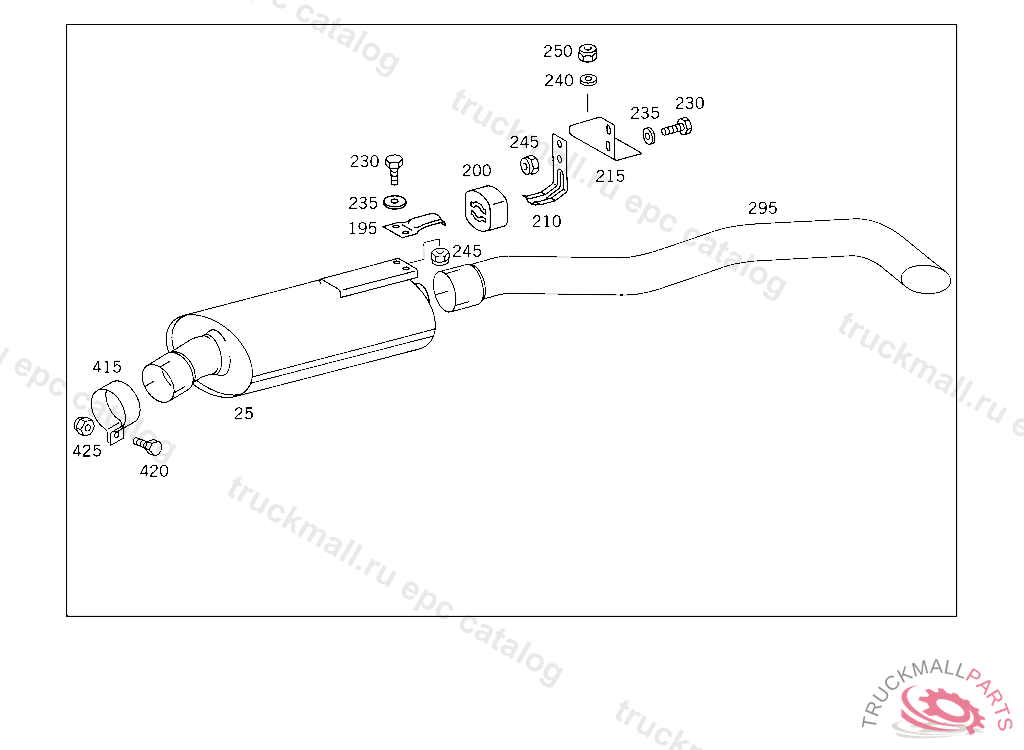

25
EXHAUST MUFFLER
195
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
200
DAMPING PAD EXHAUST MUFFLER SUSPENSION
210
BRACKET EXHAUST MUFFLER SUSPENSION
215
BRACKET REAR MUFFLER SUSPENSION
230
SCREW PIPE CLAMP
235
WASHER BRACKET TO LEFT SIDE MEMBER
235
WASHER EXHAUST MUFFLER TO STRAP
235
WASHER , Replaced By: N009021008213
240
WASHER BRACKET TO CROSS MEMBER
245
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
250
NUT , Replaced By: N913004008001
295
REAR EXHAUST PIPE
295
REAR EXHAUST PIPE (TAIL PIPE)
295
EXHAUST PIPE
295
EXHAUST PIPE
295
EXHAUST PIPE (TAIL PIPE)
295
EXHAUST PIPE
295
EXHAUST PIPE (TAIL PIPE)
295
EXHAUST PIPE
415
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
415
CLAMP , Replaced By: N071555104501
420
SCREW END PIECE TO EXHAUST PIPE M 10X25
425
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
425
NUT REINFORCEMENT TO BRACKET
425
NUT , Replaced By: N910113010003
999
INSULATION REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
EXHAUST PIPE REAR
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE1273,1 MM,076650
999
BRACKET AT BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE
999
END PIECE REAR EXHAUST PIPE
999
END PIECE REAR EXHAUST PIPE,076650
999
END PIECE REAR EXHAUST PIPE
999
END PIECE REAR EXHAUST PIPE,076650
999
DAMPING PAD , Replaced By: A0004920082
999
BRACKET
999
BRACKET
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET REAR EXHAUST PIPE,079546
999
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
999
BUSHING EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE
999
EXHAUST PIPE (TAIL PIPE), NOT USED
999
RUBBER BUFFER BRACKET TO SUPPORT
999
RUBBER BUFFER COVERING TO FRAME
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
