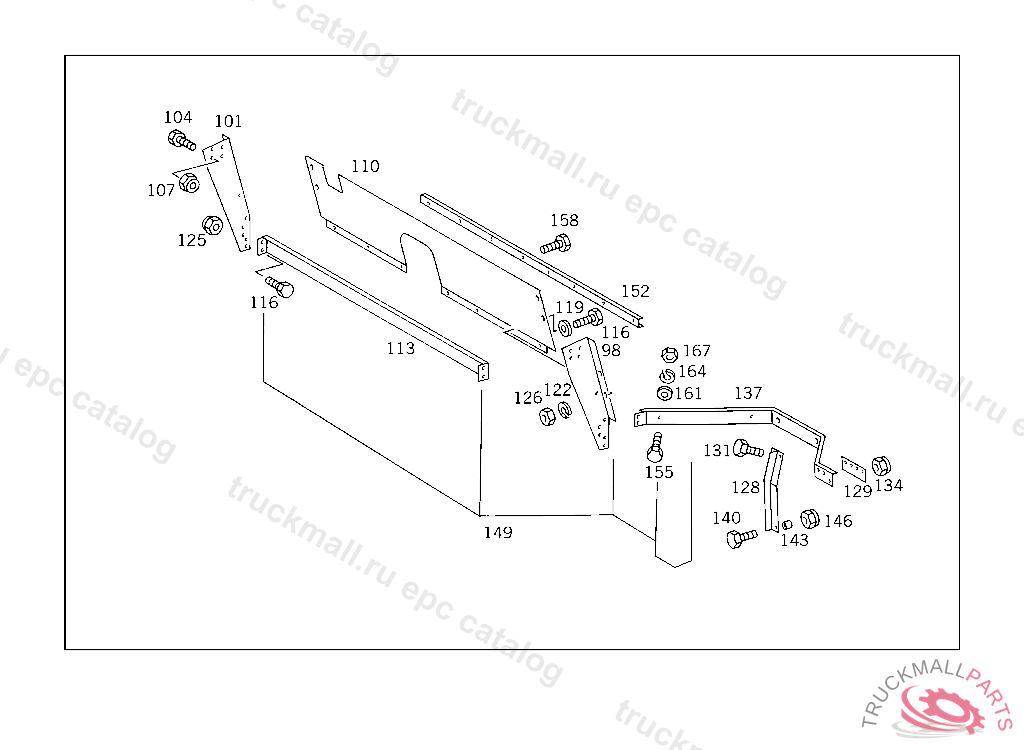

Поз.
Артикул
Описание
98
BRACKET CENTRAL PANELLING,LEFT
101
BRACKET CENTRAL PANELLING,RIGHT
104
SCREW , Replaced By: N304017008021
107
NUT , Replaced By: N913004008001
110
COVERING CENTRAL PANELLING
113
COVERING CENTRAL PANELLING
116
SCREW , Replaced By: N304017008016
116
SCREW , Replaced By: N304017008021
116
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
119
WASHER BRACKET TO CROSS MEMBER
122
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
125
NUT , Replaced By: N913004008001
126
NUT , Replaced By: N304032008006
128
131
SCREW , Replaced By: N304017008021
131
SCREW PIPE CLAMP
134
NUT , Replaced By: N913004008001
137
PANELLING SIDE PART,FRONT LEFT
140
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
140
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
SCREW , Replaced By: N304017008016
143
BUSHING , Replaced By: A6732410050
143
BUSHING COOLING WATER LINE TO TRANSMISSION
146
NUT , Replaced By: N913004008001
149
MUD APRON
152
RAIL FENDER FLAP, TO BE ADAPTED DURING ASSEMBLY
155
SCREW , Replaced By: N304017008021
158
SCREW , Replaced By: N304017008034
161
WASHER BRACKET TO CROSS MEMBER
164
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
167
NUT , Replaced By: N304032008006
