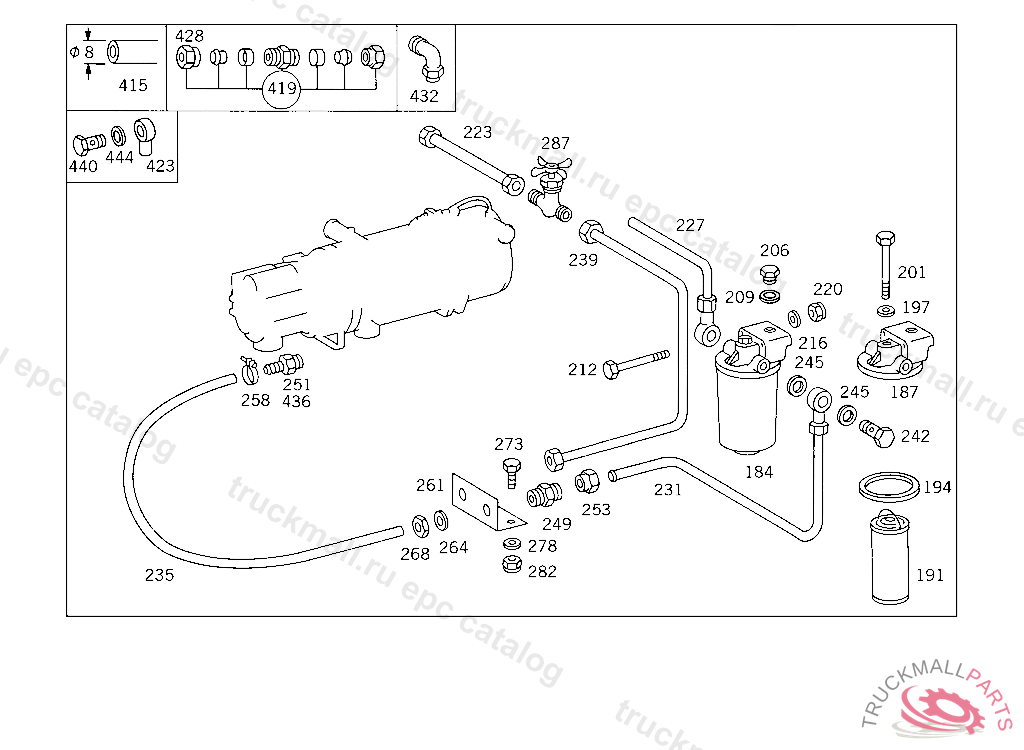

Поз.
Артикул
Описание
184
FILTER
187
FILTER HEAD
191
FILTER ELEMENT ,D 031294
194
SEAL RING ,D 031246
197
SEAL RING SCREW PLUG
201
SCREW , Replaced By: N304014008009
206
SCREW PLUG , Replaced By: N007604014110
206
SCREW PLUG FUEL TANK
209
SEAL RINGTO 000 553 03 05,000 553 18 05,
212
SCREW MOUNTING AND RAIL TO LEAF SPRING
216
WASHER , Replaced By: N009021010209
220
NUT , Replaced By: N910113010000
223
PIPE LINE FEED AND RETURN
227
PIPE LINE FEED
231
PIPE LINE FEED
235
HOSE LEAK LINE, ORDER BY THE METER
239
PIPE LINE RETURN
242
HOLLOW SCREW
245
SEAL RING FUEL TANK
249
FITTING
251
FITTING RETURN LINE
253
UNION NUT RETURN
258
CLAMP LINE MOUNTING
261
ANGLE FUEL LINE BRACKET
264
WASHER , Replaced By: N000125015019
268
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
273
SCREW , Replaced By: N304017006020
278
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
282
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
287
VALVE
415
HOSE. PLASTIC PIPE FROM AIR RESERVOIR TO FITTING, ORDER BY THE METER
415
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
419
FITTING (PARTS KIT),LINE RUPTURE
423
BANJO UNION HEATING CONNECTION,K 169122
428
UNION NUT RETURN
432
ELBOW FITTING
436
FITTING RETURN LINE
440
HOLLOW SCREW , Replaced By: N915036010108
440
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
444
SEAL RING FUEL LINE TO FEED PUMP
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT BALL PIVOT TO LEVER
999
SCREW TAIL LAMP TO BRACKET
999
PUMP HEATING WATER
999
PIPE LINE FROM OIL COOLER TO FEED HOSE CONNECTION
999
SEAL , Replaced By: A0018351764
