Поз.
Артикул
Описание

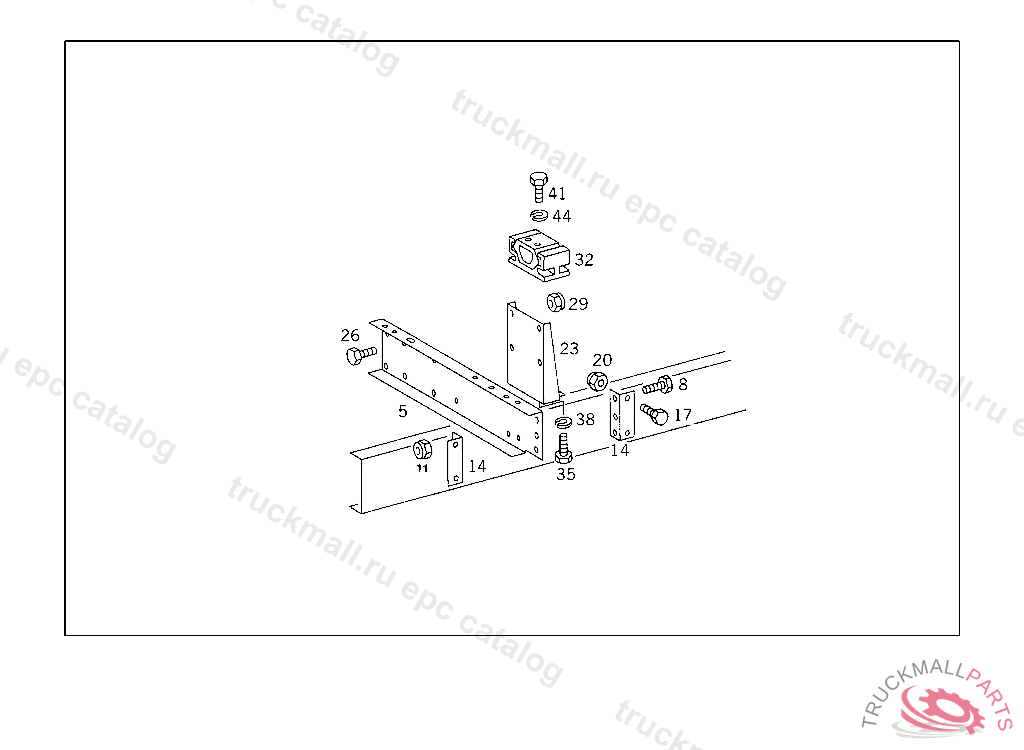

5
SUPPORT ENGINE FRONT SUSPENSION
8
SCREW , Replaced By: N308676012026
11
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
14
MOUNTING PLATE ENGINE SUPPORT TO SIDE MEMBERS
17
SCREW CONSOLE TO SIDE MEMBER
20
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
23
BEARING BRACKET FRONT RUBBER MOUNTING
26
SCREW CONSOLE TO SIDE MEMBER
29
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
32
RUBBER MOUNTING REAR
32
RUBBER MOUNTING REAR
35
SCREW CONSOLE TO SIDE MEMBER
38
LOCK WASHER FITTING TO BRACKET
41
SCREW BRACKET TO SIDE MEMBER
44
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
