Поз.
Артикул
Описание

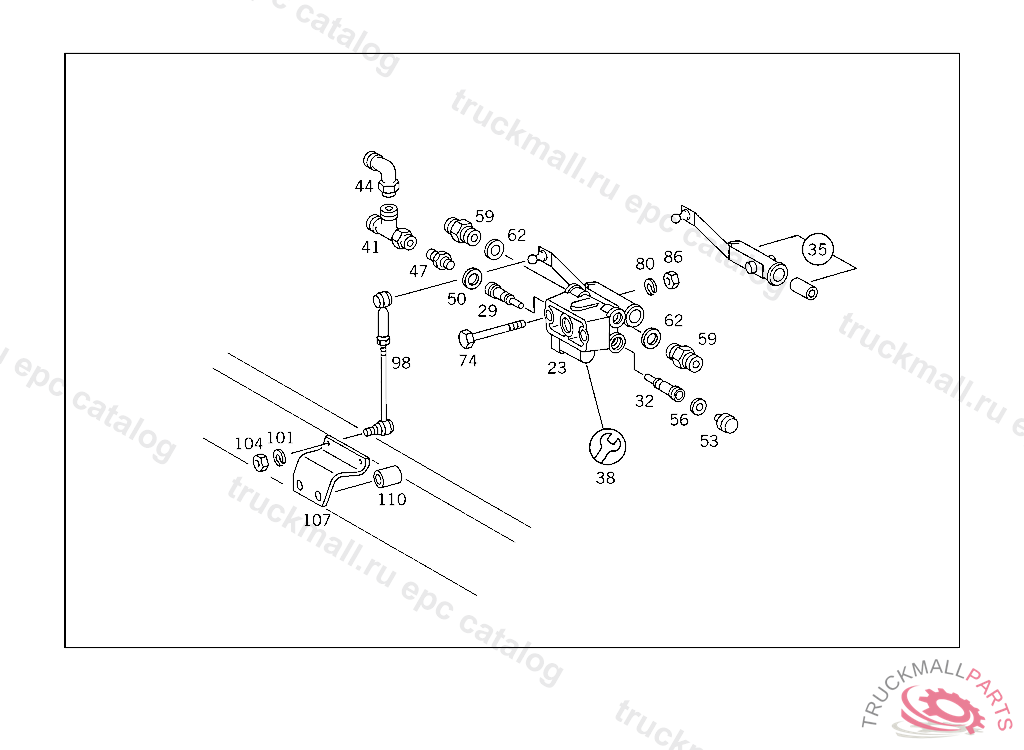

23
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
29
VALVE INTAKE
32
VALVE EXHAUST
32
VALVE , Replaced By: A0003282125
35
LEVER , Replaced By: A0003200127, +001A0003280014
35
LEVER (PARTS KIT)
38
REPAIR KIT
38
REPAIR KIT , Replaced By: A0003200258
41
FITTING , Replaced By: A0009909970
41
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
44
FITTING TWO-WAY VALVE,CONNECTIONS: "1","2"
44
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
47
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
50
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
53
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
56
SEAL RING LINE CONNECTION
59
FITTING LINE CONNECTION, Replaced By: N000000006446
62
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
74
SCREW VALVE TO BRACKET, Replaced By: N304014008002
80
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
86
NUT , Replaced By: N304032008006
98
ROD FRONT AXLE SELF-LEVELLING DEVICE
101
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
104
NUT , Replaced By: N304032008006
107
BEARING BRACKET OPERATING ROD TO FRONT AXLE
110
BUSHING OPERATING ROD TO FRONT AXLE
999
SHAFT87 MM
999
HOLLOW SCREW HEATING CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
