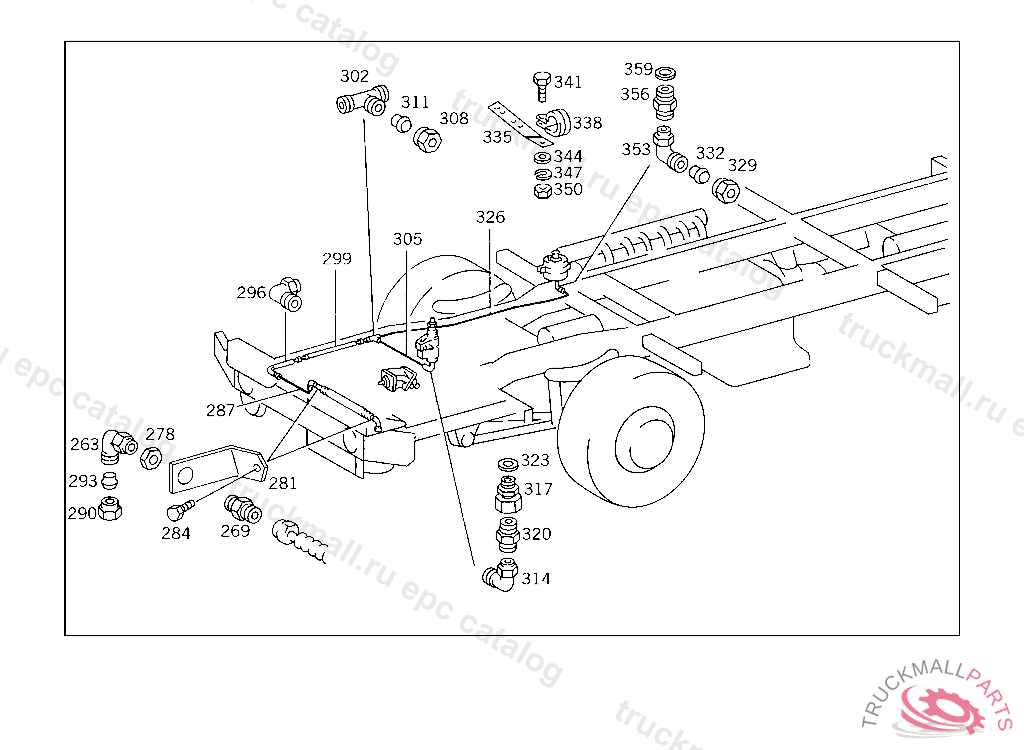

Поз.
Артикул
Описание
263
ELBOW FITTING LINE CONNECTION
269
FITTING LINE TO OIL RADIATOR
278
NUT BRACKET TO SIDE MEMBER
281
BRACKET OIL COOLER,LEFT
281
BRACKET OIL COOLER,RIGHT
284
SCREW , Replaced By: A0099900101
284
SCREW , Replaced By: N000933008337
287
TUBE RETURN, FROM OIL COOLER TO HOSE 18X12 MM
290
NUT18 MM
293
SEAL CONE LINE TO OIL RADIATOR
296
ELBOW FITTING LINE CONNECTION
299
HOSE FROM T-FITTING TO OIL COOLER
302
T-FITTING T-FITTING
305
TUBE FROM T-FITTING TO THERMOSTAT 18X2 MM
308
NUT18 MM
311
SEAL CONE LINE TO OIL RADIATOR
314
ELBOW FITTING LINE CONNECTION
317
FITTING COOLING WATER LINE TO THERMOSTAT
320
FITTING OIL LINE TO FAN THERMOSTAT
323
SEAL RING FILLER CAP
326
TUBE RETURN, FROM T-FITTING TO OIL TANK 18X2 MM
329
NUT18 MM
332
SEAL CONE LINE TO OIL RADIATOR
335
BRACKET RETURN LINE TO SUBSTRUCTURE,950496
338
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
341
SCREW , Replaced By: N304017008021
344
WASHER , Replaced By: N000125008443
347
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
350
NUT , Replaced By: N304032008006
353
ELBOW FITTING LINE CONNECTION
356
FITTING RETURN LINE TO T-FITTING
359
SEAL RING TEMPERATURE GAUGE SENDER UNIT
999
FITTING , Replaced By: A0029906171
999
V-BELT , Replaced By: A3829970392
999
PULLEY BELT TIGHTENER PULLEY
999
BRACKET AIR DUCT
999
HUB
999
TUBE FEED, FROM CONNECTOR II TO FAN THERMOSTAT,950497
999
BRACKET FEED,CENTRAL
999
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
999
WASHER , Replaced By: N000125015019
999
SCREW BRACKET TO SIDE MEMBER
999
CONNECTION FITTING , Replaced By: A0049971772
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
