Поз.
Артикул
Описание

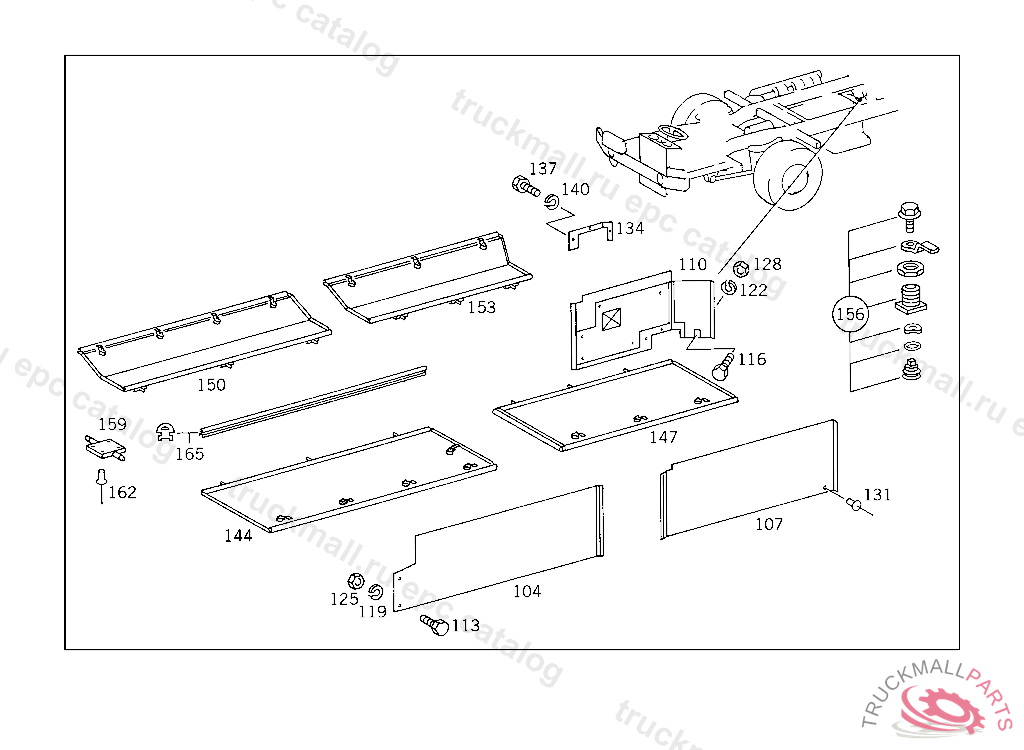

104
PANELLING SIDE PART,FRONT LEFT
107
PANELLING LATERAL REAR LEFT
110
PANELLING LATERAL REAR RIGHT
113
SCREW PUMP TO BRACKET
113
SCREW , Replaced By: N304017006016
116
SCREW , Replaced By: N304017008021
119
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
122
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
125
NUT BALL PIVOT TO LEVER
128
NUT , Replaced By: N304032008006
131
RIVET SIDE PANELLING TO SUPPORT AND TO RAILS
134
COVERING EXHAUST PIPE
137
SCREW , Replaced By: N304017006020
140
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
144
PANELLING BOTTOM,CENTRAL FRONT
147
PANELLING
150
PANELLING BOTTOM RIGHT FRONT
153
PANELLING
156
LATCH
159
PIN
162
RIVET4.8X12.7 MM
162
RIVET4.8 X 15.5 MM
162
RIVET REFLECTOR TO BRACKET
165
PLASTIC SECTION1984 MM
