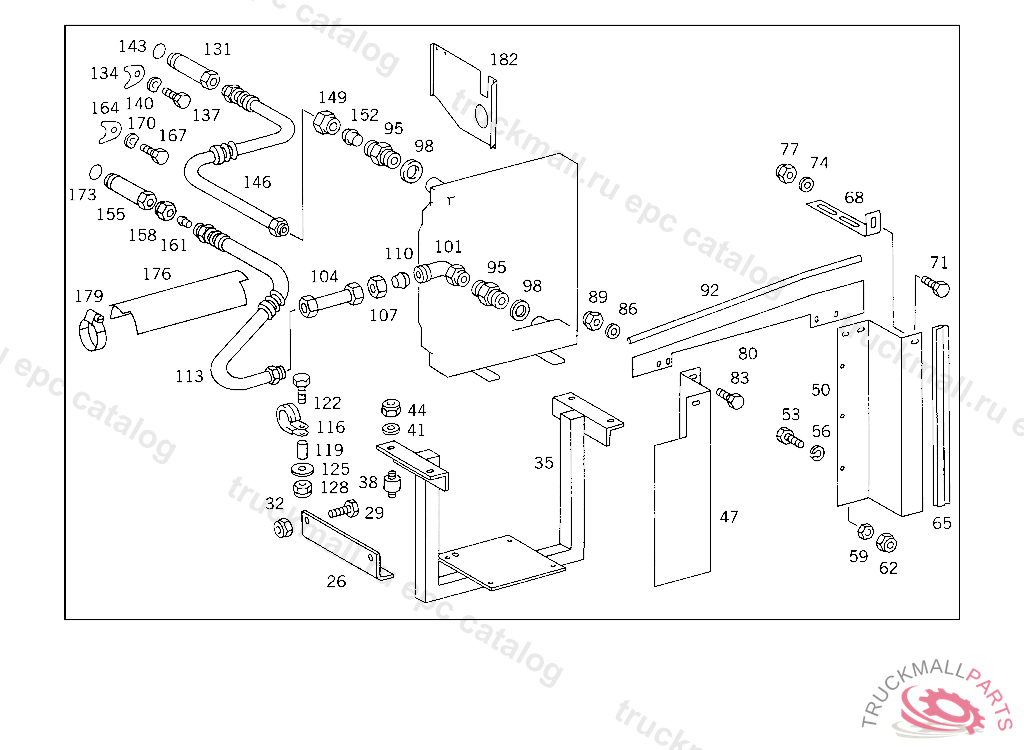

Поз.
Артикул
Описание
26
BRACKET RADIATOR BASE FRAME
29
SCREW END PIECE TO EXHAUST PIPE M 10X25
32
NUT , Replaced By: N910113010000
35
BRACKET OIL COOLER TO FRAME
38
SUSPENSION BRACKET TO RADIATOR
41
WASHER , Replaced By: N000125008443
44
NUT , Replaced By: N913004008001
47
AIR BAFFLE REAR
50
AIR BAFFLE FRONT
53
SCREW SUPPORT TO FENDER
53
SCREW , Replaced By: N304017008018
56
WASHER , Replaced By: N000125008443
59
NUT , Replaced By: N304032008006
62
NUT , Replaced By: N913004008001
65
EXPANSION PLUG AIR BAFFLE TO RADIATOR, ORDER BY THE METER
68
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
71
SCREW , Replaced By: N304017008021
74
WASHER , Replaced By: N000125008443
77
NUT , Replaced By: N913004008001
80
AIR BAFFLE TOP
83
SCREW PUMP TO BRACKET
83
SCREW , Replaced By: N304017006016
86
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
89
NUT , Replaced By: N913004006001
92
PLASTIC SECTION AIR BAFFLE TO RADIATOR BASE FRAME, ORDER BY THE METER
95
FITTING FEED AND RETURN LINES TO OIL COOLER
98
SEAL RING SPEEDOMETER DRIVE
101
FITTING OIL LINE TO OIL COOLER
104
GUIDE TUBE OIL LINE CONNECTION
107
UNION NUT , Replaced By: A0019901354
110
SEAL CONE LINE CONNECTION M 28
110
GLAND , Replaced By: A0019901367
113
HOSE FEED LINE
116
CLAMP HOSE TO COOLING WATER PIPE
119
BUSHING FEED LINE TO BRACKET
122
SCREW , Replaced By: N304017008040
125
WASHER , Replaced By: N000125008443
128
NUT , Replaced By: N913004008001
131
GUIDE TUBE FEED, FROM TRANSMISSION TO HOSE
134
BRACKET RETURN LINE
137
SCREW , Replaced By: N304017008034
140
SPRING WASHER , Replaced By: N000137008212
143
SCREW CONNECTION FEED LINE TO TRANSMISSION
146
HOSEOELKUEHLER - VERB. ROHR, TO BE ADAPTED DURING ASSEMBLY
149
UNION NUT , Replaced By: A0019901354
152
SEAL CONE LINE CONNECTION M 28
152
GLAND , Replaced By: A0019901367
155
GUIDE TUBE RETURN, FROM HOSE TO TRANSMISSION
158
UNION NUT , Replaced By: A0019901354
161
SEAL CONE LINE CONNECTION M 28
161
GLAND , Replaced By: A0019901367
164
BRACKET RETURN LINE
167
SCREW , Replaced By: N304017008034
170
SPRING WASHER , Replaced By: N000137008212
173
SEAL RING FEED LINE TO TRANSMISSION
176
PROTECTIVE PLATE TRANSMISSION COOLER HEAT SHIELD
179
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
182
PANELLING LATERAL REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
