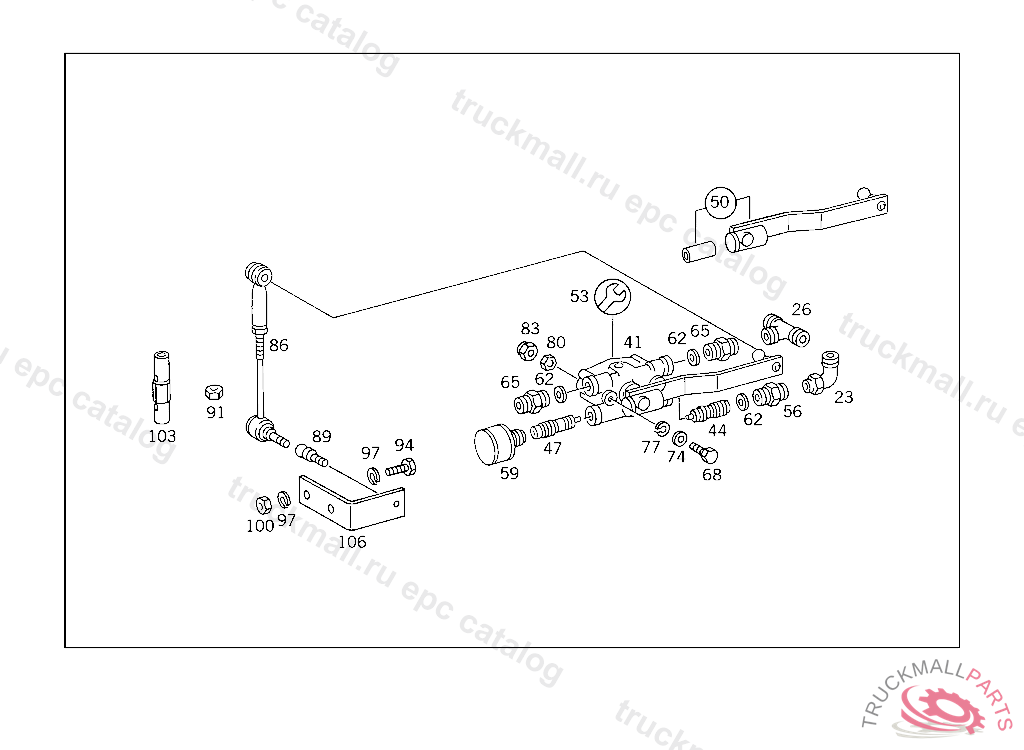

Поз.
Артикул
Описание
23
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
26
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
41
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
41
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
41
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
44
VALVE INTAKE
47
VALVE EXHAUST
50
LEVER (PARTS KIT)
53
REPAIR KIT
56
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
59
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
62
SEAL RING LINE CONNECTION
65
FITTING LINE CONNECTION, Replaced By: N000000006446
68
SCREW VALVE TO BRACKET, Replaced By: N304014008002
68
SCREW MASTER CYLINDER TO BRACKET
74
WASHER , Replaced By: N000125008443
77
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
80
NUT , Replaced By: N304032008006
83
RIVETED NUT BRACKET TO CROSS MEMBER
86
ROD LEVEL ADJUSTMENT VALVE CONTROL
89
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
91
NUT , Replaced By: N304032008006
94
SCREW CLAMP TO BRACKET AND TO PIPE
97
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
97
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
100
NUT , Replaced By: N304032008006
103
TURNBUCKLE OPERATING ROD TO REAR AXLE
106
BRACKET OPERATING ROD TO FRONT AXLE
999
LEVER , Replaced By: A0003200127, +001A0003280014
999
SHAFT87 MM
