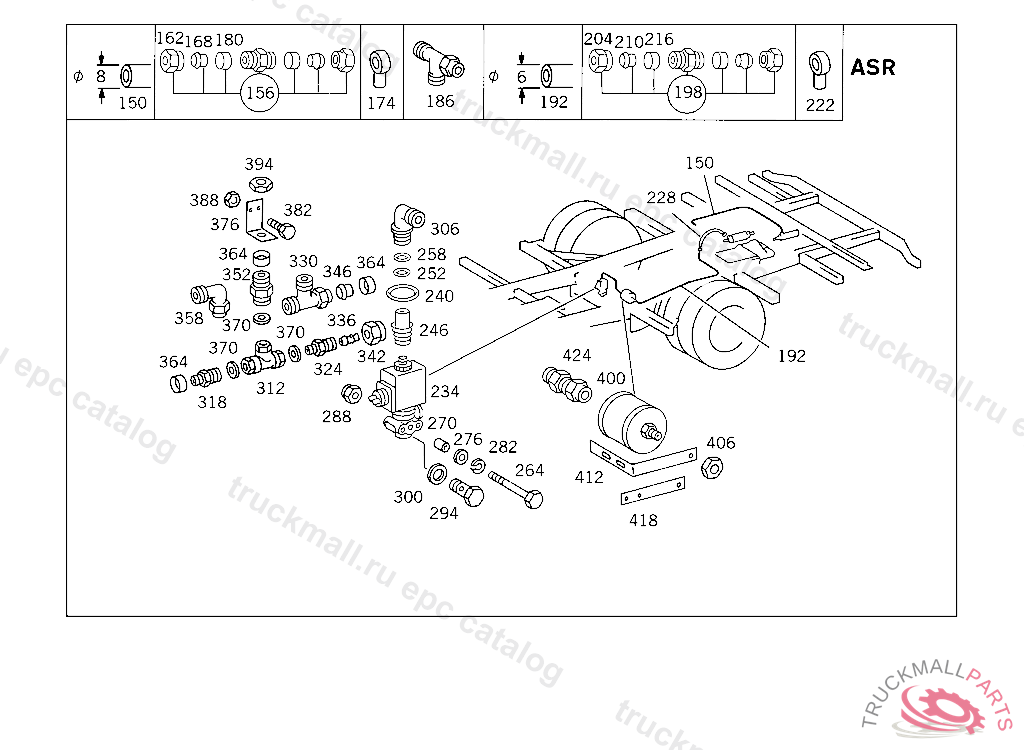

Поз.
Артикул
Описание
150
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
150
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
150
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
156
FITTING (PARTS KIT),LINE RUPTURE
162
UNION NUT LINE CONNECTION
168
GLAND LINE CONNECTION
174
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
180
NOZZLE
186
FITTING , Replaced By: A0009909970
186
FITTING LINE CONNECTION
186
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "10"
192
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
192
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
192
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
198
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
204
UNION NUT
210
GLAND , Replaced By: A0019901667
216
SLEEVE LEAK LINE
222
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
228
BRAKE HOSE AT CYLINDER, TO BE ADAPTED DURING ASSEMBLY
228
HOSE , Replaced By: A3074290035, +001A0019909871, +001A0029906071
234
VALVE (3/2-WAY SOLENOID VALVE) WABCO
240
SEAL RINGWABCO
246
VALVE PARTWABCO
252
SEAL RINGWABCO
258
SEAL RINGWABCO
264
SCREW MASTER CYLINDER TO BRACKET
270
BUSHING PUMP TO FRAME SIDE MEMBER
276
WASHER , Replaced By: N000125008443
282
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
288
NUT , Replaced By: N304032008006
294
HOLLOW SCREW HEATING CONNECTION
300
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
306
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
312
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
318
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
324
FITTING SHUTTLE VALVE
330
T-FITTING EXHAUST-BRAKE POWER CYLINDER
330
FITTING , Replaced By: A0019900170
336
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
342
UNION NUT LINE CONNECTION, Replaced By: N000000006239
346
GLAND , Replaced By: A0019901967
352
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
358
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
364
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
370
O-RING CHECK VALVE TO AIR RESERVOIR
376
BRACKET (SHUTTLE VALVE)
382
SCREW CAB FLOOR COVERING M 6X25
388
NUT , Replaced By: N913004006001
394
NUT BRACKET TO SIDE MEMBER
400
RESERVOIR 3/2-WAY VALVE BREATHING
406
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
412
BRACKET FITTING
418
BRACKET RESERVOIR
424
FITTING FITTING TO BRACKET
999
T-FITTING 3/2-WAY VALVE
999
CLAMPING RING
