Поз.
Артикул
Описание

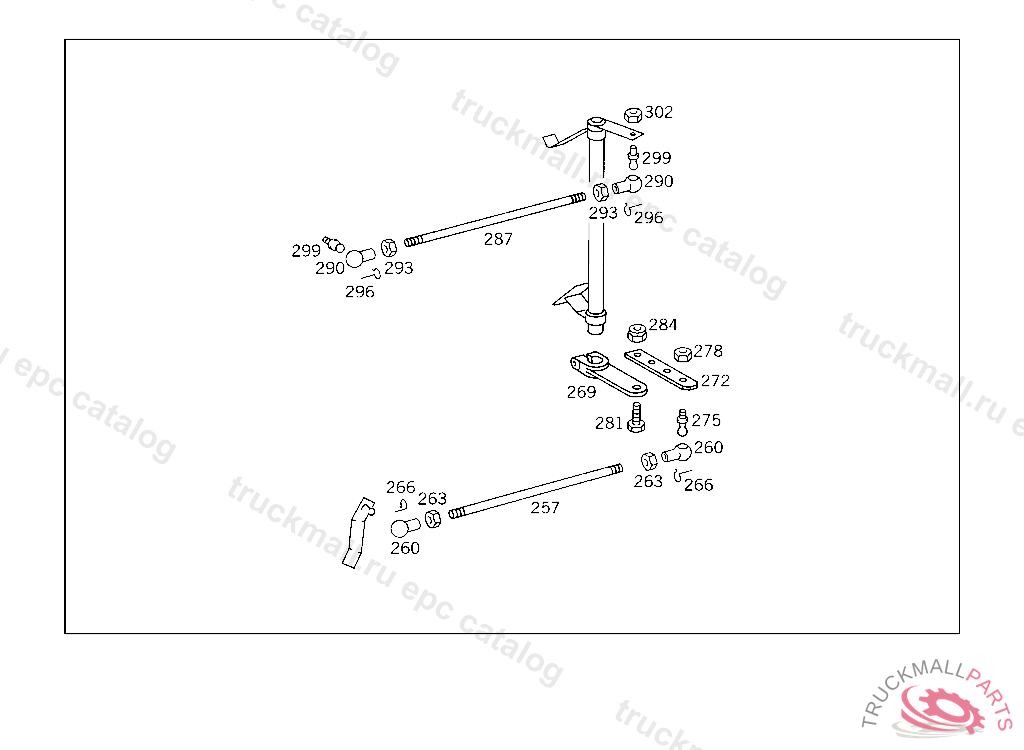

257
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
260
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
263
NUT BALL PIVOT TO LEVER
266
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
269
LEVER MODULATOR INTERMEDIATE SHAFT, TO BE ADAPTED DURING ASSEMBLY
272
PLATE EXTENSION
275
BALL PIVOT ACCELERATOR PEDAL,4 859026
278
NUT BALL PIVOT TO LEVER
281
SCREW OIL LINE TO CRANKCASE
284
NUT , Replaced By: N913004006001
287
PULL ROD INJECTION PUMP CONTROL 600 MM
290
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
293
NUT BALL PIVOT TO LEVER
296
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
299
BALL PIVOT ACCELERATOR PEDAL,4 859026
302
NUT BALL PIVOT TO LEVER
