Поз.
Артикул
Описание

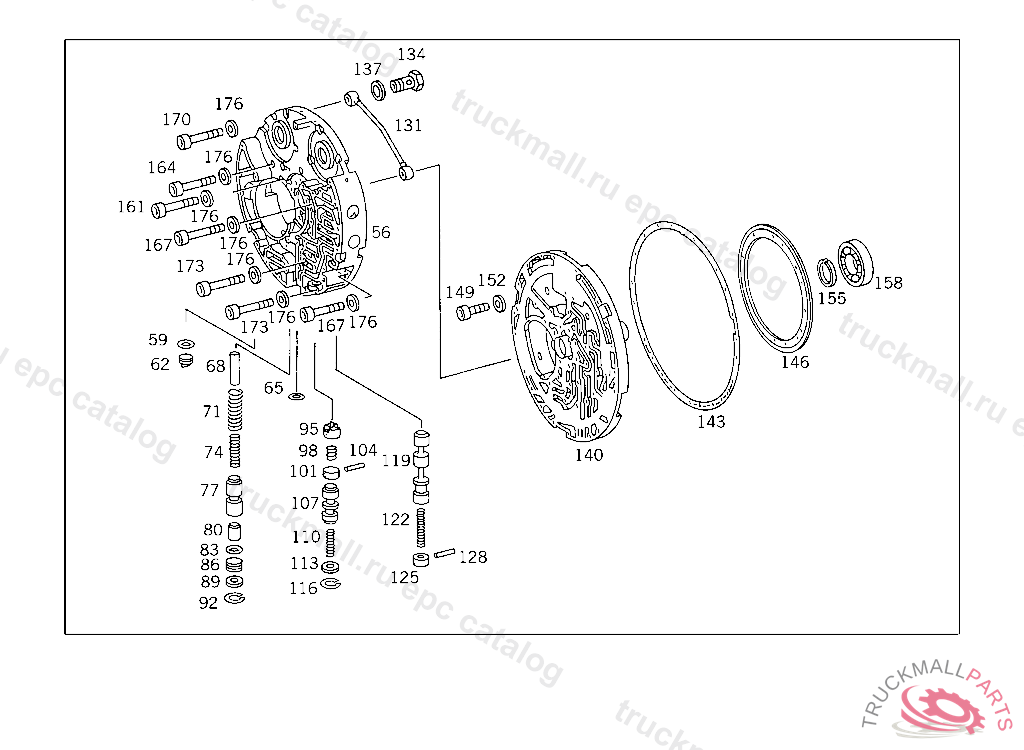

56
CONTROL PLATE
56
CONTROL PLATE , Replaced By: A0002761127
56
CONTROL PLATE , Replaced By: A0002760827
56
CONTROL PLATE , Replaced By: A0002760627
56
CONTROL PLATE , Replaced By: A0002760427
59
SEAL RING , Replaced By: A0229978248
59
SEAL RING RETARDER CONTROL PRESSURE
62
SPACER WASHER CONTROL PLATE,BOTTOM
65
SEAL RING CONTROL PLATE,BOTTOM
68
SPACER TUBE MAIN PRESSURE VALVE
71
SPRING MAIN PRESSURE VALVE
74
SPRING MAIN PRESSURE VALVE
77
PISTON MAIN PRESSURE VALVE
80
PISTON MAIN PRESSURE VALVE
83
SEAL RING RETARDER CONTROL PRESSURE
83
SEAL RING , Replaced By: A0229978248
86
SPACER WASHER MAIN PRESSURE VALVE
89
FITTED WASHER MAIN PRESSURE VALVE
89
WASHER , Replaced By: N000988022006
92
LOCK RINGTO 000 431 94 14,000 431 96 14
95
PISTON LUBRICATION PRESSURE
98
SPRING LUBRICATION PRESSURE VALVE
101
SPACER RING LUBRICATION PRESSURE VALVE
104
PIN OIL COOLER CHANGE-OVER VALVE
107
PISTON CONVERTER PRESSURE MAINTAINING
110
SPRING CONVERTER PRESSURE MAINTAINING
113
WASHER VIBRATION ABSORBER TO BRACKET
113
WASHER , Replaced By: N000433010510
116
LOCK RING CONVERTER PRESSURE MAINTAINING
119
PISTON OIL COOLER CHANGE-OVER VALVE
119
PISTON , Replaced By: A0002779831, +001A0002641393
122
SPRING OIL COOLER CHANGE-OVER VALVE
125
SPACER RING OIL COOLER CHANGE-OVER VALVE
128
PIN OIL COOLER CHANGE-OVER VALVE
131
PIPE
134
HOLLOW SCREW OIL LINE
137
SEAL RING PNEUMATIC VALVE
140
FLANGE
140
FLANGE , Replaced By: A0002770649
140
FLANGE , Replaced By: A0002770549
140
FLANGE , Replaced By: A0002510045
140
FLANGE , Replaced By: A0002770249
140
FLANGE , Replaced By: A0002770349
143
INTERMEDIATE PLATE
146
SPACER RING
149
SCREW SPACER RING TO FLANGE
149
SCREW , Replaced By: A0009843429
152
WASHER
155
SEAL RING REAR FLANGE
155
RECTANGULAR SECTION RING , Replaced By: A0249974648
155
SEAL RING , Replaced By: A0249974648
155
SEAL RING , Replaced By: A0189979548
155
SEAL RING , Replaced By: N034118000001
158
GROOVED BALL BEARING REAR FLANGE
161
SCREW SPRING STOP
164
HEXALOBULAR BOLT. SCREWM 8X45
164
SCREW , Replaced By: N000000001448
167
SCREW CONTROL PLATE TO TRANSMISSION CASE M 8X55
170
SCREW VALVE TO SHIFT CASE
173
SCREW
176
WASHER BRACKET TO CROSS MEMBER
