Mercedes A0804903840 - ДЕРЖАТЕЛЬ

LU 1920 699.004

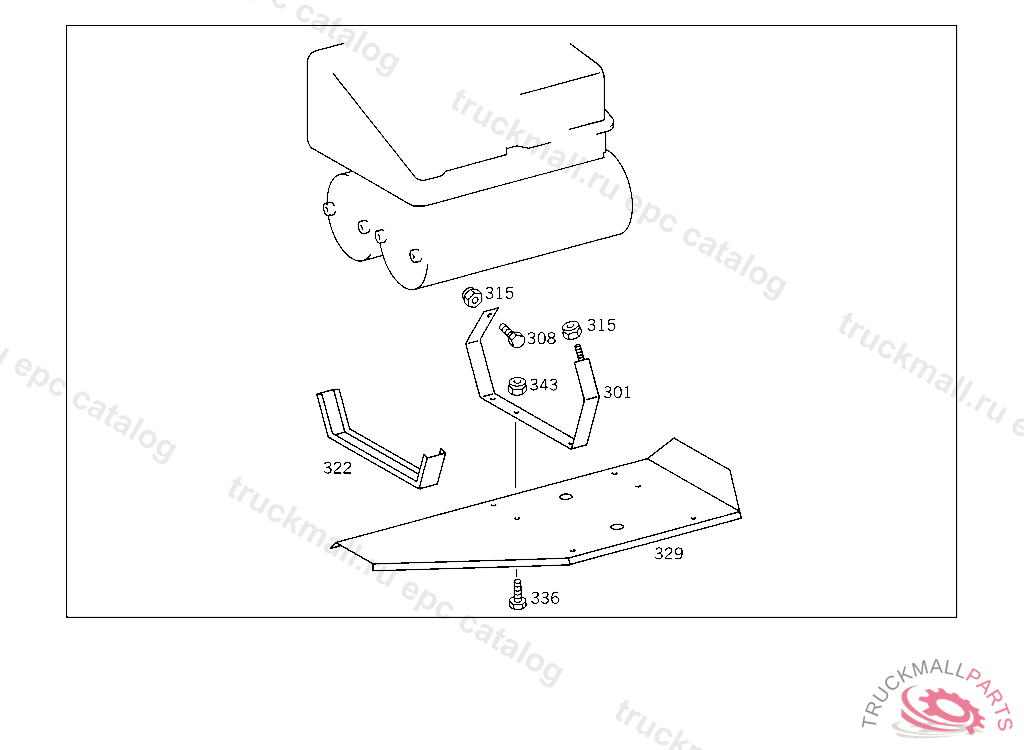

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 EXHAUST SYSTEM WITH PARTICLE FILTER IL.5

Поз.
Артикул
Описание
301
A0804903840
BRACKET EXHAUST PIPE TO SUPPORT
308
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
315
N910113010000
NUT STRAP TO BRACKET
315
N913004010008
NUT , Replaced By: N910113010000
322
A3604750020
PAD EXPANSION TANK TO SUPPORT
329
A6994929830
PROTECTIVE PLATE
336
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
336
N000933008212
SCREW , Replaced By: N304017008016
343
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
343
N913004008004
NUT , Replaced By: N913004008001
999
A0004910070
STUD
999
A0005452184
CONNECTOR HEATER PLUG
999
A0009950246
CLAMPING RING
