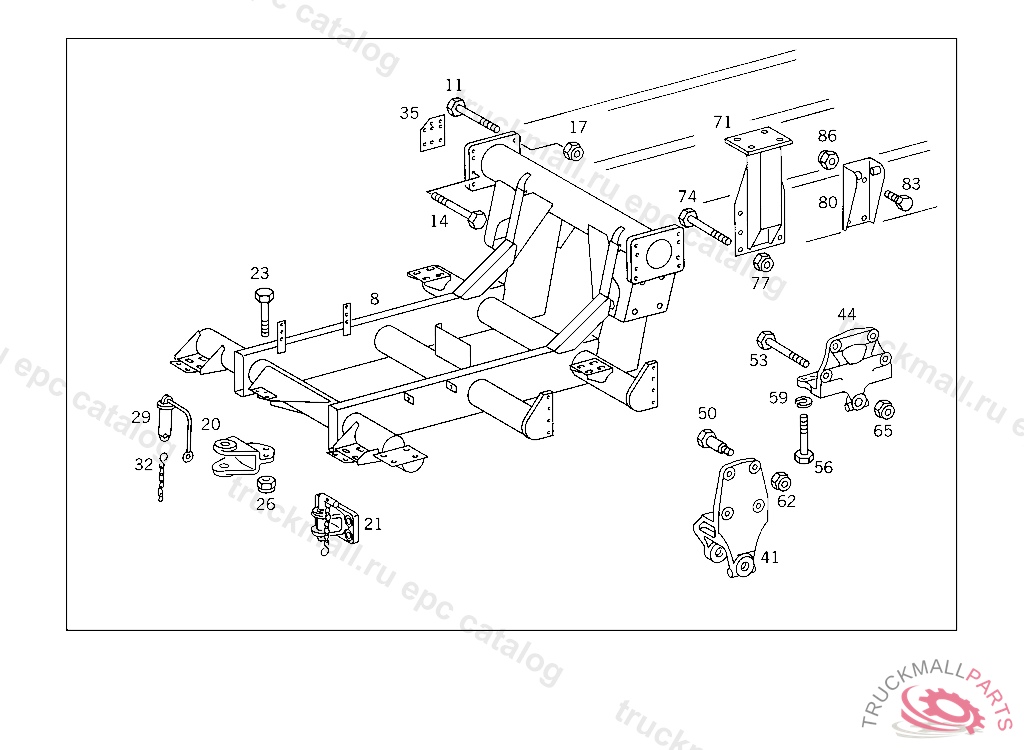

Поз.
Артикул
Описание
8
11
SCREWM 16X18X26X48
14
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
14
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
14
SCREW , Replaced By: N308676016005
14
SCREW , Replaced By: N308676016007
17
NUT , Replaced By: N910113016001
17
NUT CONSOLE TO SUPPORT
21
COUPLING (TOW BAR COUPLING) ROCKINGER TYP SK 4
23
SCREW BRACKET TO CAB CONSOLE,K 035197
26
NUT BRACKET TO SIDE MEMBER
26
NUT , Replaced By: N910113014001
35
41
FRONT SPRING BRACKET FRONT
44
FRONT SPRING BRACKET REAR
50
SCREWM 16X18X26X48
50
SCREWM 16X18X18X40
53
SCREW APPARATUS SUPPORT TO FRAME
53
SCREW GUSSET PLATE TO SIDE MEMBER M 14X28
53
SCREW , Replaced By: A9429901304
56
SCREW , Replaced By: N308676014012
56
SCREW SUPPORT TO SIDE MEMBER M 14X45
59
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
62
NUT , Replaced By: N910113016001
62
NUT CONSOLE TO SUPPORT
65
NUT STEERING SUPPORT TO FRAME
65
NUT , Replaced By: N910113014000
71
74
SCREW CONSOLE TO FRAME
74
SCREW , Replaced By: N308676016020
77
NUT , Replaced By: N910113016001
77
NUT CONSOLE TO SUPPORT
80
83
SCREW SUPPORT TO SIDE MEMBER
86
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
86
NUT , Replaced By: N910113012003
