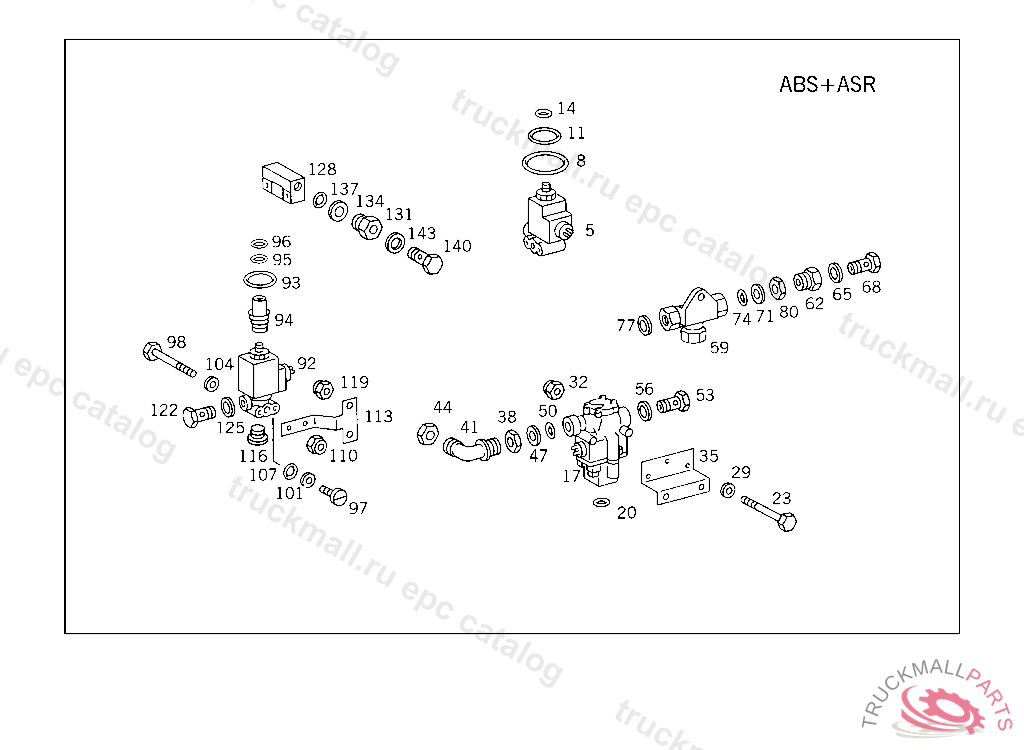

Поз.
Артикул
Описание
5
VALVE (3/2-WAY SOLENOID VALVE) EKS
5
VALVE , Replaced By: A0049975736
8
SEAL RINGWABCO
11
SEAL RINGWABCO
14
SEAL RINGWABCO
17
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
17
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044296144
20
SEAL RING , NOT USED
23
SCREW AT SIDE MEMBER M 8X145
23
SCREW REAR AXLE REGULATING SOLENOID VALVE
29
WASHER EXHAUST MUFFLER TO STRAP
29
WASHER , Replaced By: N000125008443
32
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
32
NUT , Replaced By: N913004008001
35
BRACKET REGULATING SOLENOID VALVE
38
NUT REGULATING SOLENOID VALVE,CONNECTIONS: "10,20"
41
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
44
NUT CHECK VALVE TO AIR RESERVOIR
47
THRUST RING CHECK VALVE TO AIR RESERVOIR
47
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
50
O-RING CHECK VALVE TO AIR RESERVOIR
53
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
56
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
59
VALVE , Replaced By: A0044291544
59
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
62
FITTING SHUTTLE VALVE,CONNECTION: "20"
62
FITTING LINE CONNECTION
65
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
68
HOLLOW SCREW FUEL LINE TO FEED PUMP
68
HOLLOW SCREW , Replaced By: N915036010108
71
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
71
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
71
THRUST RING CHECK VALVE TO AIR RESERVOIR
71
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
74
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
74
O-RING CHECK VALVE TO AIR RESERVOIR
77
SEAL RING FUEL LINE TO FEED PUMP
80
NUT CHECK VALVE TO AIR RESERVOIR
80
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
92
VALVE (3/2-WAY SOLENOID VALVE) WABCO
93
SEAL RINGWABCO
94
VALVE PARTWABCO
95
SEAL RINGWABCO
96
SEAL RINGWABCO
97
SCREW TO PLUG THE FREE CONNECTIONS
98
SCREW 3/2-WAY VALVE TO BRACKET
98
SCREW , Replaced By: N304014008009
101
SEAL RINGBOSCH
104
WASHER EXHAUST MUFFLER TO STRAP
104
WASHER , Replaced By: N000125008443
107
SEAL RING VALVE TO VALVE
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
NUT , Replaced By: N913004008001
113
BRACKET 3/2-WAY SOLENOID VALVE
116
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
116
SCREW PLUG , Replaced By: N000908012009
119
NUT END PIECE TO EXHAUST PIPE
122
HOLLOW SCREW HEATING CONNECTION
125
SEAL RING LINE CONNECTION
128
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
131
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
134
THRUST RING CHECK VALVE TO AIR RESERVOIR
134
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
137
O-RING CHECK VALVE TO AIR RESERVOIR
140
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
143
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
