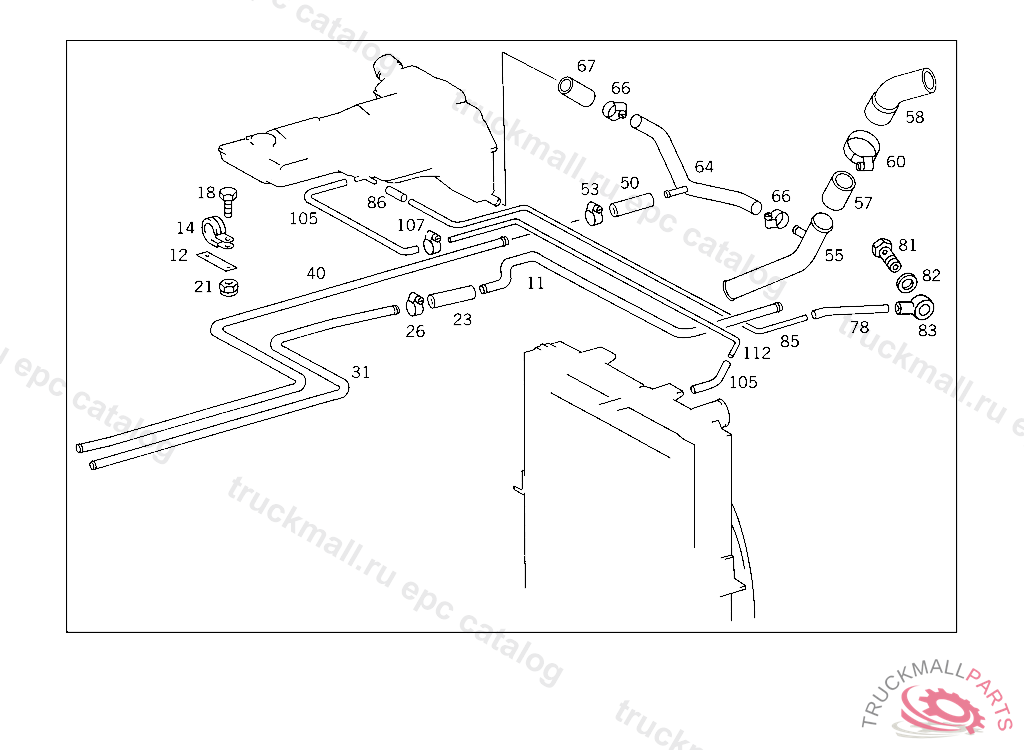

Поз.
Артикул
Описание
11
LINE HEATING FEED
12
BRACKET AT CROSS MEMBER
12
BRACKET , Replaced By: A6674710541
14
CLAMP BRAKE HOSE BRACKET
18
SCREW CAB FLOOR COVERING M 6X25
21
NUT PUMP TO BRACKET
21
NUT , Replaced By: N913004006001
23
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
26
CLAMP , Replaced By: N000000000667
31
LINE HEATING FEED
40
LINE HEATING RETURN
50
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
53
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
53
CLAMP , Replaced By: N000000000667
55
LINE FROM ENGINE TO WXPANSION TANK, FIRST PART
58
HOSE FROM RADIATOR TO COOLING WATER PIPE,4 829878
58
HOSE , Replaced By: A3815010882
60
CLAMP HOSE FASTENING 50-70X13 MM
60
CLAMP , Replaced By: N000000000672
64
LINE FROM ENGINE TO EXPANSION TANK,2ND PART
66
CLAMP25-40X13 MM
66
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
67
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
78
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
78
HOSE , ORDER BY THE METER, Replaced By: N900271012018
81
HOLLOW SCREW OIL LINE TO TRANSMISSION
82
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
83
BANJO UNION DE-AERATION LINE TO THERMOSTAT
85
BREATHER PIPE FROM THERMOSTAT TO EXPANSION TANK
86
HOSE ,K 055044
105
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
107
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
107
CLAMP , Replaced By: N916017011001
112
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK
