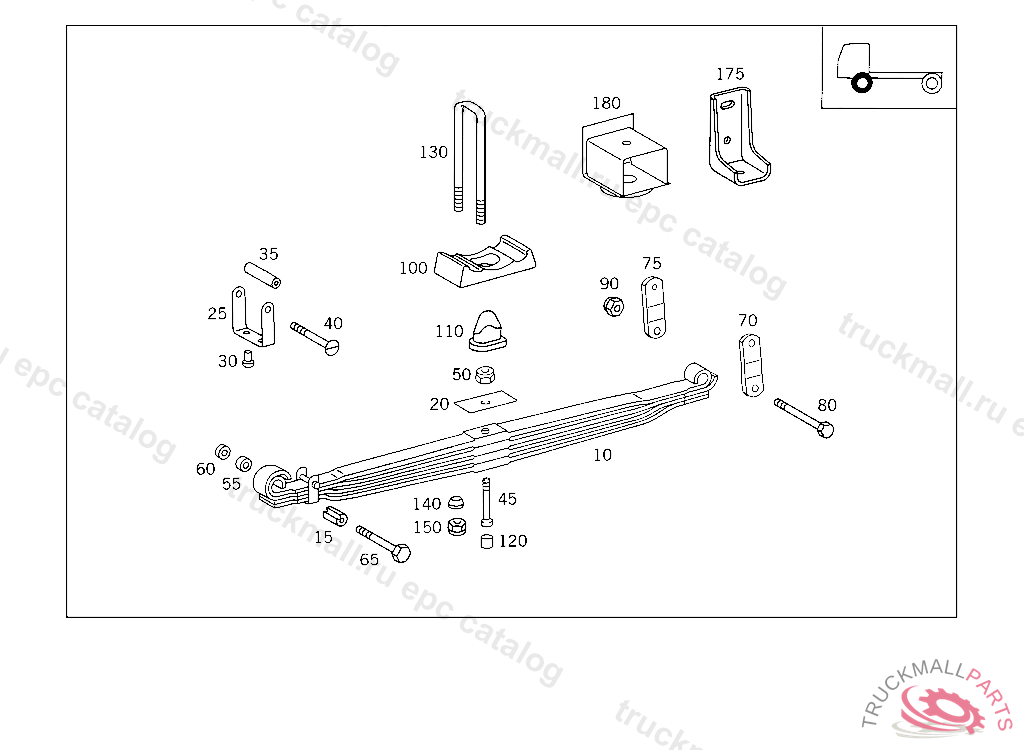

Поз.
Артикул
Описание
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
15
RUBBER MOUNTING
15
RUBBER MOUNTING
20
SHIM
25
SPRING CLAMP ,5 484790
30
RIVET SPRING CLAMP TO SPRING LEAF
35
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
40
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
45
SPRING BOLT
50
HEXAGON NUT. NUT SPRING BOLT
55
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
60
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
65
HEXAGON HEAD BOLT. SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET
70
SHACKLE OUTSIDE
75
SHACKLE INSIDE
80
SCREW ENGINE MOUNTING TO CONSOLE M 18X150
80
SCREW REAR SPRING AND SHACKLE TO SPRING BRACKET
90
NUT TORSION BAR TO BEARING BRACKET,5 904661
100
PLATE FRONT SPRINGS TO FRONT AXLE
110
HELPER SPRING FRONT SPRING STOP
120
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 38 MM
130
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
140
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
150
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
175
BRACKET RUBBER SPRING
180
BRACKET FRONT SPRING STOP
999
SHIM FRONT SPRINGS TO FRONT AXLE
