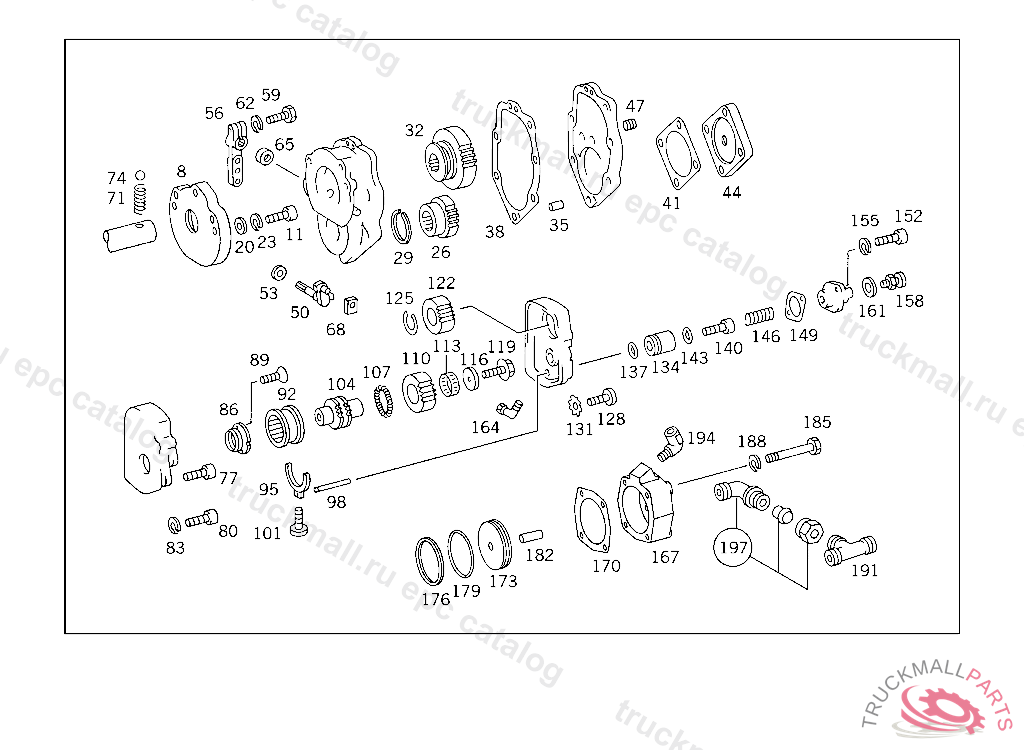

Поз.
Артикул
Описание
8
HOUSING P.T.O. TO 000 260 38 05
11
SCREW , Replaced By: A0009909612
11
SCREW , Replaced By: A0002640971
11
SCREW P.T.O. TO TRANSMISSION TO 000 260 76 05
11
SCREW P.T.O. TO TRANSMISSION TO 000 260 38 05
11
SCREW P.T.O. TO TRANSMISSION TO 000 260 39 05
20
WASHER INTERMEDIATE SPEED STOP
20
WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
23
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
26
GEAR 19 TEETH TO 000 260 38 05
29
SNAP RING FRONT GEAR TO 000 264 76 05
32
GEARZ21,TO 000 260 38 05
35
DOWEL PIN COVER TO P.T.O. CASE
38
GASKET COVER TO P.T.O. CASE TO 000 260 38 05
41
GASKET COVER TO P.T.O. CASE TO 000 260 38 05
44
COVER CASE,REAR TO 000 260 38 05
47
SCREW PLUG GEARSHIFT COVER
50
SHAFT (SHIFTING SHAFT) TO 000 260 38 05
53
WASHER SHIFTING SHAFT TO 000 260 38 05
56
SHIFT LEVER P.T.O. CONTROL TO 000 220 39 05
59
SCREW SHIFT LEVER TO SHAFT TO 000 260 38 05
62
LOCK WASHER SHIFT LEVER TO SHAFT TO 000 260 38 05
65
SEAL RING SHIFT LEVER TO SHAFT TO 000 260 38 05
68
SLIDE SHIFTING FORK TO 000 260 38 05
71
SPRING P.T.O. CONTROL TO 000 260 38 05
74
BALL P.T.O. CONTROL TO 000 260 38 05
77
SCREW P.T.O. TO TRANSMISSION TO 000 260 76 05
80
SCREW P.T.O. TO TRANSMISSION TO 000 260 76 05
80
SCREW , Replaced By: A0002640971
83
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 76 05
86
OIL GUIDE RING P.T.O. TO 000 260 75 05
89
SCREW COVER TO P.T.O. CASE TO 000 260 75 05
92
SLIDING COLLAR P.T.O. CONTROL TO 000 260 76 05
95
SHIFTING FORK P.T.O. CONTROL TO 000 260 76 05
98
PISTON
101
SCREW SHIFT LEVER TO SHAFT TO 000 260 76 05
104
WHEEL BEARING P.T.O. TO 000 260 76 05
107
SPRING FRONT GEAR TO 000 260 76 05
110
GEAR P.T.O. TO 000 260 76 05
113
NEEDLE BEARING OUTPUT GEAR TO 000 260 76 05
116
SHIM REAR GEAR TO 000 260 76 05
119
SCREW REAR GEAR TO 000 260 76 05
122
GEAR P.T.O. TO 000 264 76 05
125
SNAP RING FRONT GEAR TO 000 264 76 05
128
SCREW COVER TO P.T.O. CASE TO 000 264 76 05
131
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
131
WASHER , Replaced By: N912004010102
134
PISTON P.T.O. CONTROL TO 000 264 76 05
137
SEAL RING PISTON TO 000 264 76 05
140
SCREW SIDE COVER TO SHIFT CASE
143
SEAL RING PISTON TO 000 264 76 05
146
SPRING PISTON TO 000 264 76 05
149
GASKET COVER TO P.T.O. CASE TO 000 264 76 05
152
SCREW COVER TO P.T.O. CASE TO 000 264 76 05
155
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
155
WASHER , Replaced By: N912004008102
158
BREATHER P.T.O. TO 000 264 76 05
161
SEAL RING IN PLACE OF BACK-UP LIGHT SWITCH
164
ELBOW FITTING , Replaced By: A0019905171
167
COVER
170
GASKET P.T.O. NEUTRAL POSITION CYLINDER TO 000 260 38 05
173
PISTON NEUTRAL POSITION TO 000 260 38 05
176
LOCK NEUTRAL POSITION TO 000 260 38 05,000 260 39 05
179
SEAL RING NEUTRAL POSITION TO 000 260 38 05,000 260 39 05
182
PIN NEUTRAL POSITION TO 000 260 38 05,000 260 39 05
185
SCREW NEUTRAL POSITION CYLINDER TO TRANSMISSION TO 000 260 38 05
188
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
191
T-FITTING 4/2-WAY VALVE
194
ELBOW FITTING CONTROL VALVE
197
ELBOW FITTING CONNECTION TO NEUTRAL POSITION CYLINDER TO 000 260 38 05
999
P.T.O. , Replaced By: A0002607605, +001A0019809902
999
P.T.O. PUMP CONNECTION 22/18
