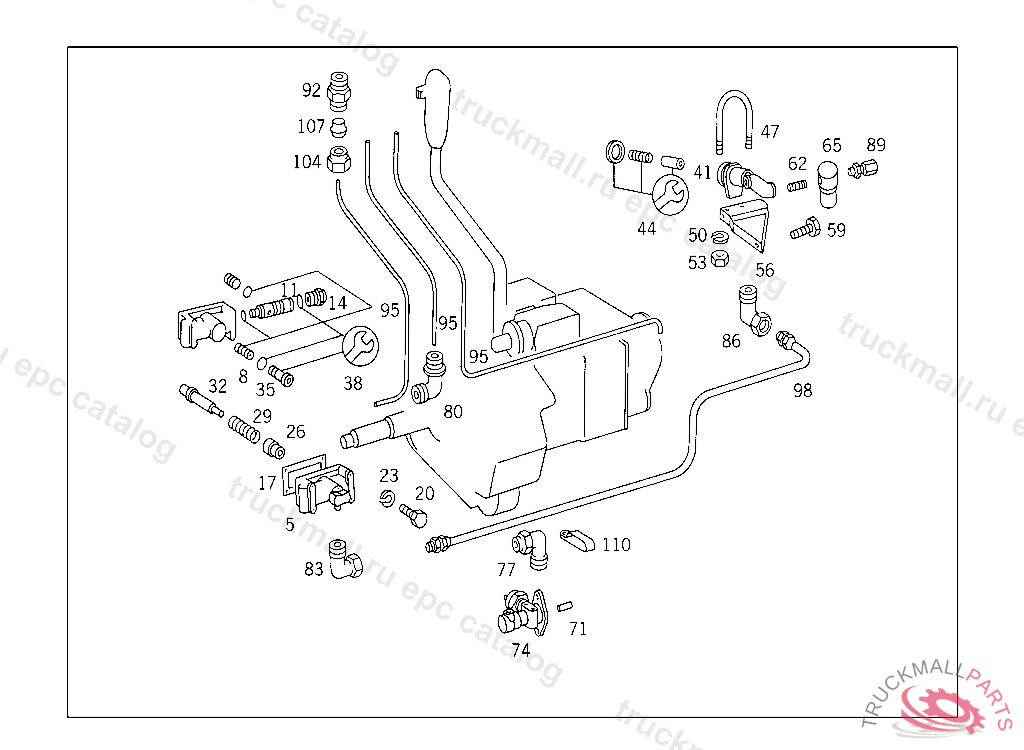

Поз.
Артикул
Описание
5
VALVE (CONTROL VALVE)
5
VALVE , Replaced By: A0012600757
5
VALVE , Replaced By: A0012601457
5
VALVE , Replaced By: A0012608557
5
VALVE , Replaced By: A0012608557
8
SEAL RING VALVE
11
PISTON CONTROL VALVE
14
COVER CONTROL VALVE
17
GASKET TRANSMISSION CASE
20
SCREW VALVE TO TRANSMISSION
23
LOCK WASHER TOP COVER TO SHIFT CASE, L.H.D., FROM TRANSMISSION N 047285, R.H.D.:FROM TRANSMISSION N 042437 (MANUFACTURED IN FRANCE)
26
GUIDE SLEEVE SHIFTING SHAFT
29
PRESSURE SPRING SHIFTING FORK
32
DETENT CONTROL VALVE
35
BREATHER CONTROL VALVE
38
REPAIR KIT CONTROL VALVE
41
AIR CLEANER CONTROL VALVE
44
REPAIR KIT AIR CLEANER
47
CLAMP AIR CLEANER
50
LOCK WASHER TOP COVER TO SHIFT CASE, L.H.D., FROM TRANSMISSION N 047285, R.H.D.:FROM TRANSMISSION N 042437 (MANUFACTURED IN FRANCE)
53
NUT BRACKET TO BRACKET
56
BRACKET AT TRANSMISSION CASE REAR COVER
59
SCREW BRACKET TO COMPRESSOR, TO BE ADAPTED DURING ASSEMBLY
62
FITTING AIR CLEANER
65
PRESSURE REGULATOR TRANSMISSION
71
PIN NEUTRAL POSITION, L.H.D., FROM TRANSMISSION N 047285, R.H.D.:FROM TRANSMISSION N 042437 (MANUFACTURED IN FRANCE)
74
SWITCH NEUTRAL POSITION SWITCH
77
ELBOW FITTING CONNECTION TO NEUTRAL POSITION CYLINDER TO 000 260 38 05
80
ELBOW FITTING 3/2-WAY VALVE
80
ELBOW FITTING , Replaced By: A0019905171
83
ELBOW FITTING CONTROL VALVE
86
ELBOW FITTING SHIFTING CYLINDER COVER
89
FITTING AIR COMPRESSOR CONNECTION
92
FITTING LINE MOUNTING
92
FITTING , Replaced By: A0029908568
95
LINE , Replaced By: A3469971382
95
LINE , Replaced By: A3469971382
95
HOSE SHIFT LEVER VALVE,SPLITTER CYLINDER, CONTROL VALVE 1120 MM,5 091743
98
LINE FAST GROUP
98
LINE , Replaced By: A0002670849
104
NUT , Replaced By: A0029908568
104
FITTING LINE MOUNTING
107
SEAL CONE LINE MOUNTING
110
CLAMP LINE TO BRACKET
999
REPAIR KIT CONTROL VALVE TO 001 260 85 57
