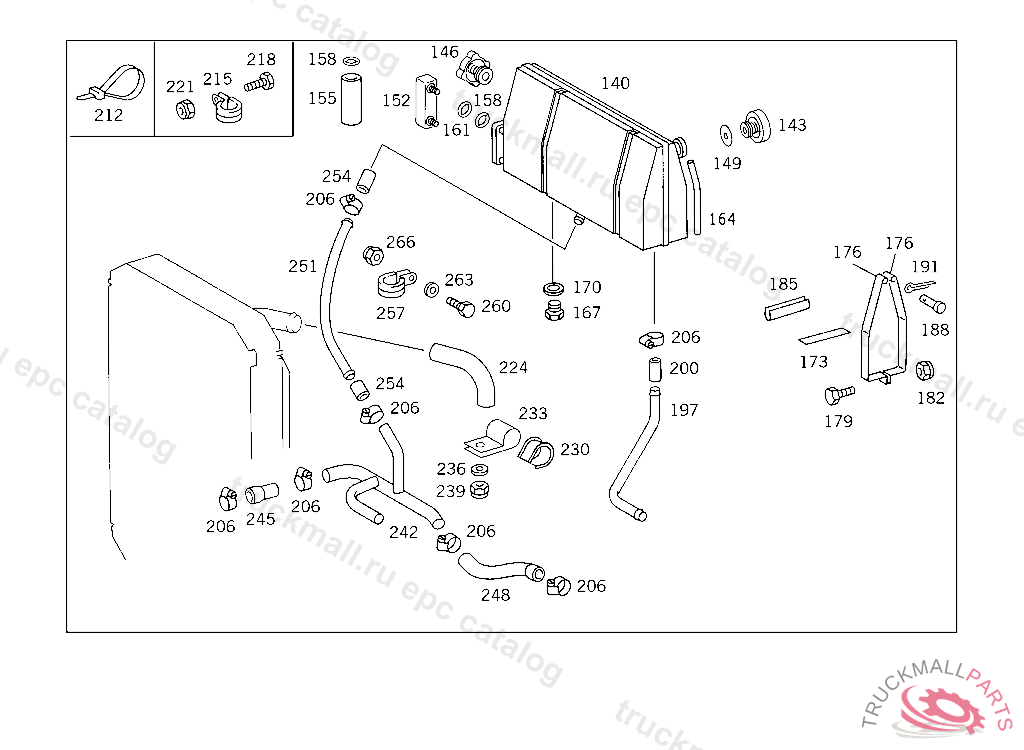

Поз.
Артикул
Описание
140
TANK EXPANSION TANK
140
TANK COOLING WATER EXPANSION
143
RADIATOR CAP FILLER NECK
146
RADIATOR CAP FILLER NECK
146
RADIATOR CAP FILLER NECK
149
GASKET O.D., 37 MM
149
GASKET O.D., 52 MM
152
SIGHT GLASSTO 357 500 10 49
155
SIGHT GLASSTO 357 500 10 49
158
SEAL RINGTO 357 500 10 49
161
SEAL RINGTO 357 500 10 49
164
HOSE OVERFLOW TO 357 500 10 49
167
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
170
SEAL RING WATER LEVEL SENSOR
173
SHIM EXPANSION TANK TO BRACKET
176
BRACKET STRAP TO EXPANSION TANK
176
BRACKET STRAP TO EXPANSION TANK
179
SCREW PIPE CLAMP
182
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
185
EDGE GUARD SECTION FRONT PANEL,339827 ORDER BY THE METER
188
PIN STRAP TO SUPPORT
191
COTTER PIN ROD TO INTERMEDIATE LEVER
197
200
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
200
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
206
CLAMP HOSE FASTENING 50-70X13 MM
206
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
206
CLAMP
212
LOOM TIE LINE MOUNTING 280 MM
215
CLAMP SUCTION LINE TO CROSS MEMBER
215
CLAMP LINE MOUNTING
215
CLAMP COOLING WATER LINE TO FIRE WALL
215
CLAMP DELIVERY AND SUCTION LINES TO FRAME
218
SCREW CAB FLOOR COVERING M 6X25
218
SCREW BRACKET TO CROSS CONNECTION STRUT
218
SCREW PUMP TO BRACKET
221
NUT PUMP TO BRACKET
221
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
224
MOLDED HOSE ,000561
230
PAD FEED LINE TO BRACKET
233
CLAMP FEED LINE TO BRACKET
236
WASHER EXHAUST MUFFLER TO STRAP
239
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
242
SEPARATOR (BUBBLE SEPARATOR)
245
HOSE FEED & RETURN LINES TO HEAT EXCHANGER EXCHANGER, TO BE ADAPTED DURING ASSEMBLY
248
HOSE AT ENGINE
251
COOLING WATER PIPE COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR
254
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
257
CLAMP SAFETY VALVE AT BRACKET
260
SCREW CAB FLOOR COVERING M 6X25
263
WASHER COMPRESSED AIR LINE TO BRACKET
263
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
266
NUT PUMP TO BRACKET
999
