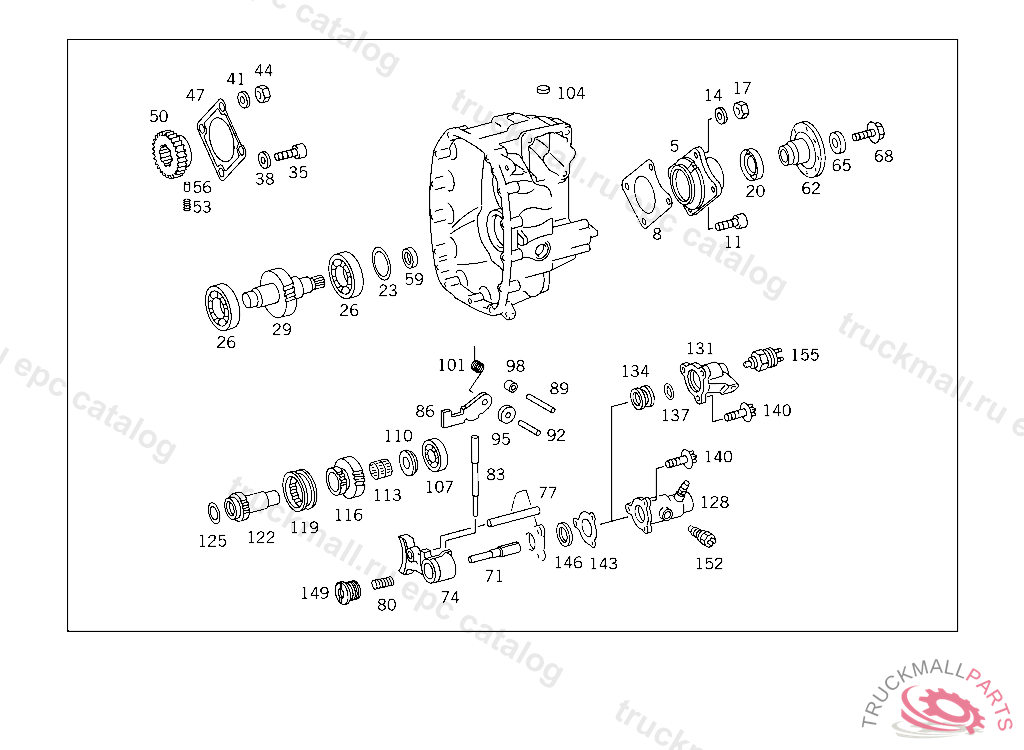

Поз.
Артикул
Описание
5
BEARING CAP DRIVE SHAFT,REAR
8
GASKET COVER TO P.T.O. CASE
8
GASKET COVER TO FLANGE
11
HEXALOBULAR BOLT COVER TO TRANSMISSION CASE M12X25
14
WASHER
17
NUT COVER TO FLANGE
20
SEAL RING DRIVE SHAFT,REAR
20
SEAL RING DRIVE SHAFT,REAR
23
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.10 MM
23
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.15 MM
23
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.50 MM
23
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.30 MM
26
TAPERED ROLLER BEARING COUNTERSHAFT,REAR
26
TAPERED ROLLER BEARING COUNTERSHAFT,REAR
26
TAPERED ROLLER BEARING BOTTOM
26
TAPERED ROLLER BEARING COUNTERSHAFT,REAR
29
DRIVE SHAFT
35
HEXALOBULAR BOLT COVER TO TRANSMISSION CASE M12X25
38
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
41
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
41
WASHER LEFT AND RIGHT CONSOLES TO CAB
44
NUT COVER TO FLANGE
47
GASKET , Replaced By: A3892640780
47
GASKET , Replaced By: A9702640180
47
GASKET COVER TO FLANGE
50
GEAR MEILLER PUMP CONNECTION
53
SPRING MEILLER PUMP CONNECTION
56
PIN MEILLER PUMP CONNECTION
59
SPACER RING
62
COUPLING FLANGE P.T.O.
65
WASHER FLANGE TO P.T.O.
68
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
71
SHIFTING ROD
74
SHIFTING FORK P.T.O.
77
CYLINDRICAL PIN SHIFTING FORK
80
SPRING P.T.O. CONTROL
83
PIN
86
PAWL
89
CLAMPING PIN GATE INDICATOR TO SHIFTING ROD,275875
92
CYLINDER PIN USED WITH MANUAL TRANSMISSION
95
WASHER PAWL LOCK
98
RING , Replaced By: N900055006402
101
SPRING PAWL LOCK
104
CAP. EXPANSION PLUG SHAFT
107
CYLINDR. ROLLER BEARING P.T.O.
107
CYLINDR. ROLLER BEARING P.T.O.
110
THRUST WASHER
113
NEEDLE BEARING P.T.O.
113
NEEDLE BEARING P.T.O.
116
GEAR , Replaced By: A1642640120
116
GEAR DRIVE GEAR
119
SLIDING COLLAR P.T.O.
122
FOLLOWER
125
SPACER WASHER P.T.O., AS REQUIRED 0.20 MM
125
SPACER WASHER P.T.O., AS REQUIRED 0.30 MM
128
CYLINDER SHIFTING CYLINDER
128
CYLINDER , Replaced By: A0002640527
128
CYLINDER SHIFTING CYLINDER
131
CYLINDER , Replaced By: A9702640427, +003A0019909622
131
CYLINDER SHIFTING CYLINDER
134
PISTON SHIFTING CYLINDER
137
SEAL RING P.T.O. CONTROL
140
HEXALOBULAR BOLT COUPLING FLANGE TO P.T.O. M8X50
140
SCREW , Replaced By: N000000000761
140
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X20
143
GASKET SHIFTING CYLINDER TO CASE
146
WASHER
149
BUSHING
152
SWITCH TORQUE REDUCER
152
SWITCH , Replaced By: A0015452709
155
SWITCH , Replaced By: A0015455709
155
SWITCH
155
SWITCH BACK-UP LIGHT SWITCH
999
DECALCOMANIA TO PLUG HYDRAULIC PUMP CONNECTION OPENING
999
COVER REAR P.T.O.
999
RETAINING RING ROD TO PEDAL PLATE
