Mercedes A0018309084 - ZB MAGNETVENTIL

O350 TOURISMO-RHD O 403-RHD EURO2 613.455

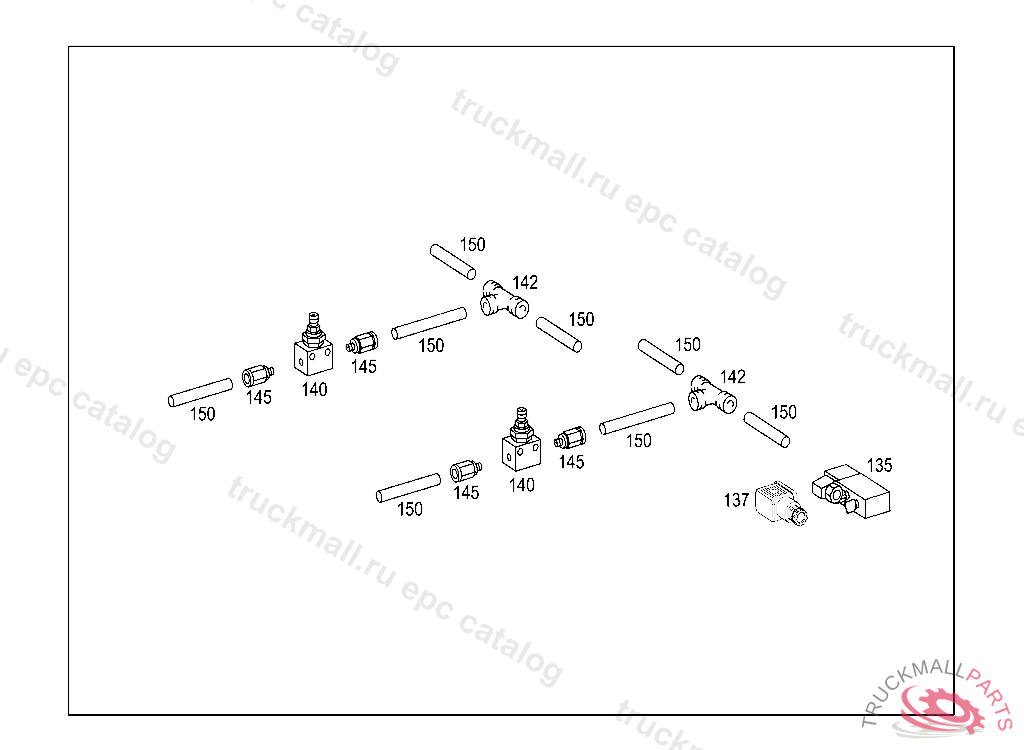

83 HEATING AND VENTILATION - 092 AIR CONDITIONER MAKE KONVEKTA IL. 4

Поз.
Артикул
Описание
135
A0008353320
CONTROL VALVE
135
A0018309084
VALVE (SOLENOID VALVE), ORDER ADDITIONALLY ALSO:A 000 547 01 10, Replaced By: A0008353320
137
A0005470110
CABLE CONNECTOR UP TO FACELIFTING TO A 001 830 90 84
140
A0018309184
VALVE (SHUT-OFF VALVE)
140
A0028309384
VALVE (SHUT-OFF VALVE) TO A 613 830 08 61
142
A0008352851
ADAPTER
145
A0008300425
PIPE SOCKET
150
A0008325223
HOSE6MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A6138320158
T-FITTING
999
A3735507138
SUPPORT , HALTERUNG KLIMAKOMPRESSOR FA.KONVEKTA
999
A0008306696
PIPE LINE
999
A0008306596
PIPE LINE
