Mercedes A0035458501 - SICHERUNGSDOSE,MEGA,

O350 TOURISMO-RHD O 403-RHD EURO2 613.455

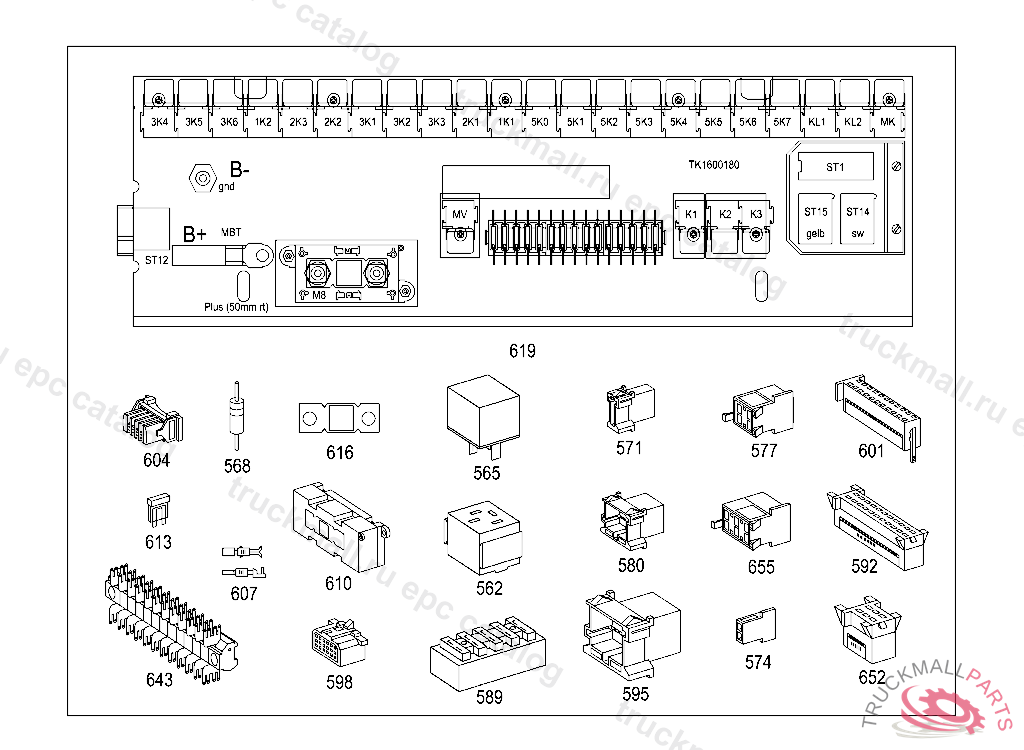

83 HEATING AND VENTILATION - 092 AIR CONDITIONER MAKE KONVEKTA IL. 14

Поз.
Артикул
Описание
562
A0008216365
CASE
565
A0018210047
RELAYTO A 628 830 44 61 / A 628 830 46 61
568
A0008210977
DIODE
571
A0005451629
RIGHT-ANGLE PLUG
574
A0005451729
PLUG HOUSING BIPOLAR
577
A0005451829
PLUG HOUSING 4-POLE
580
A0005451929
PLUG HOUSING 4-POLE
589
A0008210866
FUSE BOX
592
A0005452029
PLUG HOUSING 22-POLE
595
A0005452729
PLUG HOUSING 18-POLE
598
A0005450629
PLUG HOUSING 18-POLE
601
A0005452829
GASKET0.5-1.0 MM2
604
A0135450326
PIN BUSHING HOUSING PLUG CONNECTION HEATING WATER VALVE MIRAKEL 83.10M05746
604
A0008272826
PLUG , Replaced By: A0135450326
607
A0005451029
PLUG HOUSING , Replaced By: A0008220411
607
A0008220411
CONTACT PLATE
610
A0008211066
FUSE BOX MEGA-LOCK
613
N000000002811
FUSE MODULE20A,102668
613
N000000002808
FUSE MODULE8 A
613
N000000002809
FUSE MODULE10A,102668
613
N000000002812
FUSE MODULE25A,102668
613
Q7251159000
AUTOMATIC CUT-OUT25A
613
Q7251158000
AUTOMATIC CUT-OUT , Replaced By: N000000002811
613
Q7251156000
AUTOMATIC CUT-OUT , Replaced By: N000000002809
613
Q7251155000
AUTOMATIC CUT-OUT8A
616
A0035458501
LOCK100 A
619
A0005401272
RELAY UNIT AIR CONDITIONER
643
A0008211871
LEDGE
652
A0005453429
PLUG HOUSING 6-POLE
655
A0008216565
CASE 6-POLE
999
A6138320158
T-FITTING
999
A3735507138
SUPPORT , HALTERUNG KLIMAKOMPRESSOR FA.KONVEKTA
999
A0008306696
PIPE LINE
999
A0008306596
PIPE LINE
