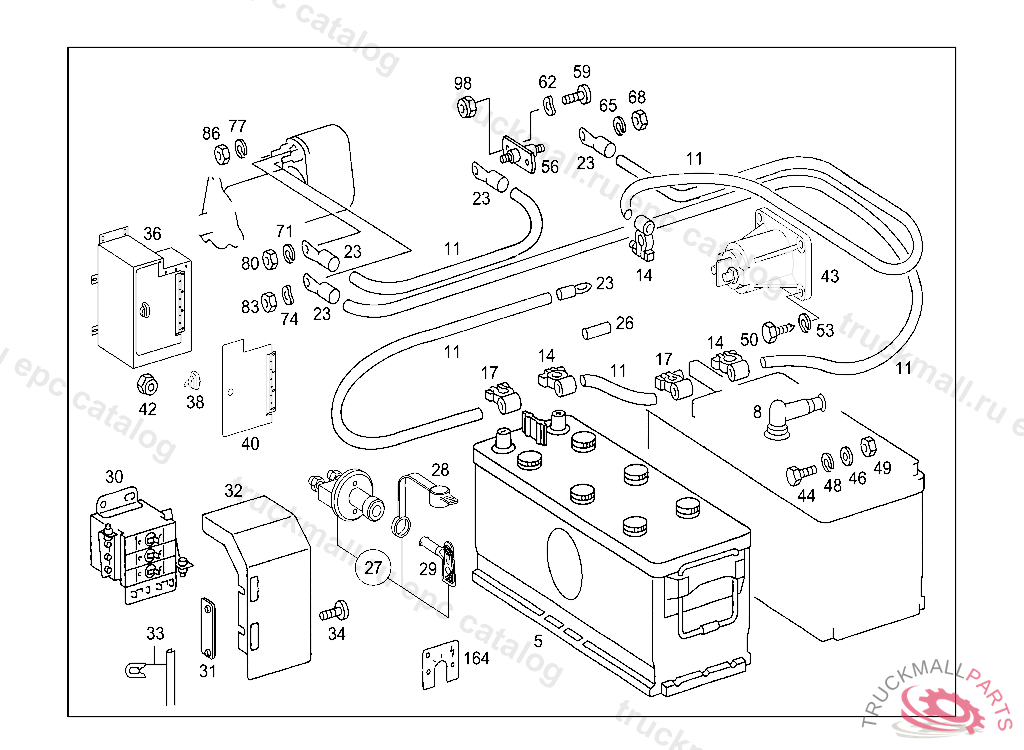

Поз.
Артикул
Описание
5
BATTERY
5
BATTERY , Replaced By: A0025413701
5
STARTER BATTERY TROPICAL VERSION 12 V / 220 AH
8
BOOT NEG. CABLE
11
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
14
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
17
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
23
CABLE SHOE BATTERY CABLE 12-70 MM
23
CABLE SHOEA 10-35
23
CABLE SHOE FROM BATTERY POS.POLE TO STARTING MOTOR
23
CABLE SHOE BATTERY CABLE 10-70 MM
23
CABLE SHOE
23
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
26
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
26
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
26
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
27
SWITCH ELECTRICAL COMPARTMENT,074035
27
SWITCH BATTERY CUT-OFF
28
CAP BATTERY MASTER SWITCH
29
KEY BATTERY MASTER SWITCH
30
SWITCH (SAFETY MASTER SWITCH)
30
SWITCH (SAFETY MASTER SWITCH)
30
SWITCH BATTERY CHANGE-OVER SWITCH
31
BRACKET (SAFETY MASTER SWITCH),227466, 227542233443
32
COVERING (SAFETY MASTER SWITCH),227466, 227542233443
32
COVERING (SAFETY MASTER SWITCH),227465, 227541
32
COVERING , Replaced By: A3568202112
33
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
34
SCREW PUMP TO BRACKET
36
COVERING (SAFETY MASTER SWITCH),233444
38
LOCK
40
COVER
42
NUT COVERING TO CAB FIRE WALL
43
RELAY (BATTERY MASTER SWITCH)
43
RELAY (BATTERY MASTER SWITCH)
44
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
46
WASHER RADIATOR TO RUBBER MOUNTING
46
WASHER GROUND CABLE
48
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
49
NUT BATTERY CABLE
50
TAPPING SCREW BATTERY MASTER SWITCH, NOT USED
53
LOCK WASHER RAIL TO BATTERY SUPPORT
56
CONNECTOR BATTERY CABLE
59
SCREW SHIFT CASE TO SLOTTED GATE
62
SPRING WASHER LICENSE PLATE TO BRACKET
62
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
65
LOCK WASHER FUSE
65
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
68
NUT BATTERY CABLE
71
LOCK WASHER FITTING TO BRACKET
74
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
74
LOCK WASHER FUSE
77
LOCK WASHER CABLE TO FUSE BOX
80
NUT BRACKET TO FRAME
83
NUT BATTERY CABLE
86
NUT SPRING-LOADED PUSH ROD
98
NUT COMPRESSED AIR LINE MOUNTING,5 908243
164
GUIDE SIGN BATTERY MASTER SWITCH
